🔧 Tucson - Timing Belt Replacement (Not Applicable)

Your Tucson’s 2.0L engine is built with a timing chain, not a timing belt. That means there is no scheduled “timing belt replacement” service like on older engines; the chain is lubricated by engine oil and is designed to last a long time.

Before I walk you through the correct repair, I need 1 quick detail: Did you mean the accessory/serpentine belt (the belt you can see on the outside of the engine), or are you having a timing chain problem (rattle on cold start, check-engine light, cam/crank correlation codes)?

Difficulty Level: Advanced (timing chain) / Beginner (serpentine belt) | Estimated Time: 6-10 hours (chain) / 0.5-1.0 hour (serpentine)

---

⚠️ Safety & Precautions

• 🛑 Let the engine cool completely before working near the exhaust/manifold area.
• 🛑 Keep fingers/clothes clear of pulleys; never work with the engine running.
• 🛑 If you’ll be removing engine mounts or lifting the engine (timing chain work), support the engine with a jack and a wood block.
• 🛑 Battery disconnect: recommended if you’ll remove covers/connectors near the starter/alternator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flashlight
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (8mm-19mm)
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-200 Nm range)
• Trim clip removal tool
• Serpentine belt tool or long 3/8" drive handle
• Flathead screwdriver

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Accessory/serpentine belt - Qty: 1
• Timing chain kit (chain + guides + tensioner) - Qty: 1 (only if diagnosing confirmed chain wear)
• Front cover sealant - Qty: 1 (only if front cover removed)
• Engine oil (0W-20 full synthetic) - Qty: 5 quarts (only if timing cover removed)
• Oil filter - Qty: 1 (only if oil drained)
• Coolant (Hyundai-compatible, pre-mixed) - Qty: 1-2 gallons (only if coolant drained)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and use a flashlight to identify what you’re trying to replace:
  • The serpentine belt is visible and runs around pulleys.
  • The timing chain is inside the engine behind covers and is not visible.
• If you confirm you mean timing chain work, plan for a long job and avoid driving if you have loud rattle or correlation codes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which “belt” you’re replacing

• Use a flashlight and look at the passenger-side of the engine bay for a rubber belt around pulleys.
• If you can see it, that’s the accessory/serpentine belt (common DIY replacement).
• If you cannot see it and you’re chasing a rattle/codes, that points toward timing chain diagnostics instead.

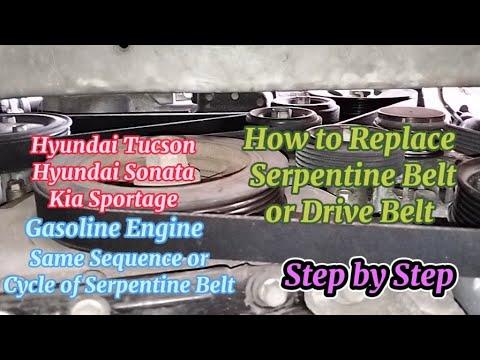

Step 2: Accessory/serpentine belt removal (only if that’s what you meant)

• Raise the front safely using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower splash shield fasteners using a trim clip removal tool and metric socket set (8mm-12mm) as needed.
• Locate the belt tensioner (spring-loaded arm).
• Rotate the tensioner using a serpentine belt tool or long 3/8" drive handle to relieve tension, then slide the belt off one pulley.
• Slowly release the tensioner back to rest. Don’t let it snap back.

Step 3: Install the new accessory/serpentine belt

• Route the new belt around the pulleys (leave the easiest pulley for last).
• Rotate the tensioner again using a serpentine belt tool or long 3/8" drive handle, slip the belt fully onto the last pulley, then release the tensioner slowly.
• Use a flashlight to confirm the belt ribs are seated in every pulley groove (no “half-on” alignment).

Step 4: Reassemble and check your work

• Reinstall the splash shield using a trim clip removal tool and metric socket set (8mm-12mm).
• Lower the vehicle using the floor jack (rated 3-ton minimum).

Step 5: If you meant timing chain work instead

• Stop here and tell me your symptom (rattle on cold start, oil level issues, check-engine light).
• Timing chain replacement on your Tucson requires major disassembly and exact timing alignment; it’s not the same as a belt swap.
• If you want, I’ll provide the full factory-style chain procedure once you confirm symptoms and whether you’re seeing any OBD-II codes.

---

✅ After Repair

• Start the engine and watch the belt for smooth tracking (no wobble, no chirp).
• Turn the A/C on and off and re-check for squeal.
• After a short drive, recheck that nothing is rubbing and the splash shield is secure.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 (serpentine belt) / $1,200-$2,500+ (timing chain)

DIY Cost: $25-$80 (serpentine belt) / $250-$650 (timing chain parts + fluids)

You Save: $95-$170 (serpentine belt) / $550-$1,850+ (timing chain) by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours (serpentine) or 6-10 hours (timing chain).

---
