🔧 Ball Joints - Replacement

Assumption: this covers the front suspension ball joints on your Sierra. On this truck, ball joint service typically involves the front control arm assembly or a press-fit joint, so a ball joint press and separator are usually required. Worn ball joints can cause clunks, wandering steering, uneven tire wear, and unsafe handling.

Difficulty Level: Advanced | Estimated Time: 4-8 hours

---

⚠️ Safety & Precautions

• Support the truck securely on jack stands; never work under a vehicle held only by a jack.
• Use a spring compressor if the suspension must be unloaded in a way that changes coil spring tension.
• Keep hands clear when separating the ball joint taper from the knuckle.
• If equipped with Electronic Parking Brake or any steering/suspension sensor wiring near the work area, avoid damaging connectors and harnesses.
• Battery disconnect is not usually required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug wrench
• Metric socket set
• Metric wrench set
• Breaker bar
• Torque wrench
• Ball joint separator
• Ball joint press kit (specialty)
• Pickle fork (optional)
• Hammer
• Pry bar
• Needle-nose pliers
• Snap ring pliers
• Penetrating oil
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2
• Front upper ball joint - Qty: 2
• Ball joint retaining hardware kit - Qty: 1
• Cotter pins - Qty: 2
• Front end alignment - Qty: 1
• Replacement grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Break the front lug nuts loose before lifting the truck.
• Raise the front end and support it securely on jack stands under the frame.
• After ball joint replacement, a front alignment is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front wheel

• Use a lug wrench to loosen the lug nuts, then remove the wheel after lifting the truck.
• Set the wheel aside safely.

Step 2: Open access to the ball joint

• Use the correct metric socket set and metric wrench set to remove any brake hose brackets, ABS wire clips, or splash shield fasteners that block access.
• Keep track of every fastener.

Step 3: Separate the ball joint from the steering knuckle

• Remove the cotter pin with needle-nose pliers, then remove the castle nut with the correct metric socket or metric wrench.
• Use a ball joint separator to break the taper loose from the knuckle.
• If needed, a pickle fork can be used, but it may damage reusable parts.
• Torque on reassembly: follow GM fastener spec for the replacement joint hardware.

Step 4: Remove the ball joint from the control arm

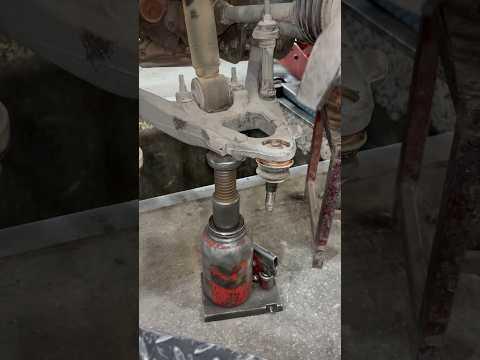

• For a press-fit joint, use a ball joint press kit to press the old joint out of the control arm.
• Remove any snap ring with snap ring pliers before pressing, if equipped.
• Clean the bore with a wire brush before installing the new joint.

Step 5: Install the new ball joint

• Use the ball joint press kit to press the new joint in straight until fully seated.
• Install the snap ring with snap ring pliers if the joint uses one.
• Make sure the joint seats fully and squarely in the arm.

Step 6: Reconnect the steering knuckle

• Insert the ball joint stud into the knuckle by hand.
• Install the new castle nut with the correct metric socket.
• Torque to manufacturer specification.
• Install a new cotter pin with needle-nose pliers.

Step 7: Reinstall removed brackets and wheel

• Reinstall any brake hose or ABS wire brackets using the correct metric socket or metric wrench.
• Put the wheel back on and hand-tighten the lug nuts.
• Lower the truck and use a torque wrench to tighten the lug nuts in a star pattern.
• Torque to 190 Nm (140 ft-lbs).

Step 8: Repeat on the other side if needed

• Replace ball joints in pairs when wear is similar side to side.
• Always inspect both sides closely.

---

✅ After Repair

• Drive slowly at first and listen for clunks or popping sounds.
• Check that the steering wheel is centered and the truck tracks straight.
• Inspect all fasteners after the first test drive.
• Schedule a professional front-end alignment as soon as possible.

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,200 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $420-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-8 hours.

---
