🔧 XT5 - Timing Belt Replacement

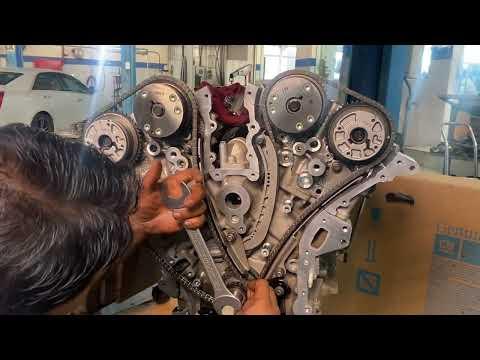

Your XT5’s 3.6L V6 does not use a timing belt—it uses a timing chain system (chains, guides, tensioners). So there is no routine “timing belt replacement” interval like on belt-driven engines.

If you’re trying to fix a noise, a check-engine light, or cam/crank timing codes, that’s when timing chain service may be needed—and it’s a big, precision job.

Difficulty Level: Advanced | Estimated Time: 10-14 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully before working near the exhaust and cooling system.
• ⚠️ Support the vehicle with jack stands on a level surface—never rely on a jack.
• ⚠️ Disconnect the negative battery cable before any work near the starter/alternator area.
• ⚠️ This job involves engine support and precise timing alignment; if timing is set wrong, it can cause severe engine damage.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Metric socket set 8mm-24mm
• Metric wrench set 8mm-24mm
• Torque wrench (10-200 Nm range)
• Breaker bar 1/2-inch drive
• Torx bit set T20-T60
• E-Torx socket set E8-E20
• Trim clip removal tool
• Serpentine belt tool 3/8-inch drive
• Drain pan (at least 10-quart)
• Funnel
• Engine support bar (specialty)
• Harmonic balancer puller (specialty)
• GM 3.6L timing tool kit (specialty)
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit (primary chain, secondary chains, guides, tensioners) - Qty: 1
• Timing cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Valve cover gasket set - Qty: 1
• Engine oil (dexos synthetic, correct grade for XT5) - Qty: 6 quarts
• Oil filter - Qty: 1
• Engine coolant (DEX-COOL compatible) - Qty: 2-3 gallons
• RTV sealant (timing cover/corner joints, GM-approved) - Qty: 1
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Plan for the vehicle to be down all day (or the weekend).
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it.
• Timing tools “lock” parts so timing can’t slip.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm what you actually need (belt vs chain)

• Your XT5 has a timing chain, not a belt—so there’s nothing to replace as routine maintenance.
• Use an OBD2 scan tool to read codes if you have a check-engine light.
• Common chain-related codes would be in the P0008/P0016 family; write down any codes you see.

Step 2: Tell me these two details so I can give the correct GM procedure + exact torque specs

• Is your XT5 FWD or AWD?
• What’s the reason for the repair: rattle/noise, check-engine codes, or preventive?

Step 3: Do not disassemble yet

• Until I know FWD/AWD and the symptom, I can’t give you the correct disassembly path and Torque to XX Nm (YY ft-lbs) specs that keep the timing cover, balancer, and mounts safe.
• If you want, reply with those two answers and I’ll lay out the full step-by-step (including timing mark alignment and tool placement).

---

✅ After Repair

• Clear any stored codes using an OBD2 scan tool and confirm they do not return.
• Check for oil/coolant leaks around the timing cover area after the first heat cycle.
• Recheck fluid levels (oil and coolant) once fully cooled.

---

💰 DIY vs Shop Cost

Shop Cost: $2,000-$4,000 (parts + labor)

DIY Cost: $400-$1,200 (parts only)

You Save: $1,600-$2,800 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 10-14 hours.

---
