🔧 Acadia - Timing System Service (No Timing Belt)

Your Acadia’s 3.6L V6 uses a timing chain, not a timing belt—so there isn’t a belt to replace. Replacing the timing chains is a major engine-front teardown that requires cam/crank locking and exact torque/angle procedures to prevent engine damage.

Difficulty Level: Advanced | Estimated Time: 10-16 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before starting.
• ⚠️ Disconnect the negative battery cable to prevent accidental cranking.
• ⚠️ Support the vehicle with jack stands; never rely on a floor jack.
• ⚠️ The engine may need to be supported while mounts/brackets are removed.
• ⚠️ Do not rotate the crank/cams with chains removed; valves can contact pistons.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Metric socket set (8mm–24mm)
• 1/4" ratchet
• 3/8" ratchet
• 1/2" breaker bar
• Torque wrench (10–150 ft-lbs)
• Torque angle gauge
• Torx bit socket set (T20–T50)
• E-Torx socket set (E8–E14)
• Serpentine belt tool (long-handled)
• Harmonic balancer puller kit
• Engine support bar (specialty)
• GM 3.6L camshaft locking tool set (specialty)
• GM 3.6L timing chain wedge/holding tools (specialty)
• Trim clip removal tool
• Plastic gasket scraper
• Drain pan (at least 10-quart)
• Funnel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain set (primary and secondary chains) - Qty: 1
• Timing chain guides set - Qty: 1
• Timing chain tensioners - Qty: 1 set
• Front cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Valve cover gaskets - Qty: 2
• Intake manifold gasket set - Qty: 1
• Fresh engine oil (dexos 5W-30 full synthetic) - Qty: 6 quarts
• Oil filter - Qty: 1
• Engine coolant (DEX-COOL compatible) - Qty: 2-3 gallons premix equivalent
• RTV sealant (GM-spec timing cover RTV) - Qty: 1
• Crankshaft balancer bolt (one-time-use if specified) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Disconnect the negative battery cable using a 10mm socket.
• Plan for the vehicle to be down all day (or weekend) and keep parts organized in labeled bags.
• Two quick questions before I give you the exact GM step order and torque/angle points:
  • Are you trying to replace the timing chains (common for correlation codes like P0008/P0017), or were you told “timing belt” by a shop?
  • Do you have a torque angle gauge and the GM 3.6L cam locking tool set? (These hold the cams in place so timing doesn’t slip.)

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm it’s a timing chain job

• If you have a scan tool, check for timing correlation codes (examples: P0008, P0016, P0017) and record freeze-frame data.
• If there are no codes and you’re doing this “preventively,” I recommend stopping here—this is not a normal maintenance item on your Acadia.

Step 2: Get access to the engine front

• Raise and support the front of the vehicle using a floor jack (rated 3-ton minimum) and jack stands (rated 3-ton minimum).
• Remove the lower splash shields using a metric socket set (8mm–24mm) and trim clip removal tool.
• Drain coolant into a drain pan (at least 10-quart).

Step 3: Remove the serpentine belt and front accessories

• Release belt tension using a serpentine belt tool (long-handled) and remove the belt.
• Remove accessory brackets/fasteners using E-Torx socket set (E8–E14) and metric socket set (8mm–24mm).

Step 4: Remove the crankshaft balancer (harmonic balancer)

• Remove the balancer bolt using a 1/2" breaker bar and metric socket set (8mm–24mm).
• Pull the balancer using a harmonic balancer puller kit.
• Do not pry on the balancer.

Step 5: Remove valve covers and set engine to timing position

• Remove the intake/upper components as needed to reach the valve covers using a metric socket set (8mm–24mm) and Torx bit socket set (T20–T50).
• Remove both valve covers using a metric socket set (8mm–24mm).
• Rotate the engine by hand to the specified timing position using a metric socket set (8mm–24mm) on the crankshaft.
• Install the GM 3.6L camshaft locking tool set (specialty) (this tool locks the cams so they can’t move).

Step 6: Remove the front cover

• Support the engine if mounts/brackets must come off using an engine support bar (specialty).
• Remove the front cover fasteners using E-Torx socket set (E8–E14) and metric socket set (8mm–24mm).
• Carefully separate the cover using a plastic gasket scraper (avoid gouging aluminum surfaces).

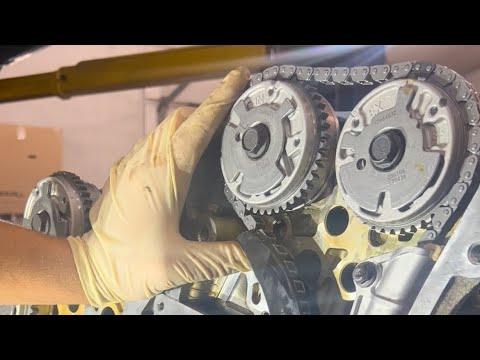

Step 7: Replace chains, guides, and tensioners

• Install the GM 3.6L timing chain wedge/holding tools (specialty) as required to keep timing references stable.
• Remove and replace the timing chains, guides, and tensioners.
• Align all timing marks exactly per GM service information before releasing tensioners.
• Torque to GM specification with torque-angle where required using a torque wrench (10–150 ft-lbs) and torque angle gauge.

Step 8: Re-seal and reinstall the front cover and balancer

• Clean mating surfaces using a plastic gasket scraper.
• Apply RTV sealant (GM-spec timing cover RTV) at the specified joints.
• Install the front cover and fasteners using E-Torx socket set (E8–E14) and torque wrench (10–150 ft-lbs).
• Install a new front crankshaft seal if removed/damaged.
• Reinstall the balancer and install the (often one-time-use) bolt.
• Torque to GM specification with torque-angle where required using a torque wrench (10–150 ft-lbs) and torque angle gauge.

Step 9: Reassemble and refill fluids

• Reinstall valve covers with new gaskets using a metric socket set (8mm–24mm).
• Reinstall accessories, brackets, and the serpentine belt using E-Torx socket set (E8–E14) and serpentine belt tool (long-handled).
• Refill coolant using a funnel and refill engine oil and filter.

---

✅ After Repair

• Start the engine and let it idle. Listen for abnormal chain noise and verify the check engine light stays off.
• Check for oil leaks at the front cover and crank seal area.
• Bring the engine to operating temp and top off coolant after the thermostat opens.
• Clear any stored codes and verify none return after a test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $2,000-$4,500 (parts + labor)

DIY Cost: $400-$1,200 (parts only)

You Save: $1,600-$3,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 10-16 hours.

---
