🔧 Golf - Timing Belt Replacement (Not Equipped)

Your Golf’s 1.8T engine uses a timing chain, not a timing belt—so there isn’t a timing belt to replace. A lot of people mean the serpentine (accessory) belt, which drives the alternator and A/C; that one is serviceable and DIY-friendly.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool so you don’t burn yourself on hot parts.
• ⚠️ Keep fingers/tools clear of the belt path and pulleys.
• ⚠️ If you raise the front of your Golf, support it with jack stands (never rely on a jack alone).
• ⚠️ Battery disconnect is not required for this belt replacement, but remove the key and keep the car off.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 17mm socket
• 1/2" drive ratchet
• 16mm wrench
• T25 Torx screwdriver
• Trim clip removal tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

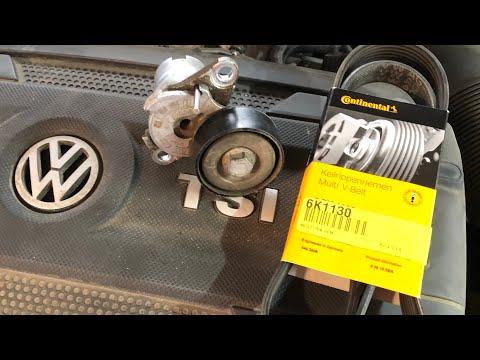

• Serpentine (accessory drive) belt - Qty: 1
• Serpentine belt tensioner - Qty: 1 (optional, if noisy/weak)
• Serpentine belt idler pulley - Qty: 1 (optional, if noisy)

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• If you need more room, raise the front and set it on jack stands at the factory jack points.
• Take a quick photo of the belt routing before removal (helps during install).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the belt area

• Open the hood and locate the belt on the passenger side of the engine.
• If access is tight from above, raise the front with a floor jack and support with jack stands.
• Remove any lower splash shield section that blocks access using a T25 Torx screwdriver and a trim clip removal tool.

Step 2: Find the belt tensioner

• Use a flashlight to identify the belt tensioner (spring-loaded arm that keeps the belt tight).
• Tensioner = the self-tightening belt arm.

Step 3: Release belt tension

• Put a 16mm wrench on the tensioner’s hex and rotate it to relieve tension.
• While holding the tensioner released, slide the belt off one easy pulley (usually the alternator pulley).
• Slowly let the tensioner return—don’t let it snap back.

Step 4: Remove the old belt

• Pull the belt out completely and compare it to the new belt for the same length/rib count.
• Check pulleys by spinning them by hand; they should be smooth and quiet.
• If you hear grinding/roughness, plan to replace the idler pulley and/or tensioner.

Step 5: Route the new belt

• Route the belt around the pulleys the same way as your photo.
• Make sure the ribs sit fully in the ribbed pulleys (no “one rib off”).
• Leave the easiest pulley for last so you can slip it on while the tensioner is released.

Step 6: Apply tension and final-check alignment

• Use the 16mm wrench to rotate the tensioner again.
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Visually check every pulley: the belt should be centered and fully seated.
• Misalignment will shred a new belt fast.

Step 7: Reinstall shields and lower the car

• Reinstall any splash shield pieces using the T25 Torx screwdriver and trim clip removal tool.
• Lower the car using the floor jack and remove the jack stands.

---

✅ After Repair

• Start the engine and watch the belt for 20–30 seconds; it should run smoothly with no wobble.
• Listen for squeal or chirping. If present, shut off and re-check routing and seating.
• Take a short test drive, then do one more quick visual check.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$350 (parts + labor)

DIY Cost: $30-$120 (parts only)

You Save: $120-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
