🔧 Odyssey - Power Steering “Pump” Replacement (Not Applicable: EPS System)

Your Odyssey does not use a hydraulic power steering pump or fluid. It uses Electric Power Steering (EPS), where an electric motor on the steering rack provides assist.

If you’re chasing a “whine,” “no assist,” or leaks, the repair is usually diagnosis of the EPS rack/motor, EPS fuses/grounds, or battery/charging system—not a pump swap.

Difficulty Level: Advanced | Estimated Time: 4-8 hours

---

⚠️ Safety & Precautions

• ⚠️ Airbag/SRS risk: Disconnect the battery negative cable and wait at least 3 minutes before working near the steering column.
• ⚠️ Do not rotate the steering wheel with the intermediate shaft disconnected; this can damage the cable reel (clock spring) (it keeps the airbag wiring connected while turning).
• ⚠️ Support the van with jack stands on solid ground; never rely on a floor jack alone.
• ⚠️ After rack work, you must get a professional alignment.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Breaker bar 1/2"
• Torque wrench 3/8"
• Torque wrench 1/2"
• Socket set metric 8mm-24mm
• Wrench set metric 10mm-24mm
• Ball joint separator (specialty)
• Tie rod end puller (specialty)
• Pry bar
• Paint marker
• Flat trim tool
• Phillips screwdriver
• Honda-capable scan tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Electric power steering rack assembly - Qty: 1
• Outer tie rod ends - Qty: 2 Replace in pairs
• Cotter pins - Qty: 2

---

📋 Before You Begin

• Park on level ground, straighten the front wheels, and set the parking brake.
• Use wheel chocks behind the rear tires.
• Disconnect the battery using a 10mm socket on the negative terminal, then wait 3 minutes.
• Tip: Use a paint marker to mark alignments.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

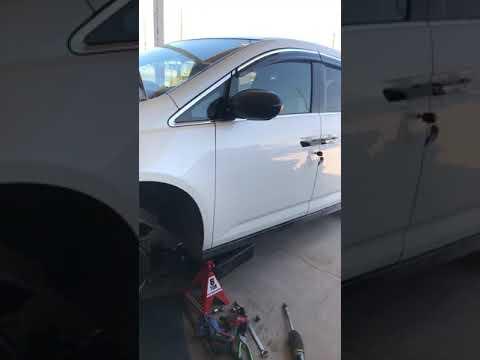

Step 1: Lift and secure the front of the van

• Loosen the front wheel lug nuts using a 19mm socket and breaker bar.
• Lift with a floor jack and support with jack stands under approved lift points.
• Remove both front wheels using a 19mm socket.
• Reinstall wheels later: Torque to 127 Nm (94 ft-lbs).

Step 2: Disconnect the outer tie rod ends

• Remove the cotter pins using needle-nose pliers (if equipped) and loosen the tie rod end nuts using the correct socket/wrench.
• Separate the tie rod ends from the steering knuckles using a tie rod end puller (specialty).
• Tip: Don’t hammer the knuckle; use a puller.

Step 3: Disconnect the EPS rack electrical connectors

• Locate the EPS rack electrical connector(s) and release locks using a flat trim tool.
• Unplug connectors carefully; do not pull on wires.

Step 4: Disconnect the steering intermediate shaft from the rack

• From the lower steering column area, mark the relationship between the shaft and input using a paint marker.
• Remove the pinch bolt using the correct socket/wrench, then slide the shaft off.
• Important: Keep the steering wheel centered and do not rotate it while disconnected.

Step 5: Create access to remove the rack (subframe access)

• Remove any lower covers/splash shields using a trim tool and 10mm socket.
• Depending on access, you may need to support the subframe/engine cradle area with a floor jack and wood block.
• Tip: Take photos before removing brackets.

Step 6: Unbolt and remove the EPS rack

• Remove rack mounting bolts using the correct socket and breaker bar.
• Work the rack out through the wheel well/opening as access allows, using a pry bar gently if needed.
• Torque note: Rack/subframe fastener torque varies by fastener location—tighten with a torque wrench to the factory specification for your exact fasteners.

Step 7: Install the new EPS rack

• Position the replacement rack and start mounting bolts by hand to avoid cross-threading.
• Tighten mounting hardware using a torque wrench to factory specification.
• Reconnect EPS electrical connectors until the locks click in place.

Step 8: Reconnect the intermediate shaft

• Align the paint marks and slide the shaft fully onto the rack input.
• Install the pinch bolt using the correct socket/wrench, then tighten using a torque wrench to factory specification.

Step 9: Reinstall tie rod ends and set a basic toe

• If replacing tie rod ends, transfer measurements from old to new (count turns or measure length) using a tape measure and wrenches.
• Install tie rod ends into knuckles and tighten using the correct socket/wrench, then install new cotter pins if applicable.
• Tip: This is only “close enough” to drive to alignment.

Step 10: Reassemble and lower

• Reinstall splash shields using a 10mm socket and trim tool.
• Reinstall wheels and snug lug nuts using a 19mm socket.
• Lower the van and final-tighten: Torque to 127 Nm (94 ft-lbs).

---

✅ After Repair

• Reconnect the battery using a 10mm socket.
• Use a Honda-capable scan tool (specialty) to check/clear EPS and VSA codes and perform any required steering angle sensor neutral learn/calibration if prompted.
• Start the engine and confirm the steering assist feels normal (no heavy steering, no warning lights).
• Get a 4-wheel alignment as soon as possible.
• Road test at low speed first, then normal speeds, listening for clunks and verifying straight tracking.

---

💰 DIY vs Shop Cost

Shop Cost: $1,400-$2,800 (parts + labor)

DIY Cost: $650-$1,800 (parts only)

You Save: $750-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-8 hours.

---
