🔧 Envision - Timing Belt Replacement

Your Envision’s 2.0L turbo engine uses a timing chain, not a timing belt—so there isn’t a belt to replace on this engine. If you’re chasing a noise, check-engine light, or timing-related codes, the related repair is typically timing chain/tensioner/guide service, which is a major job.

Difficulty Level: Advanced | Estimated Time: 8-14 hours

Assumption: You meant timing chain service.

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully before draining coolant or opening the front cover.
• ⚠️ Disconnect the negative battery cable to prevent accidental cranking.
• ⚠️ Support the engine before removing any engine mount bolts.
• ⚠️ Do not rotate the crank/cams with the chain removed; valve damage can occur.
• ⚠️ Use jack stands on solid, level ground; never rely on a jack alone.
• ⚠️ Keep sealant and debris out of oil/coolant passages.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Metric socket set (8mm-24mm)
• Metric wrench set (8mm-19mm)
• Torx bit set (T20-T60)
• E-Torx socket set (E8-E14)
• Breaker bar (1/2-inch drive)
• Torque wrench (10-200 Nm range)
• Torque angle gauge (specialty)
• Harmonic balancer puller kit (specialty)
• Engine support bar (specialty)
• Timing chain holding/locking tool set for GM 2.0L (specialty)
• Pry bar
• Trim clip remover
• Drain pan (10-liter minimum)
• Funnel
• Plastic gasket scraper
• Shop rags
• Brake cleaner spray
• Paint marker
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain - Qty: 1
• Timing chain tensioner - Qty: 1
• Timing chain guide set - Qty: 1
• Front cover gasket set - Qty: 1
• Valve cover gasket - Qty: 1
• Front crankshaft seal - Qty: 1
• RTV sealant (OEM-spec) - Qty: 1
• Engine coolant (Dex-Cool compatible) - Qty: 2-3 gallons equivalent
• Engine oil (OEM-spec viscosity) - Qty: 5-6 quarts equivalent
• Oil filter - Qty: 1
• Crankshaft balancer bolt (single-use) - Qty: 1
• Accessory drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Disconnect the negative battery cable using a 10mm socket.
• Raise the right-front of the vehicle with a floor jack and set it on jack stands.
• Plan to do an oil change at the end; opening the front cover can contaminate oil.
• Have the timing chain locking tool set ready—this “locks” (holds) the camshafts/crank so timing stays correct.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the right-front wheel and splash shields

• Use a lug wrench to remove the wheel lug nuts and remove the wheel.
• Use a trim clip remover and Torx bit set to remove the inner fender liner and lower splash shield fasteners.

Step 2: Drain coolant and prepare the work area

• Place a drain pan under the radiator drain area.
• Open the drain using the appropriate metric socket set as needed and drain coolant.
• Clean spills immediately; coolant is slippery and toxic.

Step 3: Remove the air intake ducting and upper engine covers

• Use a metric socket set and hose clamp tool to loosen clamps and remove intake ducts.
• Remove any engine cover panels by hand and/or with a 10mm socket.

Step 4: Support the engine and remove the right-side engine mount area parts

• Install an engine support bar (specialty) to hold the engine from above.
• Use a metric socket set and E-Torx socket set to remove the mount fasteners.
• Take photos before removing brackets.

Step 5: Remove the accessory drive belt and crank pulley (harmonic balancer)

• Use a breaker bar and the correct socket to rotate the belt tensioner and remove the belt.
• Remove the crank pulley bolt using a breaker bar (1/2-inch drive).
• Use a harmonic balancer puller kit (specialty) to pull the pulley straight off.
• Torque to Buick specification per service manual when reinstalling the crank bolt (typically torque + angle, so you’ll use a torque angle gauge).

Step 6: Remove the valve cover to access cam timing reference points

• Disconnect electrical connectors and ignition components as needed using a trim tool and metric socket set.
• Remove valve cover bolts with an E-Torx socket or metric socket as equipped.
• Lift the valve cover off carefully; don’t pry on sealing surfaces with metal tools.

Step 7: Set cylinder #1 to Top Dead Center (TDC) and lock timing

• Rotate the engine by hand at the crank using a socket and breaker bar until timing marks align at TDC.
• Install the timing chain holding/locking tool set (specialty) to secure the camshafts/crank position.
• Use a paint marker to add your own reference marks on chain and sprockets.

Step 8: Remove the front cover

• Remove front cover bolts using the metric socket set and E-Torx socket set.
• Use a plastic gasket scraper to gently break the seal if needed.
• Keep track of bolt lengths and locations; some are different lengths.

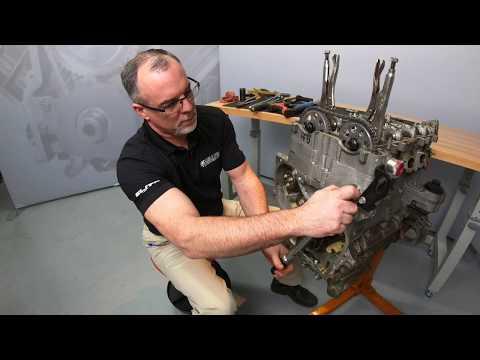

Step 9: Remove the timing chain, guides, and tensioner

• Relieve the tensioner per the service design using the timing tool set.
• Remove tensioner and guides using the metric socket set.
• Remove the chain carefully, keeping sprockets from moving.

Step 10: Install new guides, tensioner, and timing chain

• Install the new guides using the metric socket set.
• Install the new chain aligned to timing marks; use your paint marker references.
• Install and set the new tensioner per its shipping pin/lock design.
• Torque to Buick specification per service manual for guide and tensioner fasteners.

Step 11: Re-seal and install the front cover

• Clean all mating surfaces using brake cleaner spray and shop rags.
• Install the front crankshaft seal if removed, using the correct driver from your puller kit or seal installer.
• Apply RTV sealant (OEM-spec) at specified joints and corners, then install the cover.
• Tighten fasteners evenly; Torque to Buick specification per service manual.

Step 12: Reinstall crank pulley, engine mount, belt, and removed components

• Reinstall the crank pulley and new crank bolt using a torque wrench and torque angle gauge.
• Reinstall engine mount/brackets using the metric socket set and E-Torx socket set.
• Install the new accessory belt using a breaker bar on the tensioner.
• Reinstall the valve cover with a new gasket; Torque to Buick specification per service manual.

Step 13: Refill fluids and reassemble wheel well

• Refill coolant using a funnel and the correct Dex-Cool compatible coolant.
• Perform an oil change using the correct engine oil and oil filter.
• Reinstall splash shields and the wheel using the trim clip remover and lug wrench.
• Torque lug nuts to Buick specification per owner/service manual.

---

✅ After Repair

• Start the engine and listen: no rattles, slaps, or ticking from the timing cover area.
• Let it reach operating temperature and check for coolant and oil leaks.
• Recheck coolant level after the first full heat cycle and top off if needed.
• If a check-engine light is present, scan and clear codes after confirming the repair.
• Do a short test drive, then recheck leaks.

---

💰 DIY vs Shop Cost

Shop Cost: ₹60,000-₹1,40,000 (parts + labor)

DIY Cost: ₹18,000-₹55,000 (parts only)

You Save: ₹42,000-₹85,000 by doing it yourself!

Shop labor rates vary widely; this job is typically 8-14 hours of labor.

---
