🔧 Encore - Timing Chain Replacement

Your Encore’s 1.4L turbo engine uses a timing chain (metal chain), not a timing belt. Replacing the chain is a big job because you must support the engine, remove the front cover, and set cam/crank timing precisely to avoid engine damage.

Difficulty Level: Advanced | Estimated Time: 6-10 hours

Assumption: stock 1.4L Ecotec turbo with timing chain.

---

⚠️ Safety & Precautions

• 🛑 Support the engine before removing the right engine mount.
• 🛑 Let the engine cool fully; hot coolant can burn.
• 🛑 Disconnect the negative battery cable to prevent accidental starts.
• 🛑 Keep hands clear when rotating the crankshaft with a breaker bar.
• 🛑 If timing marks don’t line up exactly, do not start the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Engine support bar (specialty)
• Drain pan (at least 10-quart)
• Funnel
• Metric socket set 8mm-21mm
• Metric wrench set 8mm-21mm
• Torx socket set E10-E14
• Torx bit set T20-T40
• Breaker bar 1/2" drive
• Torque wrench 3/8" drive (10-100 Nm range)
• Torque wrench 1/2" drive (50-250 Nm range)
• Torch/flashlight
• Trim clip removal tool
• Serpentine belt tool (specialty)
• Harmonic balancer puller kit (specialty)
• Crank pulley holding tool (specialty)
• Camshaft locking tool kit for GM 1.4L (specialty)
• Gasket scraper (plastic)
• Brake cleaner spray
• Shop rags
• RTV sealant applicator nozzle

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit (chain + guides + tensioner) - Qty: 1
• Timing cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Valve cover gasket - Qty: 1
• Crankshaft pulley bolt (one-time-use) - Qty: 1
• Engine coolant (DEX-COOL compatible) - Qty: 1-2 gallons (pre-mix as needed)
• Engine oil (dexos 5W-30 full synthetic) - Qty: 5 quarts
• Oil filter - Qty: 1
• RTV silicone sealant (GM-approved) - Qty: 1
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Disconnect the battery with a 10mm socket (negative cable first).
• Raise the front with a floor jack and support it with jack stands at the pinch welds/subframe points.
• Install an engine support bar across the fenders/strut towers; this holds the engine from above when the right mount comes off. (An engine support bar is a brace that safely holds the engine up.)
• Place a drain pan under the radiator area and be ready for coolant and oil drips when the front cover comes off.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the right front wheel and splash shields

• Use a 19mm socket to remove the wheel lug nuts and remove the wheel.
• Use a trim clip removal tool and 7mm/10mm socket to remove the inner fender liner/splash shield fasteners.

Step 2: Drain coolant (and plan an oil change)

• Place a drain pan under the radiator drain area.
• Use pliers or the appropriate socket for the drain (varies by radiator) and drain coolant.
• Plan to replace oil after reassembly.

Step 3: Remove the serpentine belt

• Use a serpentine belt tool to rotate the belt tensioner and slip the belt off.
• Remove the belt from all pulleys and set aside (replace if worn).

Step 4: Support the engine and remove the right engine mount

• Take engine weight with the engine support bar so the mount isn’t loaded.
• Use metric sockets and E-Torx sockets to remove the right mount and mount bracket fasteners.
• Torque to manufacturer spec on install (mount fasteners vary by bolt type/length).

Step 5: Remove components blocking the timing cover

• Remove the crank pulley/harmonic balancer bolt using a breaker bar and crank pulley holding tool. (A holding tool keeps the pulley from turning.)
• Use a harmonic balancer puller kit to pull the crank pulley off.
• Remove any front cover blocking brackets/pulleys as needed using metric sockets and Torx bits.

Step 6: Remove the valve cover to access timing marks

• Unplug ignition coil and sensor connectors by hand, then remove fasteners with a 10mm socket.
• Remove the valve cover bolts with a Torx bit (commonly T30).
• Lift the valve cover off carefully; don’t pry on sealing surfaces.
• Valve cover bolt torque (typical): Torque to 8 Nm (71 in-lbs)

Step 7: Set cylinder #1 to TDC on the compression stroke

• Use a breaker bar and the crank bolt (temporarily installed) to rotate the engine clockwise.
• Align the timing marks per the GM 1.4L layout: crank and both cam marks must be aligned at TDC.
• Install the camshaft locking tool kit (specialty) to hold camshafts in place. (A locking tool prevents cams from moving while the chain is off.)
• Do not rotate cams with the chain removed.

Step 8: Remove the timing cover

• Remove timing cover bolts using metric sockets and E-Torx sockets.
• Break the seal gently using a plastic gasket scraper; avoid gouging aluminum.
• Clean mating surfaces with brake cleaner spray and shop rags.
• Timing cover bolt torque (typical small bolts): Torque to 10 Nm (89 in-lbs)

Step 9: Remove the timing chain, guides, and tensioner

• Relieve/remove the chain tensioner using the correct socket for the tensioner fasteners.
• Remove the chain guides with a socket.
• Slide the chain off the cam sprockets and crank sprocket.

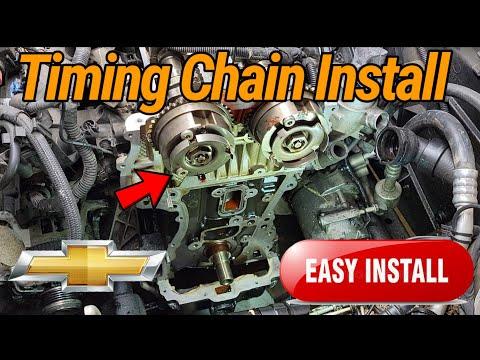

Step 10: Install the new chain and set timing marks

• Install new guides and new tensioner from the timing chain kit using metric sockets.
• Place the new chain on the crank sprocket and cam sprockets, matching the colored links to the timing marks (if your kit includes colored links).
• Release/activate the new tensioner per kit instructions; confirm chain slack is taken up on the correct side.
• Double-check marks before turning the engine.

Step 11: Verify timing by hand-rotating the engine

• Remove the locking tools.
• Use a breaker bar to rotate the crankshaft clockwise two full revolutions.
• Re-check that timing marks return to the proper aligned position at TDC.
• If marks are off, stop and re-time before proceeding.

Step 12: Reinstall timing cover with new seals and RTV

• Install a new front crankshaft seal (follow seal depth guidance from the seal/cover kit).
• Apply RTV silicone only where required (commonly at cover/head/block joints) using the RTV nozzle.
• Install the timing cover and hand-start all bolts, then tighten evenly using a torque wrench.
• Timing cover bolt torque (typical small bolts): Torque to 10 Nm (89 in-lbs)

Step 13: Reinstall crank pulley and use a new crank bolt

• Install the crank pulley/harmonic balancer fully seated.
• Install a new crankshaft pulley bolt.
• Use a crank pulley holding tool and a torque wrench to tighten.
• Crank bolt torque (common GM torque-to-yield style): Torque to 150 Nm (111 ft-lbs) + 45°

Step 14: Reinstall valve cover, mount, belt, and shields

• Install a new valve cover gasket and reinstall the valve cover.
• Use a torque wrench: Torque to 8 Nm (71 in-lbs)
• Reinstall the right engine mount and bracket using sockets and the engine support bar still holding the engine.
• Reinstall the serpentine belt using the serpentine belt tool.
• Reinstall splash shields (use trim tools and 7mm/10mm socket), then reinstall the wheel using a 19mm socket.
• Wheel lug torque: Torque to 140 Nm (103 ft-lbs)

Step 15: Refill fluids and reconnect battery

• Refill coolant using a funnel with DEX-COOL compatible coolant.
• Change engine oil and filter (recommended after this job) using the correct oil filter wrench if needed.
• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle; listen for abnormal rattling near the timing cover.
• Check for oil leaks at the timing cover and crank seal area.
• Watch coolant temperature and confirm the heater blows hot; top off coolant after the first full heat cycle.
• Test drive gently, then re-check fluid levels and look underneath for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $950-$1,550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 6-10 hours.

---
