🔧 Highlander - Power Steering “Pump” Verification & EPS System Check

Your Highlander uses Electric Power Steering (EPS), so it does not have a hydraulic power steering pump or power steering fluid to replace. If you’re having steering issues, the fix is usually in the EPS electrical system (fuses, wiring, battery/charging, or the EPS motor/steering gear assembly).

Difficulty Level: Beginner | Estimated Time: 0.5–1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep hands/clothes away from belts and fans if the engine is running.
• ⚠️ If you unplug steering/EPS connectors, turn ignition OFF first.
• ⚠️ If you raise the front end, support with jack stands before going underneath.
• ⚠️ If the steering wheel/airbag area is disturbed, disconnect the 12V battery and wait 90 seconds before touching yellow airbag connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• OBD2 scan tool with Toyota EPS/ABS capability (specialty)
• Digital multimeter
• 10mm socket
• Ratchet
• Trim clip remover
• Flashlight
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• EPS-related fuse(s) (as needed) - Qty: 1-3
• 12V battery terminal cleaning kit - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.

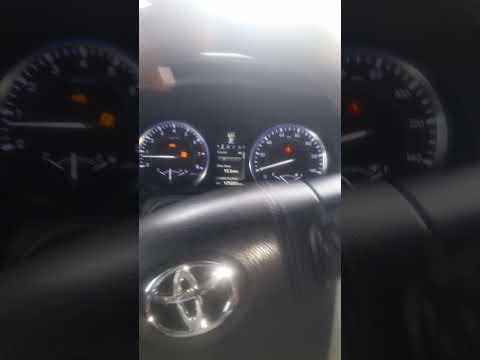

• If your steering is heavy, note whether the steering wheel warning light is on in the cluster.
• If you will unplug EPS connectors, turn ignition OFF and remove the key/fob from the vehicle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm it’s EPS (no pump to replace)

• Open the hood and use a flashlight to look for a power steering fluid reservoir and hoses.
• On your Highlander, you should not find a hydraulic reservoir/pump setup—this confirms Electric Power Steering (EPS).
• If you found a fluid reservoir, tell me.

Step 2: Check for EPS warning light and pull codes

• Plug in the OBD2 scan tool with Toyota EPS/ABS capability (specialty).
• Use the scan tool to read codes from EPS/Power Steering (not just “Engine”).
• Write down any EPS codes (example format: C15xx / C1xxx) and freeze-frame data if available.

Step 3: Quick 12V battery and charging check (very common cause)

• With the vehicle OFF, use a digital multimeter to measure battery voltage at the battery posts.
• With the engine running, measure again to confirm the alternator is charging.
• If the battery terminals look crusty/green, remove the negative terminal using a 10mm socket and ratchet, clean, then reinstall.
• Low voltage can trigger EPS faults.

Step 4: Check EPS fuses (no parts swapping yet)

• Locate the under-hood fuse/relay box and open it using a trim clip remover if needed.
• Use the fuse map on the cover to find fuses labeled for EPS / P/S / ECU.
• Remove and inspect each relevant fuse (look for a broken link). Reinstall firmly.

Step 5: Basic steering “feel” test with front end safely lifted

• Chock the rear wheels with wheel chocks.
• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• With ignition OFF, gently turn the steering wheel left/right. Note if it feels mechanically tight (binding) versus only heavy with the engine on.
• This helps separate an EPS assist problem from a mechanical binding problem.

---

✅ After Repair

• Clear EPS codes using the OBD2 scan tool with Toyota EPS/ABS capability (specialty) and recheck if they return.
• Test drive in a safe area and confirm steering assist is normal during parking-lot turns.
• If the steering warning light stays on, the next step is usually targeted diagnosis of the EPS system (often the steering gear/EPS motor assembly), based on the exact codes.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$350 (diagnosis + basic electrical checks)

DIY Cost: $0-$50 (mostly time; possibly fuses/terminal cleaning supplies)

You Save: $150-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.5 hours.

---
