🔧 F-150 - Timing Belt Replacement

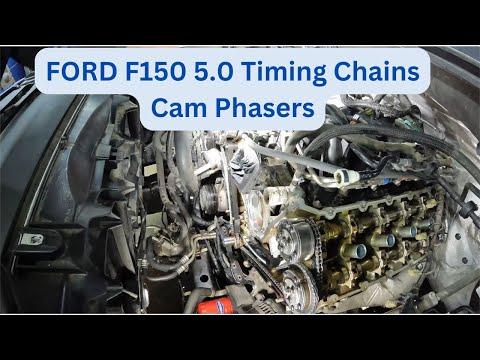

Your F-150 5.0L does not have a timing belt. It uses a timing chain system (chains, guides, tensioners, and cam phasers) behind the front engine cover.

Below is the correct DIY procedure for replacing the timing chain components—this is a high-precision job because cam/crank timing must be held in the correct position.

Difficulty Level: Advanced | Estimated Time: 10-14 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before any disassembly.
• ⚠️ Work only on a fully cooled engine (hot coolant/oil can burn you).
• ⚠️ Support the truck with jack stands; never rely on a floor jack.
• ⚠️ Keep fingers/tools clear of the fan and belt path during checks.
• ⚠️ Many fasteners in this area can be torque-to-yield (single-use “stretch” bolts). Replace them when required.
• ⚠️ Incorrect timing can cause severe engine damage. Use the correct Ford timing holding tools.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Trim clip removal tool
• Flat screwdriver
• Socket set (8mm-21mm)
• Deep socket set (8mm-21mm)
• Wrench set (8mm-21mm)
• Breaker bar (1/2-inch drive)
• Torque wrench (10-150 ft-lbs range)
• Torque angle gauge (specialty)
• Serpentine belt tool (specialty)
• Harmonic balancer puller kit (specialty)
• Ford 5.0L timing tool kit (specialty)
• Pry bar
• Razor scraper
• Brake cleaner spray
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit (primary/secondary chains, guides, tensioners) - Qty: 1
• Cam phasers (recommended if noisy/worn) - Qty: 2
• Front timing cover gasket set - Qty: 1
• Valve cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Crankshaft pulley bolt (one-time-use) - Qty: 1
• Engine coolant (Motorcraft-spec equivalent) - Qty: As needed
• Engine oil - Qty: As needed
• Oil filter - Qty: 1
• RTV silicone sealant (Ford-spec equivalent) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Disconnect the negative battery cable using a 10mm socket.
• Raise the front and support with jack stands.
• Place a drain pan under the radiator area; draining coolant is required.
• Bag and label bolts by component.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the intake tube and open up workspace

• Loosen hose clamps using an 8mm socket and remove the intake tube.
• Release wiring clips using a trim clip removal tool so harnesses aren’t pulled tight.

Step 2: Drain coolant

• Position a drain pan and drain the cooling system.
• Use a flat screwdriver if needed to open splash shield clips for access.

Step 3: Remove the serpentine belt

• Rotate the belt tensioner with a serpentine belt tool (specialty) (a long handled tool made to move spring-loaded tensioners safely).
• Remove the belt and note routing before removal.

Step 4: Remove components blocking the front cover

• Remove accessory fasteners using a socket set (10mm-15mm).
• Move components aside carefully; do not hang them by hoses or wiring.
• On reassembly: Torque to Ford specification (refer to service information) using a torque wrench.

Step 5: Remove ignition coils and valve covers

• Remove coil bolts with a 8mm socket, unplug connectors, and lift coils out.
• Remove valve cover bolts with an 8mm socket and lift covers off.
• Clean gasket surfaces with a razor scraper, then wipe with brake cleaner spray and shop rags.
• On reassembly: Torque to Ford specification (refer to service information) using a torque wrench.

Step 6: Remove the harmonic balancer (crank pulley)

• Remove the crank bolt using a breaker bar (1/2-inch drive) and correct socket.
• Remove the balancer using a harmonic balancer puller kit (specialty) (a threaded puller that draws the pulley off without prying).
• Never pry against the timing cover.

Step 7: Remove the front timing cover

• Remove cover bolts using a socket set (8mm-13mm).
• Break the seal gently with a pry bar only at cast pry points.
• Clean old RTV/gasket material with a razor scraper and brake cleaner spray.

Step 8: Set the engine to the correct timing position and lock it

• Rotate the engine by hand using a breaker bar (1/2-inch drive) and correct socket on the crank.
• Install the Ford 5.0L timing tool kit (specialty) to lock the crank and cams in place.
• Torque to Ford specification (refer to service information) for any timing tool fasteners, using a torque wrench.

Step 9: Remove tensioners, guides, and chains

• Remove tensioners and guides using the appropriate socket.
• Remove the timing chains carefully and keep track of each chain location.
• Inspect guide surfaces for missing plastic and check for obvious slack.

Step 10: Install new chains, guides, and tensioners

• Install new guides using a socket set and tighten with a torque wrench: Torque to Ford specification (refer to service information).
• Align colored chain links to the timing marks exactly (follow the chain kit/Ford diagram).
• Install new tensioners using a socket set and tighten with a torque wrench: Torque to Ford specification (refer to service information).
• Double-check marks before pulling tensioner pins.

Step 11: Install new crank seal and reseal the front cover

• Install the front crankshaft seal squarely (do not cock it).
• Apply RTV silicone sealant at the required joints/corners (where the front cover meets other sealing surfaces).
• Install the front cover and tighten evenly using a torque wrench: Torque to Ford specification (refer to service information).

Step 12: Reinstall the harmonic balancer with a new crank bolt

• Slide the balancer on straight; do not hammer it on.
• Install a new crankshaft pulley bolt.
• Tighten using a torque wrench and torque angle gauge (specialty): Torque to Ford specification (refer to service information).

Step 13: Reinstall valve covers, accessories, and serpentine belt

• Install new valve cover gaskets and reinstall covers using an 8mm socket.
• Tighten with a torque wrench: Torque to Ford specification (refer to service information).
• Reinstall accessories using a socket set and tighten with a torque wrench: Torque to Ford specification (refer to service information).
• Reinstall the belt using a serpentine belt tool (specialty).

Step 14: Refill fluids and first start

• Refill coolant using a funnel and top off engine oil; replace the oil filter if oil was drained/contaminated.
• Reconnect the battery using a 10mm socket.
• Start the engine and let it idle. If you hear loud rattling or knocking, shut it off immediately.

---

✅ After Repair

• Verify there are no coolant or oil leaks around the front cover and crank seal area.
• Bring the engine to operating temperature and recheck coolant level after it cools back down.
• Check for warning lights; if the check engine light comes on, scan for codes (timing correlation codes mean timing must be rechecked).
• Test drive gently, then recheck for seepage and fluid levels.

---

💰 DIY vs Shop Cost

Shop Cost: $2,000-$4,500 (parts + labor)

DIY Cost: $400-$1,500 (parts only)

You Save: $1,600-$3,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 10-14 hours.

---
