🔧 CX-5 - Power Steering Pump Replacement

Your CX-5 does not use a hydraulic power steering system, so there is no power steering pump to replace. It uses Electric Power Steering (EPS), where an electric motor/module assists steering (usually on the steering rack).

Before I lay out a rack/EPS replacement plan, I need just two details so you don’t buy the wrong part: (1) Do you have a steering wheel/EPS warning light on the dash? (2) What symptom are you fixing: hard steering, no assist, noise, or pull/wander?

Difficulty Level: Intermediate (diagnosis) / Advanced (EPS rack replacement) | Estimated Time: 0.5-1.0 hours (checks) / 4-8 hours (rack)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery terminal before unplugging EPS connectors.
• ⚠️ Keep the front wheels straight if working near the steering column to avoid damaging the clockspring (the spiral cable for the airbag).
• ⚠️ Never probe yellow airbag connectors; stay away from SRS wiring.
• ⚠️ If the vehicle must be raised, use jack stands on solid points—never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• OBD2 scan tool with EPS/ABS capability (specialty)
• Digital multimeter
• Battery charger or maintainer
• 10mm socket
• Ratchet
• Torque wrench (5–80 Nm range)
• Trim clip removal tool
• Flashlight
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• EPS main fuse (if failed) - Qty: 1
• 12V battery (if battery fails testing) - Qty: 1
• Electric power steering rack assembly (if confirmed faulty) - Qty: 1
• Outer tie rod ends (recommended if worn) - Qty: 2
• Steering rack mounting hardware (if required) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Center the steering wheel and leave it centered.
• Connect a battery charger if you’ll be scanning/clearing codes for a while.
• If you will disconnect EPS connectors: use a 10mm socket to remove the negative battery terminal and wait 3 minutes before touching connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm it’s EPS (no pump present)

• Open the hood and look for a power steering fluid reservoir—your CX-5 should not have one.
• If someone told you “pump,” they’re usually referring to the EPS rack/motor/module instead.

Step 2: Scan for EPS trouble codes

• Plug in an OBD2 scan tool with EPS capability (specialty) and read codes from EPS/PCM/ABS.
• Write down any codes exactly (example formats: C1xx, U0xxx) and whether they are “current” or “history.”
• Codes save guesswork and money.

Step 3: Check battery voltage and charging

• Use a digital multimeter across the battery posts.
• Engine OFF: about 12.4–12.7V is healthy; much lower can cause EPS to reduce/lose assist.
• Engine running: typically 13.5–14.7V (charging). If low, fix charging before replacing EPS parts.

Step 4: Check EPS-related fuses and power feeds

• Use a flashlight to locate the fuse boxes and check for any blown high-amp EPS fuses.
• Use a digital multimeter to confirm power is present where it should be (a fuse can look good but fail under load).

Step 5: Quick wiring/connector inspection at the rack area

• If you need to get underneath: use a floor jack, then support with jack stands.
• Use a flashlight to inspect EPS wiring/connectors for water intrusion, broken locks, rubbing, or green corrosion.
• If disconnecting connectors: remove the negative terminal with a 10mm socket first, then reconnect firmly.

Step 6: Decide the correct “replacement” based on results

• If you have low voltage/charging issues: repair those first (EPS often returns to normal).

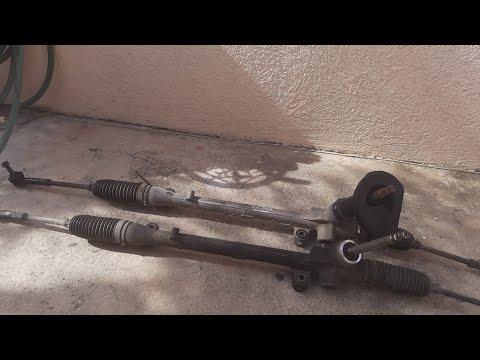

• If you have EPS codes pointing to internal rack motor/module failure: the usual fix is replacing the electric steering rack assembly, then performing an alignment and often steering angle/EPS calibration with a capable scan tool.
• If your issue is “pull” or uneven steering feel with no EPS codes: you may need tires/alignment/suspension checks instead of EPS parts.

---

✅ After Repair

• Clear EPS codes with the OBD2 scan tool with EPS/ABS capability (specialty) and re-check which codes return.
• Test drive in a safe area: verify assist is normal and the steering wheel returns to center smoothly.
• If any steering/suspension parts were replaced: get a 4-wheel alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$350 (diagnosis) / $1,200-$2,500 (EPS rack replacement + alignment)

DIY Cost: $0-$50 (checks) / $600-$1,600 (rack parts only, if needed)

You Save: $150-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours (checks) or 4-8 hours (rack).

---
