🔧 Cherokee - Timing Belt Clarification

Your Cherokee’s 3.2L V6 does not use a timing belt—it uses a timing chain inside the engine. A timing chain isn’t a normal maintenance item like a belt; it’s only replaced if there’s a confirmed problem (chain stretch, failed guides/tensioner, front cover oil leak repair, etc.).

Difficulty Level: Advanced | Estimated Time: Timing chain: 8-14 hours (shop-level). Accessory belt (common mix-up): 0.5-1.0 hours

---

⚠️ Safety & Precautions

• 🛑 Let the engine cool fully before working near the radiator/fans.
• 🛑 Keep hands/tools clear of the radiator fan area; fans can run unexpectedly.
• 🛑 If you’ll be working from underneath, support the Cherokee with jack stands on solid ground.
• 🛑 Battery disconnect is not required for the accessory belt, but it’s okay to disconnect the negative terminal if you want extra safety.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive breaker bar
• Trim clip removal tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Accessory drive belt (serpentine belt) - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground and set the parking brake.
• 🧰 Place wheel chocks behind the rear wheels.

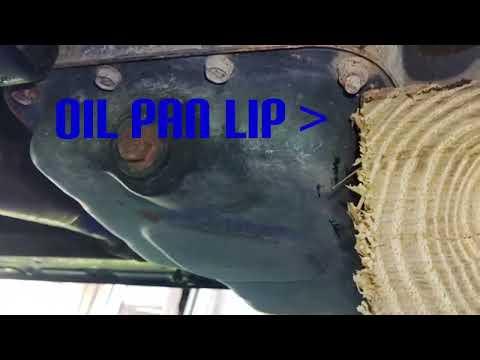

• 🧰 If you need underside access, lift the front with a floor jack and support it securely on jack stands.
• 🧰 Take a quick photo (or sketch) of the belt routing before removal. If there’s a belt-routing sticker under the hood, use that.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm what you’re replacing

• Look at the front of the engine with a flashlight.
• If you see an exposed belt that runs around multiple pulleys, that’s the accessory/serpentine belt.
• The timing chain is not visible without major disassembly (front cover removal).

Step 2: Get access to the belt area

• Open the hood and locate the belt on the passenger side/front of the engine.
• If access is tight from above, remove the lower splash shield using a trim clip removal tool (and any fasteners you can remove with your ratchet as equipped).

Step 3: Relieve belt tension (using the tensioner)

• Fit a 15mm socket on the belt tensioner bolt.
• Use a 3/8" drive breaker bar (or 3/8" ratchet) to rotate the tensioner and take tension off the belt.
• Keep fingers clear of pinch points.

Step 4: Remove the old belt

• While holding the tensioner rotated with the breaker bar, slip the belt off the easiest-to-reach pulley (usually a smooth idler).
• Slowly release the tensioner back to rest.
• Remove the belt from the remaining pulleys by hand.

Step 5: Route the new belt

• Compare the new belt to the old one (length and rib count should match).
• Route the new belt around the pulleys following the under-hood routing diagram (or your photo).
• Make sure the ribbed side sits fully in the grooves of every ribbed pulley.

Step 6: Re-apply tension and final checks

• Rotate the tensioner again with the 15mm socket and breaker bar.
• Slip the belt over the last pulley, then slowly release the tensioner.
• Re-check every pulley: the belt must be centered and fully seated.

Step 7: Reinstall splash shield (if removed)

• Reinstall the splash shield using the trim clip removal tool to refit clips.
• If the Cherokee is on jack stands, lower it safely using the floor jack.

---

✅ After Repair

• Start the engine and let it idle for 20–30 seconds.
• Listen for chirping/squealing and watch the belt to confirm it tracks smoothly.
• Turn the A/C on briefly—if the belt is misrouted, you’ll often hear noise immediately.
• If the belt walks off a pulley, shut the engine off and re-check routing and seating.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (accessory belt parts + labor)

DIY Cost: $30-$80 (parts only)

You Save: $120-$220 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
