🔧 Grand Caravan - Timing Chain Service (No Timing Belt)

Your Grand Caravan’s 3.6L Pentastar uses a timing chain, not a timing belt—so there’s no normal “timing belt replacement” interval. If you’re having chain-related issues (rattle on cold start, cam/crank correlation codes, poor running), the repair is a full timing chain/guides/tensioners service, which is a major engine-front teardown.

Difficulty Level: Advanced | Estimated Time: 10-16 hours

---

⚠️ Safety & Precautions

• 🧯 Let the engine cool fully before draining coolant or working near the radiator.
• 🧤 Support the engine before removing the right-side engine mount (the engine can drop).
• 🔋 Disconnect the negative battery cable to prevent accidental cranking.
• 🛑 Keep fingers/clothes clear of the belt and pulleys; do not “bump” the starter.
• 🧠 If timing is set wrong, the engine can be damaged on startup—this job requires precision.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Trim clip removal tool
• Serpentine belt tool (specialty)
• Socket set 8mm-21mm
• Deep socket set 10mm-18mm
• Torx bit set T20-T40
• E-Torx socket set E10-E14
• Breaker bar 1/2-inch drive
• Torque wrench 3/8-inch drive (10-100 ft-lbs)
• Torque wrench 1/2-inch drive (50-250 ft-lbs)
• Harmonic balancer puller kit (specialty)
• Crankshaft pulley holding tool (specialty)
• Engine support bar (specialty)
• Gasket scraper (plastic)
• Razor scraper
• Brake cleaner spray
• RTV silicone gasket maker (engine oil resistant)
• Timing chain alignment/holding tool kit for 3.6L (specialty)
• Paint marker
• Funnel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain set (primary and secondary chains) - Qty: 1
• Timing chain guide set - Qty: 1
• Timing chain tensioner set - Qty: 1
• Timing cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Water pump gasket or O-ring (if removed) - Qty: 1
• Serpentine belt (recommended while apart) - Qty: 1
• Engine oil and filter - Qty: 6 quarts
• Engine coolant (Mopar-compatible OAT) - Qty: 2-3 gallons premix

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Disconnect the battery using a 10mm socket on the negative terminal.
• Raise the front and support the van on jack stands at the proper lift points.
• Plan to have the OEM torque specs available. This job has many critical fasteners.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove covers and drain fluids

• Place a drain pan under the radiator drain and drain coolant (open with hand/pliers as needed).
• Drain engine oil using a 13mm socket for the drain plug (common size), then remove the oil filter by hand.
• Remove the upper engine cover (pull up) and any intake ducting using an 8mm socket or flat screwdriver if equipped.

Step 2: Remove the right front wheel and splash shielding

• Remove the right front wheel using a 19mm socket.
• Remove the inner fender/splash shield fasteners using a trim clip removal tool and 8mm socket.

Step 3: Support the engine and remove the right engine mount

• Install an engine support bar (specialty) across the strut towers and take the weight of the engine. (An engine support bar holds the engine from above.)
• Remove the right-side engine mount fasteners using an E-Torx socket set and socket set.
• Torque: Torque all mount fasteners to OEM specification.

Step 4: Remove the serpentine belt and front accessories

• Relieve belt tension using a serpentine belt tool (specialty), then remove the belt.
• Remove accessory components that block the timing cover (typical items: alternator, A/C compressor reposition, idlers) using a socket set 10mm-15mm and E-Torx socket set.
• Torque: Torque accessory fasteners to OEM specification.

Step 5: Remove the crankshaft pulley (harmonic balancer)

• Hold the crank pulley using a crankshaft pulley holding tool (specialty).
• Remove the crank bolt using a breaker bar 1/2-inch drive and appropriate socket.
• Remove the pulley using a harmonic balancer puller kit (specialty).
• Torque: Crank bolt must be torqued to OEM specification (this is critical).

Step 6: Remove the timing cover

• Remove timing cover bolts using a socket set 8mm-13mm and E-Torx socket set.
• Carefully separate the cover without gouging aluminum. Use a plastic gasket scraper, not a screwdriver.
• Clean mating surfaces using a razor scraper lightly and brake cleaner spray. Clean metal seals best.

Step 7: Set cylinder #1 to Top Dead Center (TDC) on compression

• Rotate the engine by hand using a socket and breaker bar on the crank until timing marks align.
• Install the timing chain alignment/holding tool kit for 3.6L (specialty) to lock/hold cam phasers as required. (A cam phaser is the cam timing adjuster.)
• Add your own reference marks with a paint marker before disassembly.

Step 8: Remove tensioners, guides, and timing chains

• Relieve and remove chain tensioners using a socket set.
• Remove chain guides using a socket set.
• Remove the chains carefully, keeping left/right and primary/secondary organized.
• Torque: Torque guide and tensioner fasteners to OEM specification.

Step 9: Install new chains, guides, and tensioners (timing alignment)

• Install new guides using a socket set.

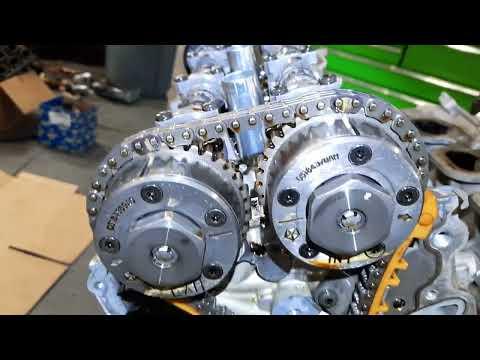

• Align colored chain links to the correct timing marks on the crank sprocket and cam phasers.
• Install new tensioners using a socket set, then release/activate them per the kit instructions.
• Remove holding tools and rotate the engine by hand 2 full turns using a breaker bar, then re-check timing marks.
• If marks don’t line up, stop and re-time.

Step 10: Reinstall timing cover with sealant

• Install a new front crankshaft seal into the timing cover if required, using an appropriate socket as a driver (tap evenly).
• Apply RTV silicone gasket maker only where the OEM procedure calls for it (commonly at seam joints).
• Reinstall the timing cover and hand-start all bolts, then tighten in stages using a torque wrench 3/8-inch drive.
• Torque: Torque timing cover fasteners to OEM specification.

Step 11: Reinstall crank pulley, mounts, belt, and remaining parts

• Reinstall the crank pulley and crank bolt using a torque wrench 1/2-inch drive and crankshaft pulley holding tool (specialty).
• Torque: Crank bolt to OEM specification (critical).
• Reinstall the engine mount using E-Torx socket set and a torque wrench.
• Reinstall accessories, then route and install the serpentine belt using a serpentine belt tool (specialty).

Step 12: Refill fluids

• Install a new oil filter (hand tight), then refill oil using a funnel.
• Refill coolant with Mopar-compatible OAT coolant using a funnel.
• Bleed air from the cooling system (follow the OEM bleed procedure for your A/C-heater settings and bleed points).

---

✅ After Repair

• Start the engine and listen for abnormal rattle. Shut down immediately if noise is severe.
• Check for oil leaks around the timing cover and crank seal.
• Bring the engine to operating temperature, then recheck coolant level after it cools.
• If you had a check engine light, clear codes with a scan tool and confirm none return.
• Test drive gently, then recheck for leaks again.

---

💰 DIY vs Shop Cost

Shop Cost: $1,800-$3,500 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $1,450-$2,600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 10-16 hours.

---
