🔧 Fusion - Engine Start System (No Traditional Starter)

Your Fusion Hybrid does not use a conventional 12V starter motor you can replace. The gas engine is started by an electric motor/generator inside the eCVT transaxle, so a “starter replacement” isn’t a normal service item.

If the engine won’t crank/start, the most common causes are the 12V battery, power/ground connections, or a hybrid control fault that needs a scan.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.5 hours (basic checks / 12V battery service)

---

⚠️ Safety & Precautions

• ⚠️ Hybrid warning: Do not touch orange high-voltage cables or connectors.
• ⚠️ Always power the car OFF and keep the key/fob 20+ feet away so it can’t wake up.
• ⚠️ If you disconnect the 12V battery, you may lose saved settings; keep windows/doors open so you don’t lock yourself out.
• ⚠️ If you smell burning/electrical odor or see melted wiring, stop and have it towed to a shop.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 1/4" ratchet
• 3/8" ratchet
• 6" extension
• Trim clip removal tool
• Torque wrench (10–30 Nm range)
• Digital multimeter
• OBD2 scan tool capable of Ford hybrid codes (specialty)
• Battery terminal puller (specialty)
• Battery post cleaning brush
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (Group 96R/H6, AGM as equipped) - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2
• Battery terminal protectant spray - Qty: 1
• Replacement fuses (low-profile mini, assorted) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Power the car OFF and keep the key/fob far away.
• Open the trunk and driver door before 12V disconnection (prevents lockout).
• If you’re using a scan tool, plug it into the OBD port under the dash before you start removing anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm what “starter problem” means on your Fusion

• Turn the car ON and look for “READY” on the cluster.
• If the dash comes on but there is no READY, the issue is often 12V power or a stored fault—not a starter motor.
• Use an OBD2 scan tool capable of Ford hybrid codes (specialty) to read codes from PCM/HPCM/BCM (hybrid modules). Write codes down first.

Step 2: Check 12V battery voltage (most common no-start cause)

• Set your digital multimeter to DC volts.
• Measure across the 12V battery posts: red lead to +, black to −.
• As a quick guide: ~12.6V = healthy, ~12.2V = weak, ~12.0V or less = likely bad/discharged.

Step 3: Inspect and clean battery terminals (poor connection = “dead car”)

• Use a 10mm socket to loosen the negative (−) terminal clamp and remove it.
• Use a 10mm socket to loosen the positive (+) terminal clamp and remove it.
• Clean the battery posts and terminal insides using a battery post cleaning brush.
• Install battery terminal anti-corrosion pads, then reconnect positive first, negative last.
• Tighten terminal clamps with a 10mm socket until snug (do not crush the clamps).

Step 4: Check the main 12V fuses related to start/ignition

• Open the underhood fuse box and remove the cover using a trim clip removal tool as needed.
• Using your digital multimeter, check suspect fuses for continuity (or use the test points on top of the fuse).
• Replace any blown fuse with the same rating using replacement fuses (low-profile mini, assorted).

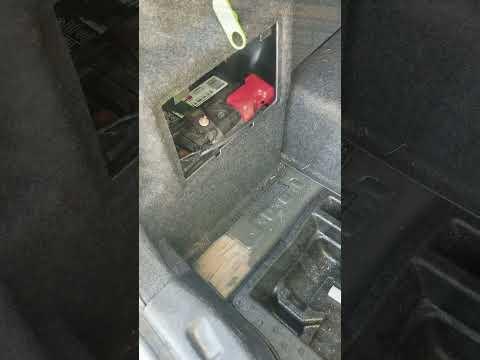

Step 5: If the 12V battery is weak, replace it (common fix)

• Disconnect negative then positive using a 10mm socket.
• Remove the battery hold-down using a 13mm socket (location can vary by battery tray style).
• Lift out the battery carefully (it’s heavy) and install the new 12V battery (Group 96R/H6, AGM as equipped).
• Reinstall hold-down and tighten using a torque wrench: Torque to 20 Nm (15 ft-lbs) if your hold-down uses an M8-style fastener. If it feels too tight, stop.
• Reconnect positive then negative using a 10mm socket, then apply battery terminal protectant spray.

Step 6: Recheck operation

• Turn the car ON and confirm it shows “READY”.
• Use the OBD2 scan tool capable of Ford hybrid codes (specialty) to clear codes only after you record them.

---

✅ After Repair

• Confirm the car consistently goes to “READY” and the engine starts normally when requested.
• Recheck battery voltage with the digital multimeter; in READY mode the DC/DC converter usually brings system voltage up (often ~13.5–14.8V).
• If codes return (especially hybrid/inverter/transaxle codes), stop DIY and schedule a hybrid-capable diagnostic.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$350 (diagnosis / 12V battery service) or $4,000-$7,500+ (if an internal hybrid transaxle/motor-generator issue is confirmed)

DIY Cost: $200-$380 (12V battery + supplies)

You Save: $0-$200 by doing it yourself (for the common 12V fix)

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.5 hours (for 12V checks/battery replacement).

---
