🔧 Focus - Timing Chain Replacement (No Timing Belt)

Your Focus with the 2.0L engine uses a timing chain, not a timing belt. So there is no timing belt to replace; the equivalent repair is replacing the timing chain, guides, and tensioner if they’re worn/noisy or if timing-related faults are present.

Difficulty Level: Advanced | Estimated Time: 6-10 hours

Assumption: Stock 2.0L with factory timing chain setup.

---

⚠️ Safety & Precautions

• 🛑 Let the engine cool fully before opening the cooling system.
• 🛑 Disconnect the negative battery cable to prevent accidental starts.
• 🛑 Support the engine before removing the right-side engine mount.
• 🛑 Do not rotate the crank/cams with the chain removed unless properly locked.
• 🛑 Keep hands clear when releasing the chain tensioner (spring/oil pressure loaded).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (10-quart minimum)
• Funnel
• Trim clip remover
• Flat-blade screwdriver
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 18mm socket
• 21mm socket
• 3/8" ratchet
• 1/2" breaker bar
• Socket extensions (3" and 6")
• Torque wrench (10-150 ft-lbs range)
• Serpentine belt tool (long handle)
• Harmonic balancer puller kit
• Crank pulley holding tool (specialty)
• Camshaft/crankshaft timing locking kit (specialty)
• Gasket scraper (plastic)
• Brake cleaner spray
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit (chain + guides + tensioner) - Qty: 1
• Front timing cover gasket set - Qty: 1
• Valve cover gasket - Qty: 1
• Front crankshaft seal - Qty: 1
• RTV silicone sealant (engine-safe) - Qty: 1
• Engine oil (5W-20 synthetic blend or full synthetic) - Qty: 5 quarts
• Oil filter - Qty: 1
• Engine coolant (Motorcraft Orange equivalent, prediluted 50/50) - Qty: 2-3 gallons
• Accessory drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Disconnect the battery with a 10mm socket (negative terminal first).
• Raise the front safely using a floor jack and support with jack stands.
• Plan to change the oil and coolant after reassembly (fluids can get contaminated during this job).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the splash shield and access the crank pulley

• Use a trim clip remover and 8mm socket to remove the lower splash shield fasteners.
• Remove the right-front wheel if needed for side access (use a floor jack and jack stands as required).

Step 2: Drain coolant and engine oil

• Place a drain pan (10-quart minimum) under the radiator and open the drain using a flat-blade screwdriver if equipped.
• Drain engine oil into the drain pan and plan to install a new oil filter later (use appropriate socket/wrench for your drain plug and filter style).

Step 3: Support the engine and remove the right engine mount

• Place a floor jack (rated 3-ton minimum) under the engine with a safe lifting point and gently take the engine’s weight.
• Use 15mm socket, 18mm socket, ratchet, and extensions to remove the right engine mount and bracket as needed.
• Lift only enough to unload the mount.

Step 4: Remove the accessory drive belt

• Use a serpentine belt tool (long handle) to rotate the tensioner and slip the belt off.
• If reusing the belt (not recommended), note the routing before removal.

Step 5: Remove the crank pulley (harmonic balancer)

• Use a crank pulley holding tool (specialty) to keep the pulley from turning (this tool holds the pulley while you loosen the bolt).
• Use a 21mm socket and 1/2" breaker bar to remove the crank bolt.
• If the pulley is stuck, use a harmonic balancer puller kit to remove it carefully.
• Torque to Ford specification during reassembly (this bolt is typically torque-to-yield on many engines, so replacement may be required if your parts kit includes it).

Step 6: Remove the valve cover (for timing access)

• Disconnect any hoses/connectors in the way using a flat-blade screwdriver as needed.
• Use a 10mm socket to remove valve cover bolts, then lift the cover off.
• Clean sealing surfaces with a gasket scraper (plastic) and brake cleaner spray on shop rags.

Step 7: Remove the front timing cover

• Use 8mm socket, 10mm socket, and 13mm socket to remove the timing cover fasteners.
• Gently break the seal and remove the cover without prying hard against aluminum surfaces.
• Remove the old front crankshaft seal if it stays in the cover (use a careful technique so you don’t scratch the sealing surface).

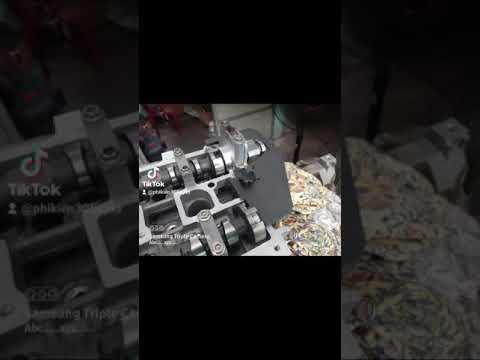

Step 8: Set the engine at Top Dead Center (TDC) and lock the timing

• Rotate the engine by hand using a 21mm socket and 1/2" breaker bar on the crank (clockwise only unless Ford service info states otherwise).
• Install the camshaft/crankshaft timing locking kit (specialty) (this kit pins/locks the engine so timing can’t slip while the chain is off).
• Torque to Ford specification for any locking-tool-related fasteners if your kit uses them.

Step 9: Remove the timing chain tensioner, guides, and chain

• Use the correct socket (commonly 10mm socket) and a ratchet to remove the tensioner.
• Remove timing guides with the appropriate sockets (commonly 8mm socket or 10mm socket).
• Lift the chain off the sprockets while the engine is locked.

Step 10: Install the new chain, guides, and tensioner

• Install new guides using the appropriate socket and torque wrench; Torque to Ford specification.
• Install the new chain, aligning colored links/marks with the sprocket timing marks (follow the kit instructions plus Ford timing mark locations).
• Install the new tensioner (some must be “pinned” then released); use a ratchet and torque wrench and Torque to Ford specification.
• Double-check marks before removing locks.

Step 11: Verify timing by hand rotation

• Remove the locking tools, then rotate the engine by hand two full turns using a 21mm socket and breaker bar.
• Reinstall the locking tools to confirm the engine returns to the correct locked position and timing marks align.
• If anything binds, stop and recheck timing immediately.

Step 12: Reinstall timing cover, valve cover, and crank pulley

• Clean mating surfaces using a gasket scraper (plastic) and brake cleaner spray.
• Apply RTV silicone sealant (engine-safe) only where Ford sealing points require it (typically joints/corners).
• Install the timing cover bolts using a ratchet and finish with a torque wrench; Torque to Ford specification.
• Install the valve cover with a new gasket using a 10mm socket and torque wrench; Torque to Ford specification.
• Reinstall the crank pulley using the crank pulley holding tool (specialty) and a torque wrench; Torque to Ford specification.

Step 13: Reinstall engine mount and belt

• Reinstall the engine mount and bracket using 15mm socket, 18mm socket, and a torque wrench; Torque to Ford specification.
• Install the accessory belt using the serpentine belt tool (long handle) and confirm it’s seated on every pulley.

Step 14: Refill fluids and reassemble underbody panels

• Install a new oil filter and refill oil using a funnel.
• Refill coolant using a funnel.
• Reinstall the splash shield using a trim clip remover and 8mm socket.
• Reconnect the battery using a 10mm socket (negative cable last).

---

✅ After Repair

• Start the engine and let it idle; listen for abnormal rattles near the timing cover.
• Check for oil leaks at the timing cover, valve cover, and front crank seal area.
• Bring the engine to operating temperature and confirm the heater blows hot (helps confirm coolant circulation).
• Recheck coolant level after the first full heat cycle and top off as needed.
• If the check engine light appears, have the codes read (many parts stores can scan).

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor)

DIY Cost: $250-$600 (parts only)

You Save: $950-$1,600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 6-10 hours.

---
