🔧 Corolla - Power Steering Pump Replacement

On your Corolla, Toyota used an Electric Power Steering (EPS) system, which means there is typically no hydraulic power steering pump, no belt-driven pump, and no power steering fluid to replace.

Before we jump into parts removal, we need to confirm what you’re seeing—many “power steering” problems on your Corolla are EPS electrical issues (motor, torque sensor, wiring, or rack), not a pump.

Difficulty Level: Beginner (verification) / Advanced (EPS rack replacement) | Estimated Time: 0.2-0.5 hours (verification)

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF and remove the key before working near the steering column or rack.
• ⚠️ Disconnect the negative battery cable if you’ll unplug EPS connectors.
• ⚠️ If you raise the front end, support it with jack stands on a solid, level surface.
• ⚠️ Keep fingers clear of the steering shaft and joints while checking movement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Flashlight
• 10mm socket
• 3/8" ratchet
• Trim clip tool
• OBD2 scan tool with ABS/EPS capability (specialty)
• Multimeter (specialty)
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Electric power steering rack assembly - Qty: 1
• Steering rack mounting hardware - Qty: 1
• Outer tie rod ends - Qty: 2 Replace in pairs

---

📋 Before You Begin

• Park on level ground, set the parking brake, and center the steering wheel.
• Turn the ignition OFF and wait 2 minutes before unplugging steering-related connectors.
• If you plan to unplug EPS connectors, disconnect the battery negative cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm whether your Corolla even has a “pump”

• Open the hood and use a flashlight to look for a power steering fluid reservoir (a small plastic tank marked “POWER STEERING” with hoses).
• If you do not see a reservoir or hydraulic hoses, your Corolla is EPS and does not have a pump to replace.
• If you do see a reservoir and hoses, stop here and tell me—something doesn’t match, and I’ll give you the correct pump procedure.

Step 2: Check for EPS warning signs

• Turn ignition ON (engine can be OFF) and look at the cluster for an EPS/steering warning light.
• Use an OBD2 scan tool with ABS/EPS capability (specialty) to read EPS/steering codes (not just engine codes).
• Write down the exact codes and description.

Step 3: Quick under-dash connector check (basic)

• Turn ignition OFF and disconnect battery negative using a 10mm socket.
• Use a trim clip tool to carefully remove the lower dash panel near the steering column (if equipped with clips).
• Use a flashlight to check for loose connectors at the steering column area.
• Don’t force connectors—inspect first.

Step 4: Decide the correct repair path

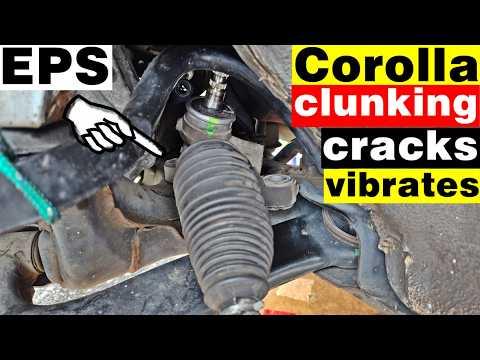

• If you have EPS codes pointing to the rack/motor, the common repair is EPS rack assembly replacement (advanced and requires an alignment afterward).
• If codes point to battery/charging voltage, test power and ground first using a multimeter (specialty).

---

✅ After Repair

• Clear EPS codes with an OBD2 scan tool with ABS/EPS capability (specialty) and recheck for return codes.
• Road-test in a safe area: verify steering assist feels normal and the warning light stays off.
• If the rack or tie rods were replaced, get a 4-wheel alignment immediately.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$2,000 (parts + labor, EPS rack replacement)

DIY Cost: $450-$1,200 (parts only, EPS rack replacement)

You Save: $450-$800 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

---

Quick check (answer these and I’ll give you the exact correct procedure):

• Do you see a power steering fluid reservoir and hoses under the hood?
• What’s the symptom: hard steering, whining noise, or an EPS/steering warning light?
