🔧 Corolla - Timing Belt Replacement (Not Applicable) / Timing Chain Info

Your Corolla’s 1.8L engine uses a timing chain, not a timing belt. That means there is no routine “timing belt replacement” service interval like on older belt-driven engines.

If you’re hearing rattling on cold start or you have timing-related check-engine codes, the correct repair is diagnosing (and only if needed) servicing/replacing the timing chain system (chain, guides, tensioner).

Difficulty Level: Advanced | Estimated Time: 6-12 hours (chain replacement if required)

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine; hot coolant/exhaust can burn you.
• ⚠️ Disconnect the negative battery cable with a 10mm wrench before any disassembly.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ If an engine mount is removed, support the engine with a support bar or floor jack + wood block.
• ⚠️ Keep fingers/tools clear when rotating the crankshaft.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm wrench
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 19mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar (24" minimum)
• Torque wrench (10-80 ft-lbs range)
• Torque wrench (50-250 ft-lbs range)
• Serpentine belt tool (14mm)
• Trim clip remover
• Flat-blade screwdriver
• Plastic scraper
• Drain pan (at least 2-gallon)
• Fender cover
• Engine support bar (specialty)
• Crank pulley holding tool (specialty)
• Harmonic balancer puller kit (specialty)
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit (chain, guides, tensioner) - Qty: 1
• Timing cover sealant (RTV) - Qty: 1
• Valve cover gasket - Qty: 1
• Crankshaft front oil seal - Qty: 1
• Serpentine drive belt - Qty: 1
• Engine oil (0W-20 full synthetic) - Qty: 5 quarts
• Oil filter - Qty: 1
• Engine coolant (Toyota Super Long Life Coolant compatible) - Qty: 1 gallon
• Brake cleaner - Qty: 1
• Shop towels - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Disconnect the battery negative terminal using a 10mm wrench.
• Raise the front-right corner with a floor jack and support with jack stands.
• Remove the right front wheel using a 19mm socket.
• Timing chain work is precise—stay organized.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm this engine uses a timing chain

• Use your OBD2 scan tool to check for timing correlation codes (common examples are P0016/P0017). This doesn’t “prove” chain wear, but it tells you if timing is being detected as off.
• Understand the terms: a timing chain is a metal chain inside the engine; a tensioner uses oil pressure and a spring to keep the chain tight.

Step 2: Remove top covers and access the belt drive

• Remove the plastic engine cover by pulling upward by hand.
• Remove any upper splash/trim pieces using a trim clip remover and 10mm socket.
• Relieve belt tension using a serpentine belt tool (14mm), then slip the belt off and remove it.

Step 3: Remove the right-side splash shield and support the engine

• Remove the right inner fender liner/splash shield using a trim clip remover and 10mm socket.
• Install an engine support bar (specialty) across the fenders, or support the engine from below with a floor jack (rated 3-ton minimum) and a wood block.

Step 4: Remove the crank pulley

• Hold the crank pulley with a crank pulley holding tool (specialty).
• Loosen the crank bolt using a 1/2" drive breaker bar and appropriate 19mm socket.
• If the pulley is stuck, use a harmonic balancer puller kit (specialty) to remove it.
• Don’t pry on the timing cover.

Step 5: Drain coolant (if timing cover removal requires it)

• Place a drain pan (at least 2-gallon) under the radiator.
• Open the drain and drain enough coolant to prevent spills during cover removal.

Step 6: Remove the valve cover

• Unplug ignition coils and remove coil bolts using a 10mm socket.
• Remove valve cover fasteners using a 10mm socket, then lift the cover off.
• Clean gasket surfaces with a plastic scraper and brake cleaner.
• Torque specs: Use manufacturer-specific torque values for the valve cover fasteners (varies by fastener type/location).

Step 7: Set cylinder #1 to Top Dead Center (TDC) on compression

• Rotate the crankshaft clockwise using a 19mm socket and 3/8" drive ratchet until timing marks align.
• TDC means the piston is at the top of its travel; “compression” means both intake/exhaust valves are closed.
• Important: Do not rotate counterclockwise to “back up” to a mark—go around again clockwise.

Step 8: Remove the timing cover

• Remove timing cover bolts using 10mm socket, 12mm socket, and 14mm socket as required.
• Break the RTV seal carefully with a flat-blade screwdriver only at designed pry points.
• Remove the cover and keep bolt locations organized (lengths vary).

Step 9: Replace chain, guides, and tensioner (only if needed)

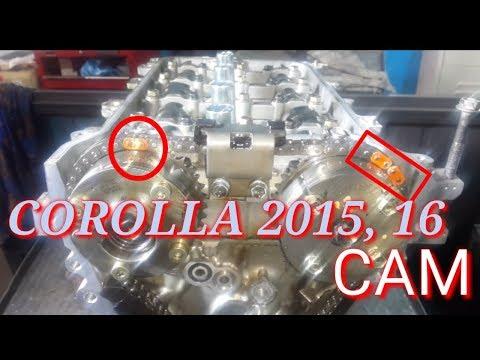

• Verify colored chain links align with cam/crank timing marks before removal.
• Remove the tensioner and guides using the correct 10mm socket or 12mm socket.
• Install the new guides and tensioner, then install the new chain with colored links aligned to the marks.
• Torque specs: Timing component fastener torque is critical and varies—use Toyota service specifications for each fastener.

Step 10: Reseal and reassemble

• Clean mating surfaces with a plastic scraper and brake cleaner.
• Apply timing cover sealant (RTV) per the sealant’s bead-size instructions, then reinstall the cover.
• Reinstall crank seal (if replacing) and crank pulley.
• Torque specs: Crank pulley bolt torque is high and may be torque-angle; use Toyota service specifications.
• Reinstall valve cover with a new valve cover gasket.
• Reinstall the serpentine belt using a serpentine belt tool (14mm).
• Reinstall splash shield and wheel; tighten lug nuts with a torque wrench (50-250 ft-lbs range) using Toyota lug torque specification.

---

✅ After Repair

• Refill coolant and engine oil (if drained) using a drain pan and a clean funnel (use the correct fluid types listed above).
• Reconnect the battery negative terminal using a 10mm wrench.
• Start the engine and listen for abnormal rattles; a brief initial oil-pressure build is normal, but loud ongoing chain noise is not.
• Check carefully for oil/coolant leaks around the timing cover and valve cover.
• Clear codes and recheck with the OBD2 scan tool after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,400 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $950-$1,750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 6-12 hours.

---
