🔧 Timing Chain - Service Guidance (Not a Timing Belt)

Your Accord’s 2.4L engine uses a timing chain, not a timing belt—so there’s no routine “timing belt replacement” interval. Timing chains are usually replaced only if there’s a problem (cold-start rattle, stretched chain, or timing-related trouble codes).

Difficulty Level: Advanced | Estimated Time: 6-12 hours (replacement), 0.5-1.5 hours (inspection)

---

⚠️ Safety & Precautions

• 🧯 Work on a cool engine; hot coolant/oil can burn you.
• 🔋 If you’ll remove engine mounts or the starter area is near your work, disconnect the negative battery cable with a 10mm wrench.
• 🧱 If lifting the front, support the car on jack stands (rated 3-ton minimum)—never rely on a jack alone.
• 🛑 Do not rotate the engine backward; rotate only clockwise at the crank.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 8mm socket
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 19mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-200 ft-lbs range)
• Flat trim tool
• Pry bar
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Work light
• Safety glasses
• Nitrile gloves
• Drain pan
• Honda crank pulley holding tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit (chain + guides) - Qty: 1
• Timing chain tensioner - Qty: 1
• Valve cover gasket set - Qty: 1
• Timing cover sealant (HondaBond/RTV equivalent) - Qty: 1
• Engine oil (0W-20 full synthetic) - Qty: 5 quarts
• Oil filter - Qty: 1
• Coolant (Honda Type 2 equivalent premix) - Qty: 1-2 gallons
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• If you’ll open the timing cover, plan for an oil change and some coolant loss (have a drain pan ready).
• Have the Honda crank pulley holding tool (specialty) before starting—this job often stops without it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the problem (chain vs normal noise)

• If you hear a brief rattle only on cold start (1–2 seconds), it can be a worn tensioner or VTC-related noise; constant rattle is more concerning.
• Check oil level/condition first; use the dipstick and top off if low. Low oil can mimic timing issues.

Step 2: Pull codes if the check engine light is on

• If you have a scan tool, check for timing-related codes (examples: cam/crank correlation-type faults).
• If you tell me the exact codes, I can guide whether you need a chain, tensioner, or a different fix.

Step 3: Do a top-end inspection (no timing cover removal yet)

• Disconnect the negative battery cable using a 10mm wrench.
• Remove the engine cover/air ducting as needed using a 10mm socket and flat trim tool.
• Remove the ignition coils using a 10mm socket, then remove the valve cover fasteners using a 10mm socket.
• Lift off the valve cover and inspect for heavy sludge and guide damage signs.
• Reinstall the valve cover with a new gasket as needed and tighten evenly: Torque to 12 Nm (9 ft-lbs).

Step 4: Decide your path (inspection result)

• If oil is clean and there’s no consistent rattle or codes, you usually do not replace the chain.
• If you have consistent rattle, timing-related codes, or evidence of wear, plan for full timing chain service (front cover removal).

Step 5: (If replacing) Prepare for crank pulley removal

• Raise the front safely using a floor jack and support with jack stands (rated 3-ton minimum).
• Remove the splash shield using an 8mm socket and flat trim tool.
• Remove the serpentine belt (release tension with a 14mm socket on the tensioner).
• Hold the crank pulley with the Honda crank pulley holding tool (specialty) and loosen the crank bolt using a 19mm socket and 1/2" breaker bar.
• Reinstall crank bolt later with: Torque to 245 Nm (181 ft-lbs).

Step 6: (If replacing) Replace chain, guides, and tensioner

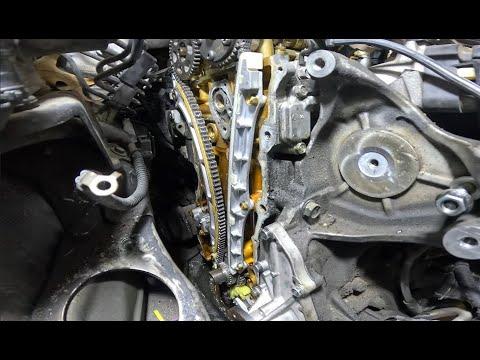

• This requires setting the engine at TDC, removing the timing cover, aligning timing marks, and resealing the cover with timing cover sealant (HondaBond/RTV equivalent).
• Because Honda used multiple timing mark layouts/fastener torque values across K-series 2.4L variants, I need one detail before I can give you the exact, bolt-by-bolt procedure.

---

✅ After Repair

• Refill engine oil and coolant (if drained), then start the engine and check carefully for oil/coolant leaks.
• Let the engine reach operating temperature and recheck coolant level after it cools down.
• If you had a check engine light, clear codes and confirm they do not return.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $550-$1,700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 6-12 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

---

Two quick questions so I can give you the exact chain-replacement steps for your Accord:

• 🔎 Do you have a check engine light? If yes, what are the exact codes?
• 🔊 Is the noise a 1–2 second cold-start rattle, or a constant rattle while idling/driving?
