🔧 Camry - Timing Belt Replacement

Your Camry’s 2.5L hybrid engine is not equipped with a timing belt. It uses a timing chain, which is designed to last a long time and does not have a normal “replace at X miles” interval like a belt.

If you were quoted for a “timing belt,” it’s likely a misunderstanding (common on engines that actually use belts). What you can do DIY is confirm it’s a chain system and check for symptoms that would justify timing chain service.

Difficulty Level: Beginner (confirm/inspect) | Estimated Time: 0.3-0.7 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the engine and radiator area.
• ⚠️ Keep hands/tools away from moving belts and pulleys if the car is in READY.
• ⚠️ Hybrid caution: avoid touching orange high-voltage cables (high-voltage wiring). This check does not require high-voltage service.
• ⚠️ If you disconnect the 12V battery, you may lose radio presets and window auto-up calibration.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• Trim clip removal tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine oil (0W-20 full synthetic) - Qty: 5 quarts
• Oil filter - Qty: 1
• Drain plug gasket/washer - Qty: 1

---

📋 Before You Begin

• Park on level ground and make sure the car is OFF (not in READY).
• Open the hood and remove any loose clothing/jewelry.
• Tip: A flashlight makes this much easier.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Use your hands to pull up on the plastic engine cover (it’s held by rubber grommets on many Camry engines).
• If yours uses fasteners, use a 10mm socket with a 1/4" drive ratchet to remove them, then lift the cover off.

Step 2: Identify what the visible belt is (it’s not a timing belt)

• Use a flashlight to look at the front/side of the engine for the visible rubber belt.
• That visible belt is the serpentine/accessory belt (it runs add-ons like accessories). A timing belt would be hidden behind large timing covers.

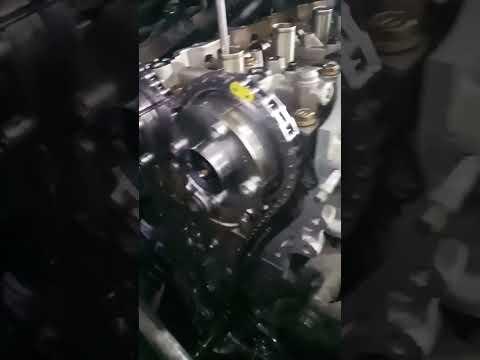

Step 3: Confirm the engine uses a timing chain

• Use a flashlight to look for a large sealed metal/plastic “timing cover” area on the engine—this engine’s timing drive is internal and oil-lubricated (timing chain).
• There is no external timing belt replacement procedure because the chain is inside the engine.

Step 4: Check for symptoms that would justify timing chain service

• With the car OFF, check engine oil level (low oil can cause chain/tensioner noise). Use the dipstick and wipe/reinsert to read.
• Start the car and listen briefly near the engine bay (keep clear of moving parts): a timing chain issue is often a rattle on cold start that lasts more than a second or two.
• If you have a check engine light, do not keep driving hard—timing-related faults should be diagnosed promptly.

Step 5: If your goal was “scheduled maintenance,” do this instead

• Plan regular 0W-20 oil changes. Use the correct oil level and change interval for your driving style.
• Good oil service is the #1 way to protect the timing chain and its tensioner (the tensioner is a spring/oil-pressure device that keeps chain slack under control).

---

✅ After Repair

• Reinstall the engine cover (push down until it seats).
• Do a short test drive and re-check for any new noises.
• If you heard repeated cold-start rattling or have a check engine light, the next step is a professional diagnosis (scan for codes and verify cam/crank timing data).

---

💰 DIY vs Shop Cost

Shop Cost: $0-$0 (no timing belt service exists on your Camry) or $900-$2,500+ (only if timing chain/internal engine repair is actually needed)

DIY Cost: $0-$0 to confirm / $35-$90 (oil change supplies)

You Save: $100-$500+ by avoiding an unnecessary “timing belt” job

Shop labor rates vary but typically run $100-$150/hour. True timing chain work is an advanced, high-labor job.

---
