🔧 X5 - Timing Belt Replacement

Your X5 (3.0L turbo inline-6) does not use a timing belt—it uses a timing chain. So there’s no “timing belt replacement” service to perform; the closest DIY service that addresses common timing-related noise is replacing the timing chain tensioner, which can help with cold-start chain rattle.

Assumption: Stock 3.0L turbo I6 (N55) and you want the common “timing belt” equivalent service (chain tensioner).

Difficulty Level: Intermediate | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a cool engine; hot oil/coolant can burn.
• 🛑 Keep hands/tools clear of the electric fan; it can start unexpectedly.
• 🛑 Use jack stands if you raise the front; never rely on a jack alone.
• 🛑 Clean around the tensioner before removal to keep dirt out of the engine.
• 🛑 Battery disconnect is not required for this job, but keep the key away from the vehicle to prevent wake-ups.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 27mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 Nm range)
• 6" extension (3/8")
• Trim clip removal tool
• Plastic funnel
• Brake cleaner spray
• Shop towels
• Drain pan (at least 7-quart)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain tensioner - Qty: 1
• Tensioner sealing washer - Qty: 1
• Engine oil (BMW-approved full synthetic) - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock a rear wheel.
• Open the hood and remove the top engine cover (it pulls up; use a trim clip tool if it’s stubborn).
• Locate the timing chain tensioner area on the right side of the engine (passenger side in the U.S.).
• Clean the area with brake cleaner spray and shop towels so no grit falls into the opening.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the tensioner

• Remove the top engine cover by pulling upward by hand; use a trim clip removal tool if needed.
• If anything blocks access (intake ducting on some layouts), loosen clamps with a 3/8" drive ratchet and reposition carefully.
• Take a photo before moving hoses.

Step 2: Prepare for a small oil spill

• Place a drain pan under the tensioner area.
• Lay shop towels around the tensioner to catch drips.

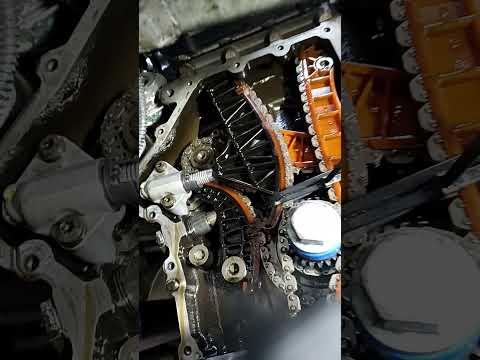

Step 3: Remove the old timing chain tensioner

• Use a 27mm socket, 6" extension (3/8"), and 3/8" drive ratchet to loosen the tensioner.
• Unscrew it the rest of the way by hand while keeping light inward pressure (it is spring-loaded).
• Remove the old sealing washer from the tensioner or engine surface.
• Don’t drop the washer into the engine bay.

Step 4: Install the new tensioner and washer

• Lightly oil the O-ring/threads area of the new tensioner with a little fresh oil using a plastic funnel to avoid mess.
• Place the new sealing washer on the new tensioner.
• Thread the tensioner in by hand first (this prevents cross-threading).
• Use a 27mm socket and 3/8" drive torque wrench (10-100 Nm range) to tighten: Torque to 55 Nm (41 ft-lbs).

Step 5: Reassemble and clean up

• Reinstall any intake ducting you moved using a 3/8" drive ratchet.
• Reinstall the engine cover by pressing it straight down until it seats.
• Wipe off any oil with shop towels and spot-clean with brake cleaner spray.

---

✅ After Repair

• Check the engine oil level and top off with BMW-approved full synthetic if needed.
• Start the engine and let it idle 30–60 seconds; listen for abnormal rattles.
• Inspect around the tensioner for any seepage/leaks.
• Take a short test drive, then recheck for leaks once parked.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$320 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
