🔧 Timing Belt - Not Applicable

Your Corolla does not use a timing belt. It uses a timing chain, which is an internal engine component and is not a routine maintenance item like a belt. There is no standard timing belt replacement procedure for this engine.

Difficulty Level: Advanced | Estimated Time: 0 hours

---

⚠️ Safety & Precautions

• The timing chain service is engine-internal and requires major disassembly.
• Battery disconnect is required before any engine teardown.
• Do not attempt this job without the correct service manual steps and timing tools.
• If the engine is rattling on cold start or has cam/crank correlation codes, diagnose before parts replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Metric wrench set
• Torque wrench
• Breaker bar
• Harmonic balancer puller (specialty)
• Engine support bar
• Drain pan
• Jack stands
• Floor jack
• Safety glasses
• Nitrile gloves
• Service manual timing tool set (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing chain tensioner - Qty: 1
• Timing chain guides - Qty: 1 set
• Front engine cover sealant - Qty: 1
• Valve cover gasket - Qty: 1
• Engine oil - Qty: 1 change
• Engine oil filter - Qty: 1
• Coolant - Qty: as needed

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Disconnect the negative battery cable.
• Drain engine oil and coolant if the front cover removal requires it.
• Mark everything before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm chain service need

• Check for cold-start rattles, timing-related trouble codes, or oil starvation issues before disassembly.
• If the chain is noisy, proceed only with proper timing tools and service data.

Step 2: Remove front engine accessories

• Use the metric socket set and metric wrench set to remove the serpentine belt, engine mount, pulleys, and related brackets as required.
• Support the engine with the engine support bar before removing any mount.

Step 3: Remove the timing cover

• Use the metric socket set to remove the front engine cover bolts.
• Carefully separate the cover without damaging the sealing surfaces.

Step 4: Set engine timing at top dead center

• Use the breaker bar and correct crank bolt tool to rotate the engine by hand to top dead center.
• Align the crankshaft and camshaft timing marks exactly.
• Never force the engine backward.

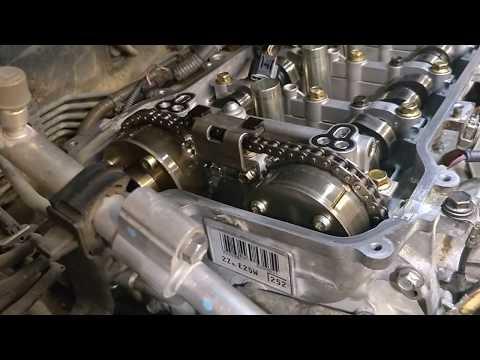

Step 5: Remove the timing components

• Use the metric socket set to remove the chain tensioner and guides.
• Remove the chain and inspect the sprockets for wear.

Step 6: Install the new timing components

• Install the new guides, then the new chain, then the tensioner.
• Double-check all timing marks before releasing tension.
• Torque to factory specification from service data.

Step 7: Reassemble the engine

• Clean the sealing surfaces and apply front engine cover sealant as specified.
• Reinstall the cover, brackets, mount, and belt with the torque wrench.
• Torque to factory specification from service data.

---

✅ After Repair

• Refill engine oil and coolant.
• Reconnect the battery.
• Start the engine and listen for abnormal noise.
• Check for oil or coolant leaks.
• Verify no check-engine light is present.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor)

DIY Cost: $250-$700 (parts only)

You Save: $950-$1,500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 8-12 hours.

---
