🔧 Grand Cherokee - Timing Belt Replacement (Correction: This Engine Uses a Timing Chain)

Your 4.7L V8 does not have a timing belt. It uses a timing chain inside the engine, which is a major teardown job (front cover off, fluids drained, precise timing alignment).

Most people asking for a “timing belt” on this engine actually mean the serpentine belt (the external belt that drives the alternator, A/C, and power steering). Below are the steps to replace the serpentine belt.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep hands/tools away from the fan and pulleys; work with the engine OFF.
• ⚠️ Let the engine cool so you don’t burn yourself on hot parts.
• ⚠️ Do not start the engine until the belt is fully seated on every pulley.
• Battery disconnect is not required, but keep the key out of the ignition.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 15mm socket
• 3/8" drive ratchet
• 3/8" drive breaker bar (18"-24")
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and use a flashlight to find the belt routing diagram (often on the radiator support/underhood area).
• If the routing sticker is missing, take a clear photo of the belt path before removal.
• Two quick questions (so I give you the exact right steps): (1) Do you mean the external serpentine belt (most common) or are you truly trying to service the internal timing chain? (2) Do you have A/C? (Most Limited trims do.)

---

🔨 Step-by-Step Instructions

Follow these steps in order:

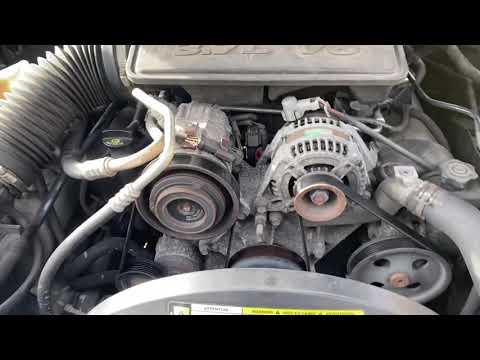

Step 1: Locate the belt tensioner

• Use a flashlight to find the automatic belt tensioner (spring-loaded arm with a pulley). Tensioner = the spring device that keeps belt tight.
• Find the 15mm bolt head on the tensioner arm (this is the lever point).

Step 2: Relieve belt tension

• Install the 15mm socket on the tensioner bolt head using a 3/8" ratchet or 3/8" breaker bar.
• Rotate the tensioner smoothly to release tension (it will feel strong because of the spring).
• While holding the tensioner rotated, slide the belt off the easiest-to-reach top pulley (usually the alternator pulley).

Step 3: Remove the old belt

• Slowly let the tensioner return to its resting position (don’t let it snap back).
• Pull the belt out from the remaining pulleys by hand.
• Use a flashlight to inspect pulleys for wobble or roughness by spinning them by hand (engine OFF).

Step 4: Route the new belt

• Match the new belt to the old belt length and rib count.
• Route the new belt around the pulleys following the underhood routing diagram (leave the easiest top pulley for last).
• Make sure the belt ribs sit fully in the grooved pulleys and the belt sits centered on smooth pulleys.

Step 5: Apply tension and seat the belt

• Use the 15mm socket with the 3/8" breaker bar to rotate the tensioner again.
• Slip the belt onto the final pulley, then slowly release the tensioner.
• Recheck every pulley by sight and touch to confirm the belt is not one-rib off.

---

✅ After Repair

• Start the engine and watch the belt for 15-30 seconds to confirm it tracks smoothly and quietly.
• If you hear squealing or see belt “walking,” shut it off and re-check routing and pulley alignment.
• Tip: A mis-seated rib is the #1 beginner mistake.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 (parts + labor)

DIY Cost: $30-$80 (parts only)

You Save: $90-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
