🔧 Tacoma - Timing Belt Replacement

Your Tacoma’s 4.0L V6 uses a timing chain, not a timing belt—so there’s no normal “timing belt replacement” interval on this engine. Timing chain replacement is only done if there are symptoms (rattle on cold start, cam/crank correlation codes, oil sludge damage) and it’s a big, advanced job.

Quick questions (so I give the right DIY steps): 1) Did you mean the serpentine/accessory drive belt (the belt you can see at the front of the engine)? 2) Are you having any cold-start rattle or a Check Engine Light?

Difficulty Level: Intermediate (accessory belt) / Advanced (timing chain) | Estimated Time: 0.5-1.0 hours (accessory belt) / 10-14 hours (timing chain)

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine—hot fans and pulleys can injure you.
• ⚠️ Keep fingers/clothing clear of the belt path and fan area.
• ⚠️ If you raise the truck, support it with jack stands on solid ground.
• ⚠️ Battery disconnect is not required for accessory belt replacement, but never crank the engine while hands are near the pulleys.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Flashlight
• 14mm combination wrench
• 14mm socket
• 3/8" drive ratchet
• 6" socket extension (3/8" drive)
• Trim clip tool
• Floor jack (rated 2-ton minimum)
• Jack stands (pair, rated 2-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine/accessory drive belt - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, put the transmission in Neutral, and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• 📸 Take a picture of the belt routing, or look for the routing sticker in the engine bay. If there’s no sticker, sketch the path before removal.
• Routing mistakes are the #1 beginner issue.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Get access and confirm the belt routing

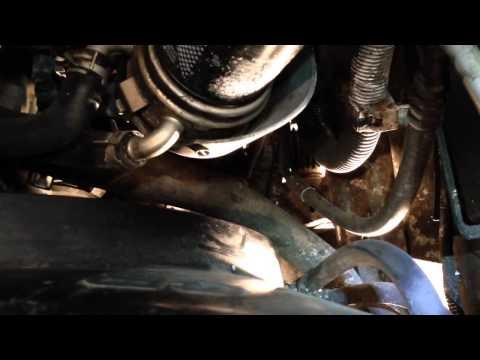

• Use a flashlight to locate the serpentine belt and the belt tensioner (a spring-loaded pulley that keeps belt tension automatically).
• Use your phone to take a clear photo of the belt path around all pulleys.
• If a plastic cover is in the way, remove push-clips using a trim clip tool.

Step 2: Relieve belt tension

• Place a 14mm socket on a 3/8" ratchet with a 6" extension, or use a 14mm wrench on the tensioner’s hex.
• Rotate the tensioner slowly to relieve tension (it will feel strong—this is normal).
• While holding the tensioner, slide the belt off one easy-to-reach pulley (usually an upper smooth idler pulley).
• Move slowly—don’t let the tensioner snap back.

Step 3: Remove the old belt

• Release the tensioner gently back to its resting position using the 14mm wrench or 14mm socket.
• Pull the belt out from the remaining pulleys by hand.
• Inspect pulleys with a flashlight: look for wobble, roughness, or chirping signs (a bad pulley can destroy a new belt).

Step 4: Install the new belt

• Route the new belt to match your photo, leaving one easiest pulley for last.
• Make sure the belt ribs sit fully in the grooved pulleys (it should not ride on the edge).
• Rotate the tensioner again using the 14mm socket and ratchet (or 14mm wrench).
• Slip the belt over the last pulley, then slowly release the tensioner.

Step 5: Double-check alignment

• Use a flashlight to check every pulley: the belt must be centered and fully seated in grooves.
• Reinstall any removed covers/clips using the trim clip tool.

---

✅ After Repair

• 👀 Start the engine and watch the belt for 10-20 seconds—look for wobble, wandering, or squealing.
• 🔇 If you hear chirping/squeal, shut it off and re-check routing and seating on every pulley.
• 🧪 Take a short test drive, then re-check belt alignment once more.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 (parts + labor)

DIY Cost: $25-$70 (parts only)

You Save: $95-$180 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
