🔧 Camry - Timing Belt Replacement (Not Equipped)

Your Camry’s 2.4L engine does not use a timing belt. It uses a timing chain, which is lubricated by engine oil and typically isn’t replaced on a schedule like a belt.

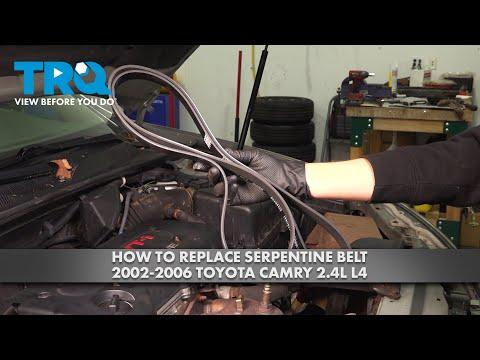

If you’re trying to replace a “belt,” you most likely mean the accessory/serpentine drive belt (the belt that runs the alternator, A/C, etc.).

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; keep hands clear of pulleys.
• ⚠️ Support the car with jack stands if you go through the wheel well.
• ⚠️ Keep the key out of the ignition so nobody cranks the engine.
• Battery disconnect is not required for a belt swap, but avoid shorting the alternator wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm lug nut socket
• Breaker bar 1/2"
• 19mm combination wrench
• 10mm socket
• Ratchet 3/8"
• Trim clip removal tool
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Accessory drive belt - Qty: 1
• Accessory belt tensioner assembly - Qty: 1 (only if noisy/weak)
• Accessory belt idler pulley - Qty: 1 (only if bearing is noisy)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• If working through the passenger wheel well, slightly loosen the passenger-front lug nuts using a 21mm lug nut socket and breaker bar before lifting.
• Take a photo of belt routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front passenger side

• Use a floor jack to lift the front passenger side at the proper jacking point.
• Place the vehicle on jack stands and gently lower onto the stands.
• Remove the wheel using a 21mm lug nut socket and breaker bar.
• Reinstall later: Torque to 103 Nm (76 ft-lbs)

Step 2: Remove the passenger-side splash shield (if equipped)

• Use a 10mm socket and ratchet 3/8" to remove any small bolts.
• Use a trim clip removal tool to pop out plastic clips (a trim clip tool is a small forked pry tool that removes push-clips without breaking them).
• Move the shield aside so you can see the belt and pulleys.

Step 3: Relieve belt tension

• Locate the automatic belt tensioner.
• Place a 19mm combination wrench on the tensioner hex.
• Rotate the tensioner to relieve tension, then slide the belt off a smooth pulley first.
• Keep fingers out of pinch points.

Step 4: Remove the old belt and inspect components

• Remove the belt fully and compare it to the new belt for matching length/rib count.
• Spin the idler pulley by hand and listen/feel for roughness.
• If the tensioner or idler is noisy or wobbly, plan to replace it before installing the new belt.

Step 5: Install the new belt

• Route the new belt around the pulleys using your reference photo.
• Rotate the tensioner again using the 19mm combination wrench.
• Slip the belt onto the last pulley and slowly release the tensioner.
• Double-check the belt ribs are fully seated in every grooved pulley.

Step 6: Reassemble

• Reinstall the splash shield using the 10mm socket, ratchet 3/8", and trim clip removal tool.
• Reinstall the wheel using the 21mm lug nut socket and breaker bar.
• Lower the vehicle off the jack stands using the floor jack.
• Final tighten lug nuts: Torque to 103 Nm (76 ft-lbs)

---

✅ After Repair

• Start the engine and watch the belt for 15–30 seconds; it should run smoothly with no wobble.
• Listen for squeal, chirping, or grinding (signs of misrouting or a bad pulley).
• After a short drive, recheck belt alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 (parts + labor)

DIY Cost: $25-$80 (parts only)

You Save: $95-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
