🔧 Corolla - Timing Belt Replacement

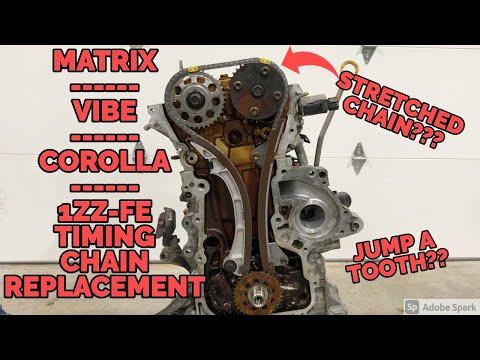

Your Corolla’s 1.8L engine uses a timing chain, not a timing belt. That means there is no normal “timing belt replacement” service interval like on older engines.

If you’re hearing rattling on cold start, have a check engine light, or see an oil leak near the timing cover, then you may be looking at a timing chain/tensioner/guides repair instead.

Difficulty Level: Beginner (inspection) / Advanced (timing chain repair) | Estimated Time: 0.5-1.0 hours (inspection)

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine; hot parts can burn you.
• ⚠️ Keep hands/tools clear of belts and fans if the engine is running.
• ⚠️ If you remove the right-front wheel or go under the car, support it with jack stands (never jack only).
• ⚠️ Battery disconnect is not required for basic inspection, but disconnect the negative battery terminal if you’ll remove electrical connectors near the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• LED flashlight
• Mechanic’s stethoscope (specialty)
• OBD2 scan tool
• 10mm socket
• 3/8" ratchet
• 6" extension for 3/8" ratchet
• Trim clip tool
• Floor jack (rated 2-ton minimum)
• Jack stands (pair, rated 2-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit (chain, guides, tensioner) - Qty: 1 (only if repair is needed)
• Timing cover sealant (RTV silicone, Toyota-spec equivalent) - Qty: 1 (only if cover is removed)
• Engine oil - Qty: 5 quarts (only if repair is needed)
• Oil filter - Qty: 1 (only if repair is needed)
• Engine coolant - Qty: 1 gallon (only if repair is needed)

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Chock the rear wheels using wheel chocks.
• For inspection, you do not need to raise the car unless you want a better view from below.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Check for warning lights and scan for codes

• Plug in an OBD2 scan tool under the driver dash.
• Read stored codes. Timing-related codes often include cam/crank correlation codes (your scan tool will show the description).
• Write codes down before clearing.

Step 2: Listen for timing chain rattle (cold start)

• With the engine cold, start the engine and listen near the passenger side of the engine bay using a mechanic’s stethoscope (specialty).
• A brief “rattle” right at startup can point to a weak chain tensioner (the tensioner is a spring/oil-pressure device that keeps the chain tight).
• Use an LED flashlight to look for obvious oil leaks around the timing cover area.

Step 3: Quick visual inspection for oil leaks near the timing cover

• Remove the plastic engine cover (if equipped) using a 10mm socket, 3/8" ratchet, and 6" extension.
• Use an LED flashlight to check for wet oil along the seam where the timing cover meets the engine.
• If oil is present, wipe and recheck later—oil leaks can mimic “timing problems” by lowering oil level.

Step 4: If you need more access, safely raise the front-right corner

• Place wheel chocks at the rear wheels.
• Lift at the proper jacking point using a floor jack.
• Set the car down on jack stands before looking underneath.
• Remove any small splash shield clips (if needed) using a trim clip tool.

Step 5: Decide the next move (this determines the “real” repair)

• If you have no codes and no rattle, the timing chain usually does not need service.
• If you have startup rattle and/or timing-related codes, the next step is typically a timing chain/tensioner/guides repair, which is an Advanced job and requires precise timing alignment and factory torque specs.

---

✅ After Repair

• If you only inspected: top off engine oil if needed and recheck for leaks over the next few drives.
• If you scanned codes: do not clear them until you’ve recorded them (helps diagnosis).
• If you heard rattle: avoid hard acceleration until it’s diagnosed.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 (diagnostic/inspection)

DIY Cost: $0-$60 (scan tool rental/borrow, small supplies)

You Save: $120-$190 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This inspection takes a shop approximately 0.5-1.0 hours.

---
