🔧 Outback - Alternator Replacement

Replacing the alternator on your Outback involves removing the serpentine belt, disconnecting the alternator wiring, unbolting the alternator, and installing the new unit. The alternator charges the battery while the engine runs, so a weak or failed alternator can cause battery warning lights, dim lights, stalling, or no-start problems.

Difficulty Level: Beginner-Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching alternator wiring to prevent sparks or short circuits.
• ⚠️ Let the engine cool fully before working near the belt, pulleys, and radiator fans.
• ⚠️ Keep fingers, tools, and clothing away from the serpentine belt path.
• ⚠️ Do not pry against plastic cooling components or electrical connectors.
• ⚠️ If the battery has been weak or dead, charge and test it before judging the new alternator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• Serpentine belt tool (specialty)
• Flathead screwdriver
• Trim clip removal tool
• Torque wrench, 5-80 ft-lb range
• Digital multimeter
• Battery terminal brush
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Battery terminal protector spray - Qty: 1

---

📋 Before You Begin

• Park your Outback on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool for at least 30 minutes.
• A serpentine belt is the single long belt that drives accessories like the alternator and A/C compressor.
• A digital multimeter is a small tester used to measure battery and charging voltage.
• Take a clear photo of the belt routing before removing the belt. This helps you reinstall it correctly.
• Disconnect the negative battery cable using a 10mm socket and move it away from the battery post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Put on safety glasses and nitrile gloves.
• Use a 10mm socket and 3/8-inch drive ratchet to loosen the negative battery terminal nut.
• Lift the negative cable off the battery post and position it where it cannot spring back.
• Use a battery terminal brush to clean corrosion if needed.
• Negative cable off first, on last.

Step 2: Remove the Engine Cover or Intake Duct if Needed

• If the upper intake duct blocks access, use a flathead screwdriver to loosen the duct clamp.
• Use a trim clip removal tool to remove any plastic retaining clips.
• Move the duct aside carefully without forcing plastic parts.

Step 3: Release Serpentine Belt Tension

• Find the belt tensioner near the front of the engine. The tensioner is a spring-loaded pulley that keeps the belt tight.
• Place the serpentine belt tool or 14mm socket with 3/8-inch drive ratchet on the tensioner pulley bolt.
• Rotate the tensioner clockwise to loosen the belt.
• Slide the belt off the alternator pulley first, then slowly release the tensioner.
• If replacing the belt, remove it fully from the remaining pulleys.
• Take a belt-routing photo first.

Step 4: Disconnect Alternator Wiring

• Use a flathead screwdriver to gently release the small alternator electrical connector lock.
• Pull the connector straight off. Do not pull on the wires.

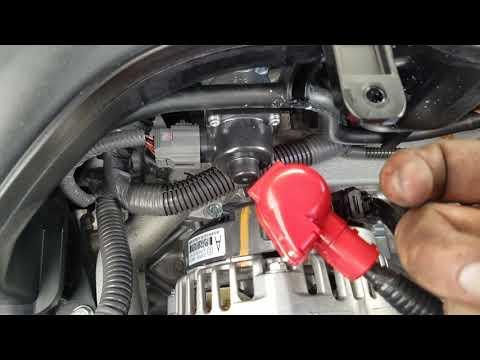

• Lift the rubber boot from the large alternator output terminal.
• Use a 10mm socket and 3/8-inch drive ratchet to remove the terminal nut.
• Move the cable away from the alternator.

Step 5: Remove the Alternator Mounting Bolts

• Support the alternator with one hand so it does not drop when the bolts come out.
• Use a 12mm socket, 3/8-inch drive ratchet, and 3/8-inch drive 6-inch extension to remove the upper alternator mounting bolt.
• Use a 14mm socket and 3/8-inch drive ratchet to remove the lower alternator mounting bolt.
• Rock the alternator gently by hand and lift it out of the bracket.
• Do not pry hard against the aluminum bracket.

Step 6: Compare the New Alternator

• Place the old and new alternators side by side on a clean surface.
• Check that the pulley, electrical connector, mounting ears, and output terminal are in the same positions.
• Use a flathead screwdriver only if you need to transfer a simple protective cap or wire retainer.

Step 7: Install the New Alternator

• Lower the new alternator into the mounting bracket by hand.
• Start the lower bolt by hand first to avoid cross-threading.
• Start the upper bolt by hand next.
• Use a 12mm socket and 14mm socket with the 3/8-inch drive ratchet to snug the bolts evenly.
• Use a torque wrench, 5-80 ft-lb range to tighten the alternator mounting bolts to Torque to 25 Nm (18 ft-lbs).

Step 8: Reconnect Alternator Wiring

• Place the large output cable back onto the alternator terminal.
• Install the terminal nut by hand first.
• Use a 10mm socket and torque wrench, 5-80 ft-lb range to tighten the terminal nut to Torque to 7.5 Nm (66 in-lbs).
• Push the rubber boot fully over the terminal.
• Reconnect the small electrical connector until it clicks.

Step 9: Reinstall the Serpentine Belt

• Route the serpentine belt around all pulleys except the alternator pulley.
• Use the serpentine belt tool or 14mm socket with 3/8-inch drive ratchet to rotate the tensioner clockwise.
• Slide the belt onto the alternator pulley.
• Slowly release the tensioner.
• Visually inspect every pulley and make sure the belt ribs sit fully in the pulley grooves.
• One rib off can shred the belt.

Step 10: Reinstall Intake Duct or Cover

• Reposition the intake duct if removed.
• Use a flathead screwdriver to tighten the duct clamp snugly.
• Use a trim clip removal tool to help seat any plastic clips without bending them.

Step 11: Reconnect the Battery

• Place the negative battery cable back onto the battery post.
• Use a 10mm socket and 3/8-inch drive ratchet to tighten the terminal nut snugly.
• Do not overtighten the battery terminal.
• Apply battery terminal protector spray after the terminal is tight.

Step 12: Check Charging Voltage

• Set the digital multimeter to DC volts.
• Touch the red meter lead to the positive battery post and the black meter lead to the negative battery post.
• With the engine off, a healthy charged battery should read about 12.4-12.7 volts.
• Start the engine and check voltage again using the digital multimeter.
• With the engine running, charging voltage should usually be about 13.5-14.8 volts.

---

✅ After Repair

• ✅ Listen for belt squeal, grinding, or rattling. Shut the engine off if you hear abnormal noise.
• ✅ Verify the battery warning light turns off after startup.
• ✅ Turn on headlights, blower motor, and rear defroster, then recheck charging voltage with the digital multimeter.
• ✅ After the first short drive, shut the engine off and recheck that the belt is centered on every pulley.
• ✅ If idle feels unusual after battery disconnect, let the engine idle for several minutes with accessories off so the system can relearn.
• ✅ Reset the clock and driver window auto-up/down if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$900 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $300-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
