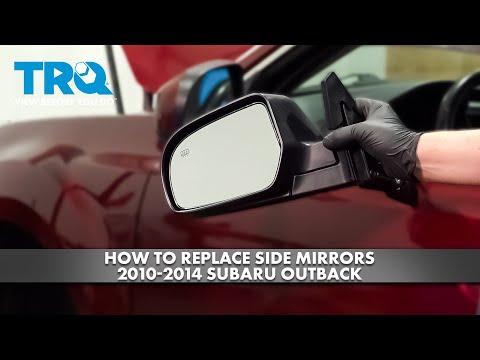

🔧 Outback - Side View Mirror Replacement

Replacing a side mirror on your Outback is mostly an interior door-panel job. You’ll remove the inside trim, unplug the mirror wiring, unbolt the mirror, then install and test the new one.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (per side)

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface and keep the key out of the ignition.
• ⚠️ Protect paint: use painter’s tape around the mirror base before removal.
• ⚠️ Handle the door trim gently—hidden clips can break if you yank.
• ⚠️ If your mirror has heat/turn-signal/power functions, disconnecting the battery negative cable helps prevent shorts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension (1/4")
• Torque wrench (in-lb or Nm capable)
• Phillips screwdriver #2
• Trim removal tool set (specialty)
• Panel clip pliers (specialty)
• Pick tool (small)
• Painter’s tape
• Magnetic parts tray
• Work light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (left/driver) - Qty: 1
• Side view mirror assembly (right/passenger) - Qty: 1
• Door trim panel clips - Qty: 6-12
• Butyl adhesive strip (vapor barrier reseal) - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the window on the door you’re working on.
• Apply painter’s tape along the door edge near the mirror to prevent scratches.
• If you choose to disconnect the battery: use a 10mm socket to remove the negative cable and keep it from touching the terminal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior sail panel (mirror triangle trim)

• Use a trim removal tool set (specialty) to gently pry off the small triangular trim piece at the top-front of the door (near the mirror).
• Start at the top corner, pry slowly.

Step 2: Remove the door panel fasteners

• Use a pick tool (small) to pop off any small screw covers in the door pull/handle area.
• Use a Phillips screwdriver #2 to remove the screws you uncover.
• Place screws in a magnetic parts tray so they don’t disappear.

Step 3: Pop the door panel clips and lift the panel off

• Slide a trim removal tool set (specialty) behind the bottom edge of the door panel.
• Pry outward to release the clips, working around the sides and bottom.
• Once loose, lift the door panel upward to unhook it from the window ledge.
• If it won’t lift, you missed a screw.

Step 4: Disconnect door electrical connectors

• Support the panel with one hand or rest it on your knee.
• Unplug the window/lock switch connectors by pressing the tab and pulling (don’t yank wires).
• If equipped, unplug the courtesy light connector near the bottom of the panel.

Step 5: Peel back the vapor barrier (water shield)

• Use a trim removal tool set (specialty) to carefully peel the plastic vapor barrier back only as much as needed to reach the mirror area.
• If the sticky sealer strings out, plan to reseal it with butyl adhesive strip.
• This plastic prevents water leaks inside.

Step 6: Unplug the mirror connector

• Find the mirror wiring connector near the front upper part of the door.
• Press the lock tab (use a pick tool (small) if needed) and disconnect it.

Step 7: Remove the mirror mounting nuts

• Hold the mirror with one hand on the outside so it can’t fall.
• Use a 10mm socket, 1/4" ratchet, and 6" extension (1/4") to remove the three mounting nuts.
• Carefully pull the mirror away from the door and feed the wiring through the opening.

Step 8: Install the new mirror

• Feed the new mirror’s wiring through the door opening and seat the mirror on the mounting studs.
• Hand-thread the nuts first to avoid cross-threading.
• Use a 10mm socket and 1/4" ratchet to snug the nuts evenly.
• Use a torque wrench (in-lb or Nm capable) to finish tightening: Torque to 7.5 Nm (66 in-lb).
• Snug, not gorilla-tight—studs can strip.

Step 9: Reconnect wiring and reseal the vapor barrier

• Plug the mirror connector back in until it clicks.
• Press the vapor barrier back into place.
• If it won’t stick well, apply butyl adhesive strip and press firmly by hand.

Step 10: Reinstall the door panel and trim

• Reconnect all door panel electrical connectors.
• Hook the top of the door panel onto the window ledge, then press downward to seat it.
• Press around the edges to snap the clips in (use palm pressure).
• Reinstall screws with a Phillips screwdriver #2 and reinstall any covers.
• Snap the sail panel back on by pressing it into place.

Assumption: Mirror nut torque listed is the common Outback-spec for this generation; if you have OEM service data, follow that torque value.

---

✅ After Repair

• Reconnect the battery (if disconnected) using a 10mm socket and make sure the terminal is snug.
• Turn the key to ON and test mirror movement using the mirror switch.
• If equipped, test mirror heat (rear defogger on) and mirror turn signal/puddle light.
• Check mirror alignment at low speed, then re-check that the mirror is secure.
• Listen for wind noise on a short drive—if present, confirm the mirror base is seated evenly.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor, per side)

DIY Cost: $90-$450 (parts only, per side)

You Save: $160-$200+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours per side.

---
