🔧 Accord - A/C Compressor Replacement

Replacing the A/C compressor on your Accord requires recovering the refrigerant, removing the drive belt and A/C lines, swapping the compressor with new O-rings, then vacuuming and recharging the system by weight. Doing it in this order prevents refrigerant injury, keeps moisture out of the system, and protects the new compressor from early failure.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not open A/C lines until the refrigerant is fully recovered with approved equipment.
• ⚠️ Wear safety glasses and gloves; refrigerant can cause severe frostbite and eye injury.
• ⚠️ Disconnect the negative battery cable to prevent radiator fan injury and accidental shorting.
• ⚠️ Cap/plug A/C lines immediately; moisture contamination can damage the new compressor.
• ⚠️ Keep hands clear of pulleys and belt routing points.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 ft-lbs range)
• Socket extension set (3" and 6")
• Serpentine belt tool (14mm) (specialty)
• Trim clip removal tool
• Pick set
• A/C line caps/plugs kit
• A/C manifold gauge set (R-134a) (specialty)
• Vacuum pump (A/C) (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor assembly - Qty: 1
• A/C compressor O-ring set (HNBR green) - Qty: 1 set
• A/C compressor oil (Honda ND-OIL 8 equivalent) - Qty: 1
• R-134a refrigerant (charge by under-hood label weight) - Qty: as needed

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🔋 Disconnect the negative battery cable using a 10mm socket.
• 🏷️ Locate the under-hood A/C label and note the exact refrigerant charge weight (you must recharge by weight).
• 🧰 If you don’t have a recovery machine, arrange recovery at a shop before you start.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (mandatory)

• Connect the A/C manifold gauge set (R-134a) (specialty) to the high and low service ports.
• Recover the refrigerant using a refrigerant recovery machine (specialty) until the recovery cycle completes and pressures are at/near 0 psi.
• Recovery removes refrigerant safely and legally.

Step 2: Raise the front and remove the lower splash shield

• Lift the front with a floor jack (rated 2-ton minimum) and support it with jack stands (rated 2-ton minimum).
• Remove the lower splash shield/undercover using a trim clip removal tool and 10mm socket.

Step 3: Remove the drive belt from the compressor

• Use a serpentine belt tool (14mm) (specialty) to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Take a quick photo of belt routing before removal.

Step 4: Disconnect the compressor electrical connector

• Unplug the compressor connector by pressing the tab and pulling straight off (do not pull on the wires).

Step 5: Disconnect the A/C lines from the compressor

• Remove the line retaining bolt(s) with a 10mm socket and 3/8" drive ratchet.
• Gently wiggle the line block free (do not pry hard on aluminum lines).
• Immediately cap the open lines and ports using an A/C line caps/plugs kit.
• Remove old O-rings using a pick set (a pick is a small hooked tool for lifting O-rings out of grooves).

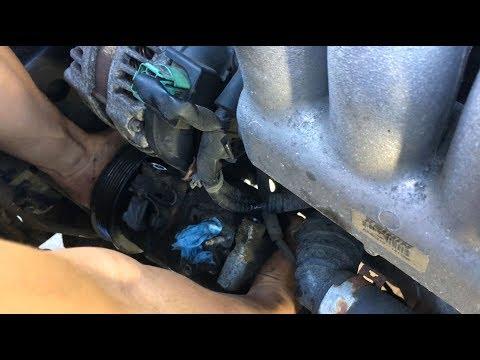

Step 6: Remove the compressor mounting bolts and take the compressor out

• Support the compressor with one hand.
• Remove the compressor mounting bolts using a 12mm socket, socket extension set (3" and 6"), and 3/8" drive ratchet.
• Lower and remove the compressor from underneath.

Step 7: Transfer oil amount to the new compressor

• Drain oil from the old compressor into a measuring container by slowly rotating the hub by hand.
• Drain shipping oil from the new compressor, then add the same amount of fresh oil using A/C compressor oil (Honda ND-OIL 8 equivalent).
• Lightly coat new O-rings with a thin film of clean compressor oil before installation.
• Too much oil can reduce cooling.

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand first.
• Tighten the compressor mounting bolts using a 3/8" drive torque wrench (10–80 ft-lbs range).
• Torque to 22 N·m (16 ft-lbs).

Step 9: Reinstall A/C lines with new O-rings

• Install the new O-rings on the line ends (make sure they are not twisted or pinched).
• Reinstall the line block and tighten the retaining bolt(s) using a 10mm socket.
• Torque to 10 N·m (7 ft-lbs).

Step 10: Reconnect electrical connector and reinstall the belt

• Reconnect the compressor electrical connector until it clicks.
• Route the belt correctly and use the serpentine belt tool (14mm) (specialty) to reinstall it.

Step 11: Reinstall the splash shield and lower the car

• Reinstall the splash shield using a trim clip removal tool and 10mm socket.
• Lower the car and remove the jack stands (rated 2-ton minimum).

Step 12: Vacuum test the system

• Connect the A/C manifold gauge set (R-134a) (specialty) and hook the center hose to the vacuum pump (A/C) (specialty).
• Pull vacuum for 30–45 minutes.
• Close the manifold valves and verify it holds vacuum for 10 minutes (if it loses vacuum, fix leaks before charging).

Step 13: Recharge the system by weight

• Place the refrigerant on a refrigerant scale (specialty).
• Charge with R-134a to the exact amount on your under-hood label.
• Do not charge “by pressure” alone; correct weight is what matters.

Step 14: Reconnect battery and verify A/C operation

• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and set A/C to MAX cold and high blower.
• Confirm the clutch engages and vent air gets cold after a short time.

---

✅ After Repair

• 🔍 Check for leaks at the compressor line connection area (oily residue or bubbling during leak check indicates a problem).
• 🧪 If cooling is weak, verify the exact charge amount was added and the system held vacuum.
• ⚙️ If the old compressor failed with loud grinding or metal debris, the condenser and system may need additional cleaning/parts to protect the new compressor.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$700 (parts only, assuming you have access to recovery/vacuum/scale equipment)

You Save: $650-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
