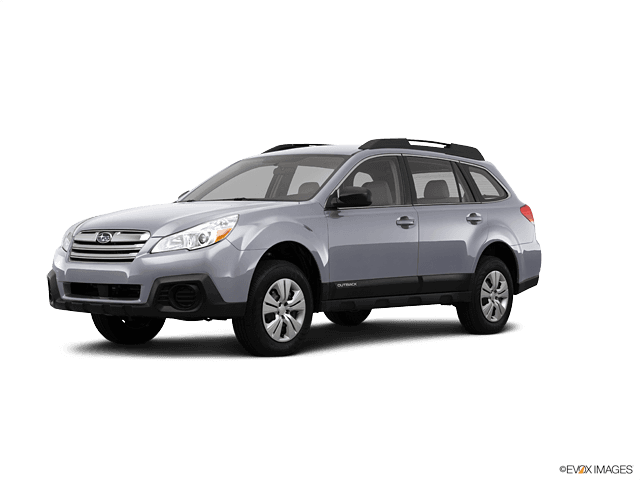

🔧 Outback - Manual Transmission Gear Oil Change

On your Outback (manual transmission), the “transmission fluid” is gear oil that lubricates the transmission and the front differential (they share the same fluid). The job is a simple drain-and-refill, but the vehicle must be safely level so you fill to the correct height.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• 🧯 Work on a level surface; keep the vehicle level while filling.
• 🔥 Gear oil can be hot—let it cool enough to avoid burns.
• 🛑 Support the vehicle with jack stands; never rely on a jack alone.
• 🧪 Wear gloves and safety glasses; gear oil smell lingers.
• 🔋 Battery disconnect is not required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 6-quart)
• 21mm socket
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• Torque wrench (10–100 ft-lbs range)
• Fluid transfer pump (hand pump) (specialty)
• Shop rags
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Manual transmission/front differential gear oil (API GL-5 75W-90) - Qty: 4 quarts
• Drain plug crush washer - Qty: 1
• Fill plug crush washer - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Raise the front with a floor jack and support with jack stands.
• If you raise the front, raise the rear too so the vehicle sits level on four jack stands. Level car = correct fill level.
• Do a short 5–10 minute drive first to warm the gear oil slightly, then shut off.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the fill and drain plugs

• Slide under the center/front area with safety glasses.
• Find the manual transmission case and identify the fill plug (higher up on the case) and the drain plug (lowest point).
• Clean around both plugs using brake cleaner spray and shop rags so dirt can’t fall inside.

Step 2: Loosen the fill plug first

• Place the drain pan under the transmission area (some oil can seep out).
• Use a 21mm socket, 3/8" drive ratchet, and extension to break the fill plug loose first.
• If the fill plug won’t loosen, stop and do not drain the fluid yet. You must be able to refill it.

Step 3: Drain the old gear oil

• Reposition the drain pan directly under the drain plug.
• Use a 21mm socket and 3/8" drive ratchet to remove the drain plug.
• Let it drain until it slows to an occasional drip (usually 10–20 minutes).

Step 4: Reinstall the drain plug with a new crush washer

• Remove the old crush washer from the drain plug (a crush washer is a soft sealing washer that deforms to prevent leaks).
• Install the new drain plug crush washer.
• Thread the drain plug in by hand first to avoid cross-threading.
• Tighten using a torque wrench: Torque to 50 Nm (37 ft-lbs).
• Wipe the area clean with shop rags.

Step 5: Fill with new gear oil

• Remove the fill plug fully using the 21mm socket and ratchet.
• Install the fluid transfer pump (a hand pump that pushes fluid from the bottle into the fill hole).
• Pump in API GL-5 75W-90 gear oil until the level reaches the bottom edge of the fill hole and begins to slowly dribble out.
• Wait 1–2 minutes, then top off again until it just dribbles at the fill opening.

Step 6: Reinstall the fill plug with a new crush washer

• Install a new fill plug crush washer on the fill plug.
• Thread the fill plug in by hand first.
• Tighten using a torque wrench: Torque to 50 Nm (37 ft-lbs).
• Clean off any spilled oil using brake cleaner spray and shop rags.

Step 7: Lower the vehicle

• Use the floor jack to lift slightly, remove jack stands, then lower the vehicle carefully.
• Remove wheel chocks.

---

✅ After Repair

• Start the engine and do a short drive, shifting through all gears normally.
• Park on a clean surface and check underneath for any seepage at the drain/fill plugs.
• Dispose of used gear oil at an oil recycling center or auto parts store.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$320 (parts + labor)

DIY Cost: $60-$120 (parts only)

You Save: $120-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-1.5 hours.

---
