🔧 F-150 - A/C Compressor Replacement

Replacing the A/C compressor on your F-150 involves removing the drive belt, disconnecting the refrigerant lines, swapping the compressor, then evacuating and recharging the A/C system. The most important part is handling refrigerant correctly and keeping dirt/moisture out of the open lines.

Difficulty Level: Advanced | Estimated Time: 3-6 hours (plus evac/recharge time)

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is under high pressure—do not open A/C lines until the system is professionally recovered.
• ⚠️ Wear safety glasses and gloves; liquid refrigerant can cause frostbite instantly.
• ⚠️ Support the truck with jack stands; never rely on a floor jack alone.
• ⚠️ Keep A/C lines capped/plugged; moisture ruins the desiccant and can damage the new compressor.
• Disconnect the negative battery cable before unplugging the compressor connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/2" drive breaker bar
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 ft-lbs range)
• 1/4" drive torque wrench (inch-lb) (specialty)
• Socket set (8mm, 10mm, 13mm, 15mm)
• Serpentine belt tool (1/2" drive) (specialty)
• A/C line disconnect tool set (spring-lock) (specialty)
• Trim clip remover
• Flat-blade screwdriver
• Pick set
• Shop rags
• Plastic caps/plugs assortment (specialty)
• UV leak detection light (specialty)
• A/C manifold gauge set (R-134a) (specialty)
• Vacuum pump (R-134a) (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• PAG A/C oil (PAG 46) - Qty: 1 bottle
• R-134a refrigerant - Qty: As specified on underhood A/C label
• A/C accumulator / receiver-drier - Qty: 1 (strongly recommended with compressor replacement)
• A/C orifice tube - Qty: 1 (recommended if compressor failed)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the A/C system recovered first (a shop evacuates refrigerant into a machine). Do not skip this.
• Disconnect the negative battery cable using a 10mm socket.
• Raise the front safely with a floor jack and support with jack stands.
• Locate the underhood A/C label and note the exact refrigerant charge amount; you will recharge by weight later.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove access panels/shields (if equipped)

• If your F-150 has a front skid plate/splash shield, remove fasteners using an 8mm socket or 10mm socket and a trim clip remover.
• Set hardware aside in a tray so nothing gets lost.

Step 2: Release the serpentine belt from the A/C compressor

• Use a serpentine belt tool (1/2" drive) or 1/2" drive breaker bar to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Take a quick photo of belt routing.

Step 3: Unplug the compressor electrical connector

• Use a flat-blade screwdriver to gently release the lock tab (don’t force it).
• Unplug the connector and move the harness aside.

Step 4: Disconnect the refrigerant lines from the compressor

• Place shop rags under the compressor to catch any oil.
• Remove the compressor line/manifold retaining bolt using a 10mm socket.
• Carefully wiggle and pull the manifold/lines straight out.
• Immediately install plastic caps/plugs on the open lines and compressor ports to keep moisture/dirt out.
• Remove old O-rings with a pick set (do not scratch sealing surfaces).

Step 5: Remove the A/C compressor

• Support the compressor with one hand.
• Remove the compressor mounting bolts using a 13mm socket.
• Lower the compressor out carefully (it’s awkward and may still have oil inside).

Step 6: Prepare the new compressor (oil balancing)

• Drain the oil from the old compressor into a measuring container (tilt and rotate the hub by hand).
• Add the same amount of fresh PAG 46 oil into the new compressor (unless the new compressor instructions specify it is pre-filled).
• Rotate the new compressor hub by hand 10–15 turns to distribute oil.
• If the old oil is shiny/metallic, replace accumulator and orifice tube.

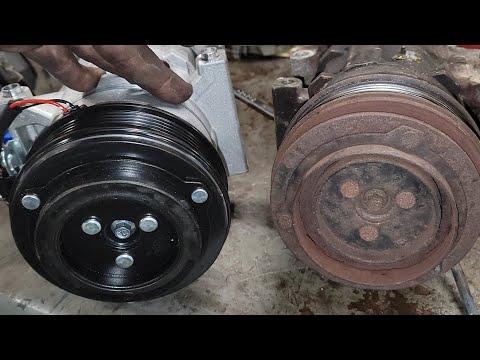

Step 7: Install the new compressor

• Position the compressor and hand-start the mounting bolts using a 13mm socket.
• Tighten evenly and then Torque to 25 Nm (18 ft-lbs) using a 3/8" drive torque wrench.

Step 8: Reconnect the refrigerant lines with new O-rings

• Install new O-rings on the manifold/lines (match sizes carefully) using a pick set.
• Lightly coat O-rings with clean PAG 46 oil (use a gloved finger).
• Push the manifold/lines straight into the compressor ports until fully seated.
• Install the retaining bolt using a 10mm socket, then Torque to 10 Nm (89 in-lbs) using a 1/4" drive inch-lb torque wrench.

Step 9: Reinstall the belt and shields

• Route the belt and use a serpentine belt tool (1/2" drive) to rotate the tensioner and slip the belt back onto the A/C compressor.
• Visually confirm the belt is centered on every pulley.
• Reinstall any skid plate/splash shield using an 8mm socket or 10mm socket.

Step 10: Evacuate, leak-check, and recharge the system (R-134a)

• Connect an A/C manifold gauge set (R-134a) to the low/high service ports.
• Connect a vacuum pump and pull vacuum for 30–45 minutes.
• Close valves and verify it holds vacuum for 10 minutes (vacuum loss = leak).
• Recharge with R-134a refrigerant by weight using a refrigerant scale to the exact amount on your underhood label.
• Check for leaks with a UV leak detection light (if dye is present) and verify pressures/vent temp.

---

✅ After Repair

• Reconnect the battery using a 10mm socket.
• Start the engine and set A/C to MAX; confirm the compressor engages and airflow gets cold.
• Listen for belt squeal or grinding; shut down if you hear loud abnormal noises.
• Recheck for oil residue at the compressor manifold and service ports after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $1,000-$2,000 (parts + labor + evac/recharge)

DIY Cost: $250-$800 (parts only, assuming you have evac/recharge equipment)

You Save: $500-$1,200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
