🔧 Wrangler - Front Window Regulator Replacement

Replacing a front window regulator means removing the inner door trim panel, disconnecting the glass from the regulator, and swapping the regulator/motor assembly. This is usually needed when the window binds, drops into the door, moves crooked, or the motor runs but the glass doesn’t move.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• 🛑 Keep fingers clear of the regulator while testing; it can pinch hard.
• 🛑 Support the window glass before unbolting it to prevent it dropping.
• 🛑 If your Wrangler has power windows, disconnect the negative battery cable before unplugging the door wiring.
• 🛑 Wear safety glasses; door shells have sharp edges.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Work gloves
• Trim/panel removal tool
• Phillips screwdriver
• Torx T20 screwdriver
• Torx T30 screwdriver
• Ratchet
• 10mm socket
• Extension bar 6"
• Painter’s tape 1.5"
• Magnetic pickup tool
• Torque wrench (inch-pound)
• Torque wrench (ft-lb)
• Needle-nose pliers
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door window regulator assembly - Qty: 1
• Front window regulator motor - Qty: 1 (only if not included with regulator)
• Door trim panel fastener clips - Qty: 1 set (as needed)
• Butyl door vapor barrier adhesive - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground, key out, and open the door fully.
• If the window is stuck partway, try to move it so the glass-to-regulator bolts are accessible through the door access holes.
• If equipped with power windows: use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the setup (so the steps match your door)

• Please reply with: (1) which front door Driver or Passenger, and (2) does your Wrangler have power windows or manual crank windows?
• Once I have that, I’ll give you the exact bolt locations and the correct regulator type for your door.

Step 2: Remove the inner door trim panel

• Use a trim/panel removal tool to gently pry off the small trim covers (behind the door handle area and armrest areas if present).
• Remove visible screws using a Phillips screwdriver and/or Torx T20 screwdriver (Wrangler door trim commonly uses Torx screws).
• Use the trim/panel removal tool to pop the panel clips around the perimeter of the door panel.
• Lift the door panel straight up and off the door ledge.
• Unplug electrical connectors (power window switch, power lock) by hand; use needle-nose pliers only if needed. Don’t pull on the wires.

Step 3: Peel back the moisture/vapor barrier

• Carefully peel back the plastic sheet (vapor barrier). Try not to tear it.
• If the sticky sealer won’t release cleanly, use steady hand pressure and work slowly; you’ll reseal it later with butyl door vapor barrier adhesive if needed.

Step 4: Support the window glass

• Raise the glass by hand to the full up position if possible.
• Use painter’s tape 1.5" to tape the glass to the door frame (run multiple strips over the top of the door frame to hold the glass).
• If the glass won’t stay up, add more tape strips. More tape is better than broken glass.

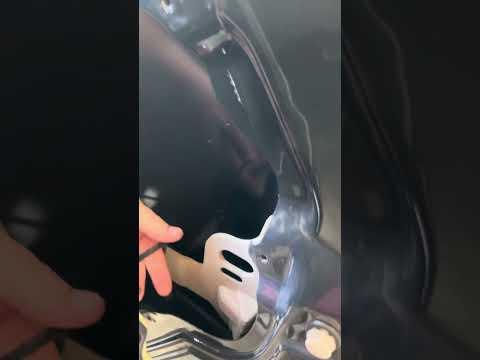

Step 5: Detach the glass from the regulator

• Look through the large access holes in the door to find the glass clamp/attachment points.
• Use a 10mm socket with a ratchet and extension bar 6" to remove the glass-to-regulator fasteners (typically 2).
• If a nut drops inside the door, retrieve it with a magnetic pickup tool.

Step 6: Unplug the regulator motor (power window only)

• Unplug the regulator motor connector by hand and set the harness aside so it can’t snag.

Step 7: Remove the regulator assembly

• Use a 10mm socket and ratchet to remove the regulator mounting bolts.
• Support the regulator as you remove the last bolt so it doesn’t drop or twist.
• Work the regulator out through the door’s access opening. Use a flashlight to watch for wiring and sharp edges.

Step 8: Transfer the motor (only if your new regulator doesn’t include it)

• Use a Torx T30 screwdriver to remove the motor screws from the old regulator.
• Install the motor onto the new regulator and tighten evenly.
• Torque to 6-8 Nm (53-71 in-lbs)

Step 9: Install the new regulator

• Place the new regulator into the door and start all mounting bolts by hand using a 10mm socket.
• Tighten the regulator bolts evenly.
• Torque to 10-12 Nm (89-106 in-lbs)
• Reconnect the motor electrical connector (power window only).

Step 10: Reattach the glass

• Remove some tension from the tape so the glass can drop slightly into the regulator clamps.
• Install the glass-to-regulator fasteners using a 10mm socket.
• Torque to 8-10 Nm (71-89 in-lbs)
• Remove the painter’s tape once the glass is secured.

Step 11: Function test before reassembly

• If equipped with power windows: reconnect the negative battery cable using a 10mm socket.
• Cycle the window up/down while watching the tracks for binding and listening for clicking.
• If it tilts or binds, stop and re-check the glass seating in the clamps and regulator bolt alignment.

Step 12: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place; use butyl door vapor barrier adhesive as needed to reseal edges.
• Reconnect electrical connectors by hand.
• Hang the door panel on the top lip and press in the clips around the perimeter.
• Reinstall screws using a Torx T20 screwdriver and/or Phillips screwdriver.

---

✅ After Repair

• Verify the window seals against the weatherstrip at full-up and doesn’t “walk” forward/back.
• Confirm door lock and window switch operation.
• If you hear rattles, re-check missing panel clips and that all screws are tight.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor, per door)

DIY Cost: $120-$350 (parts only, per door)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
