🔧 Outback - Fuel Pump Replacement

On your Outback, the fuel pump sits inside the fuel tank as a module that’s accessed from inside the cabin under the rear seat. You’ll relieve fuel pressure, open the access cover, unplug the wiring and fuel lines, then swap the pump/module and seal so it doesn’t leak or smell like fuel.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a very well-ventilated area; fuel vapors are flammable.
• ⚠️ No smoking, no heat guns, no drop lights with hot bulbs near the opening.
• ⚠️ Relieve fuel pressure before disconnecting lines to avoid spray.
• ⚠️ Disconnect the negative battery cable to reduce spark risk.
• ⚠️ Keep a Class B fire extinguisher nearby.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• 10mm socket
• 8mm socket
• 1/4" drive ratchet
• 3" socket extension
• Phillips #2 screwdriver
• Trim removal tool
• Needle-nose pliers
• Small flat pick tool
• Inch-pound torque wrench (0–100 in-lb range)
• Shop towels
• Catch pan
• Marker or masking tape

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump tank seal (module O-ring/gasket) - Qty: 1
• Fuel pump strainer (sock filter) - Qty: 1
• Fuel line retaining clips - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Run the fuel level down if possible; a near-full tank is heavier and messier.
• Relieve fuel pressure: remove the fuse/relay labeled FUEL PUMP (use the fuse box cover diagram), then start the engine and let it run until it stalls.
• Disconnect the battery: use a 10mm socket to remove the negative (-) battery terminal and isolate it so it can’t spring back.
• Tip: Keep doors open for ventilation.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear seat bottom

• Use a trim removal tool to pop the rear seat bottom cushion clips free, then lift the cushion out of the vehicle.
• Set the cushion aside where it won’t pick up fuel odor.

Step 2: Open the fuel pump access cover

• Locate the service access panel under the rear seat area.
• Use a Phillips #2 screwdriver (or 8mm socket if equipped) to remove the access cover fasteners.
• Use shop towels to wipe dust away so dirt can’t fall into the tank.

Step 3: Disconnect the electrical connector(s)

• Press the connector lock tab and unplug the pump wiring by hand.
• If the lock is stubborn, use a small flat pick tool gently to lift the tab. (A pick tool is a small pointed tool used to release clips.)

Step 4: Disconnect the fuel lines

• Place a catch pan and shop towels under the connections.
• Mark each hose position using a marker or masking tape.
• For quick-connect fittings: release the connector tabs (use needle-nose pliers only if needed) and pull the line straight off.
• Expect a small amount of fuel to drip; catch and wipe it immediately.

Step 5: Remove the fuel pump module retainers

• Use an 8mm socket with a 1/4" drive ratchet and 3" socket extension to remove the module retaining nuts/bolts.
• Remove the retainers in a crisscross pattern to avoid bending the flange.

Step 6: Lift out the fuel pump module

• Carefully lift the module straight up; angle it as needed to clear the float arm.
• Let fuel drain from the module into the tank for a few seconds, then move it into the catch pan.

Step 7: Replace the tank seal (must-do)

• Remove the old seal/O-ring by hand; use a small flat pick tool only if needed.
• Install the new seal evenly in the groove so it isn’t twisted or pinched.
• Tip: A twisted seal can cause fumes/leaks.

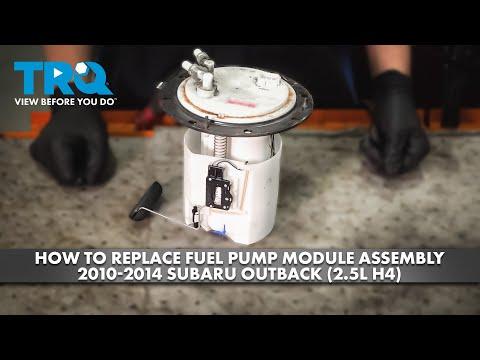

Step 8: Install the new fuel pump/module

• Carefully lower the new module into the tank, guiding the float arm in without bending it.
• Install the retaining nuts/bolts finger-tight first, then tighten evenly in a crisscross pattern using an 8mm socket.
• Torque to 4.4 Nm (39 in-lb) using an inch-pound torque wrench.

Step 9: Reconnect lines, wiring, and close the access cover

• Reconnect the fuel lines until they click/lock; gently tug to confirm they’re secure.
• Reconnect the electrical connector(s) by hand until fully seated.
• Reinstall the access cover using a Phillips #2 screwdriver (or 8mm socket if equipped).

Step 10: Reinstall the rear seat bottom

• Position the seat cushion and press down firmly to snap the clips in place.

---

✅ After Repair

• Reinstall the fuse/relay labeled FUEL PUMP.
• Reconnect the battery negative terminal using a 10mm socket.
• Prime the system: turn the key to ON (engine off) for 5 seconds, then OFF; repeat 3 times.
• Start the engine and inspect the access area for leaks and fuel smell.
• Road test, then recheck for any dampness around the fuel line connections.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $180-$550 (parts only)

You Save: $470-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
