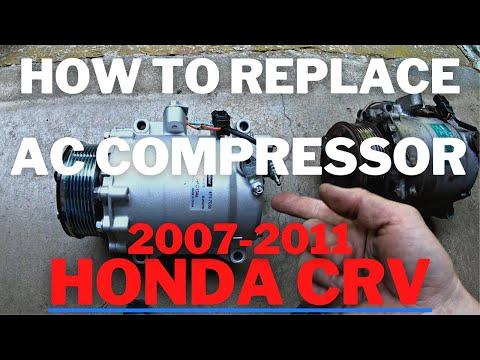

🔧 CR-V - A/C Compressor Replacement

Replacing the A/C compressor on your CR-V means removing the drive belt, disconnecting the refrigerant lines, swapping the compressor, then evacuating and recharging the system. The most important part is handling refrigerant correctly and keeping dirt/moisture out of the A/C lines.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with proper equipment—do not vent to air.
• ⚠️ Wear safety glasses and gloves; refrigerant can cause frostbite instantly.
• ⚠️ Work on a cool engine; keep hands clear of the belt and pulleys.
• ⚠️ Keep A/C lines capped/plugged; moisture ruins the desiccant and oil.
• ⚠️ Battery disconnect is recommended before unplugging the compressor clutch connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (8mm-19mm)
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 ft-lbs)
• 6" extension (3/8" drive)
• Serpentine belt tool (specialty)
• Flat trim clip tool
• Phillips screwdriver
• Line caps/plugs assortment
• A/C manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• R-134a refrigerant scale (specialty)
• O-ring pick set
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (complete assembly) - Qty: 1
• A/C compressor clutch connector pigtail (if damaged) - Qty: 1
• A/C line O-ring set (HNBR green) - Qty: 1
• PAG A/C oil (oil type per compressor/label) - Qty: 1
• R-134a refrigerant (charge amount per under-hood label) - Qty: 1
• Serpentine drive belt (recommended if worn/cracked) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🔌 Disconnect the negative battery cable using a 10mm socket.
• ❄️ Recover the refrigerant using a refrigerant recovery machine (specialty). If you don’t have one, have an A/C shop recover it first, then you can do the compressor swap and return for vacuum/recharge.
• 🏷️ Read the under-hood A/C label for the exact R-134a charge amount.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (if equipped)

• Raise the front safely using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove clips/screws using a flat trim clip tool and Phillips screwdriver.

Step 2: Release the drive belt tension

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Tip: Take a quick belt routing photo.

Step 3: Unplug the A/C compressor electrical connector

• Disconnect the compressor clutch connector by hand; use a small flat blade (from O-ring pick set) gently if the lock tab is stuck.

Step 4: Disconnect the A/C refrigerant lines at the compressor

• Place shop rags under the connections using shop rags.
• Remove the line retaining bolt(s) using a 10mm socket (some fasteners may be 12mm socket depending on build).
• Pull the lines straight off; immediately cap/plug the open lines and compressor ports using line caps/plugs assortment.
• Remove and discard the old O-rings using an O-ring pick set.

Step 5: Remove the A/C compressor

• Support the compressor with one hand.
• Remove the mounting bolts using a 12mm socket and 3/8" drive ratchet.
• Remove the compressor from below.

Step 6: Set up the new compressor (oil balancing)

• Check the new compressor’s instructions for whether it ships pre-filled.
• If required, drain and measure oil from the old compressor into a clean container (not included) and add the same amount to the new compressor using PAG A/C oil (oil type per compressor/label).
• Rotate the compressor hub by hand a few turns to distribute oil evenly.
• Tip: Keep everything clean—no dirt in ports.

Step 7: Install the new compressor

• Position the compressor and start the bolts by hand to avoid cross-threading.
• Tighten mounting bolts using a 12mm socket, then torque wrench: Torque to 25 N·m (18 ft-lbs).

Step 8: Reinstall the A/C lines with new O-rings

• Lightly coat new O-rings with clean PAG A/C oil (oil type per compressor/label).
• Install O-rings onto the line ends, then push the lines straight into the compressor ports.
• Install the retaining bolt(s) using a 10mm socket, then torque wrench: Torque to 9.8 N·m (7 ft-lbs).

Step 9: Reinstall the belt

• Route the belt correctly and use the serpentine belt tool (specialty) to rotate the tensioner.
• Slip the belt onto the last pulley and slowly release tension.

Step 10: Reinstall splash shield and lower the vehicle

• Reinstall clips/screws using a flat trim clip tool and Phillips screwdriver.
• Lower the vehicle from jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

Step 11: Evacuate (vacuum) the A/C system

• Connect the A/C manifold gauge set for R-134a (specialty) to the high/low service ports.
• Connect a vacuum pump (specialty) and pull vacuum for at least 30 minutes.
• Close valves and verify it holds vacuum (no rise) for 10–15 minutes to confirm no leaks.

Step 12: Recharge with R-134a by weight

• Charge using a R-134a refrigerant scale (specialty) to the exact amount on the under-hood label.
• Start the engine, set A/C to MAX, and confirm pressures are stable using the A/C manifold gauge set for R-134a (specialty).

---

✅ After Repair

• ✅ Reconnect the negative battery cable using a 10mm socket.
• ✅ Verify the A/C blows cold and the compressor cycles normally.
• ✅ Listen for belt squeal or rubbing; recheck belt routing if noise occurs.
• ✅ Check for oily residue at fittings (a common sign of a refrigerant leak).

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,700 (parts + labor + evac/recharge)

DIY Cost: $250-$750 (parts only, assuming you have A/C equipment)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
