🔧 Wrangler - Tie Rod End Replacement

On your Wrangler, the “tie rod end” usually means the outer end at the steering knuckle, but some people mean the drag link end instead. The exact procedure and torque specs change depending on which end you’re replacing, and whether it’s the left or right side.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the front axle with jack stands; never rely on a jack.
• ⚠️ Wear eye protection when separating the taper joint; parts can pop loose suddenly.
• ⚠️ Keep fingers clear of the steering knuckle and tie rod while applying force.
• ⚠️ After replacement, the alignment can be off; drive carefully to an alignment shop.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 1/2" drive ratchet
• 1/2" drive torque wrench (20-150 ft-lbs range)
• Socket set (metric)
• Wrench set (metric)
• Needle-nose pliers
• Paint marker
• Tape measure
• Pickle fork ball joint separator
• Ball joint/tie-rod end puller (specialty)
• Dead-blow hammer
• Penetrating oil
• Grease gun

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin - Qty: 1
• Chassis grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Loosen the front wheel lug nuts slightly before lifting.
• Lift the front axle with a floor jack and set it on jack stands.
• Spray penetrating oil on the tie rod end nut, the clamp/jam nut area, and let it soak.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Quick confirmation (so I give you the exact torque specs)

• Are you replacing the outer tie rod end at the steering knuckle, or a drag link end?
• Which side: driver or passenger?

Step 2: Remove the wheel

• Remove the lug nuts using a socket and breaker bar/ratchet, then remove the wheel.

Step 3: Mark the current adjustment

• Use a paint marker to mark the position of the tie rod end/jam nut so you can reinstall close to the same length.
• Measure from a fixed point on the tie rod end to the tie rod using a tape measure and write it down. This helps keep toe close.

Step 4: Remove the cotter pin and nut

• Straighten and remove the cotter pin using needle-nose pliers.
• Remove the tie rod end nut using the correct metric socket.

Step 5: Separate the tie rod end from the steering knuckle

• Use a ball joint/tie-rod end puller (specialty) to press the stud out of the knuckle.
• If it’s stubborn, tap the side of the knuckle boss with a dead-blow hammer while keeping tension on the puller.
• A pickle fork ball joint separator can work, but it may damage the rubber boot.

Step 6: Loosen the adjuster/jam nut and remove the old end

• Loosen the jam nut using the correct metric wrench.
• Unthread the tie rod end by hand, counting turns as you remove it.
• Record the turn count so you can install the new one the same number of turns.

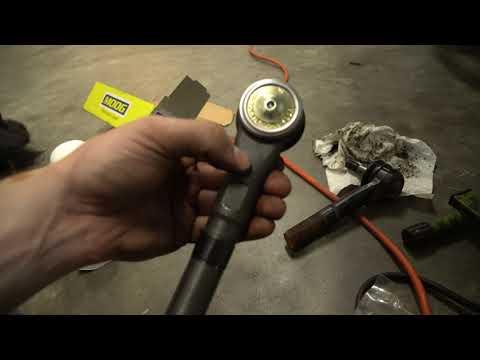

Step 7: Install the new tie rod end

• Thread the new tie rod end in the same number of turns you counted during removal.
• Snug the jam nut using the correct metric wrench, but don’t fully torque it yet.
• Insert the stud into the steering knuckle.

Step 8: Tighten the nut and install a new cotter pin

• Tighten the tie rod end nut using a torque wrench.
• Install a new cotter pin using needle-nose pliers and bend the legs over.
• Important: I’ll provide the exact Torque to XX Nm (YY ft-lbs) values as soon as you answer Step 1 (outer tie rod end vs drag link end, and driver vs passenger).

Step 9: Tighten the jam nut and recheck length

• Torque the jam nut using a torque wrench once I confirm which linkage you’re working on.
• Recheck your paint mark and/or measurement with the tape measure.

Step 10: Reinstall wheel and lower

• Reinstall the wheel and hand-tighten lug nuts using a socket.
• Lower the Jeep from the jack stands using the floor jack.
• Torque the lug nuts in a star pattern using a torque wrench.

Step 11: If your new tie rod end has a grease fitting

• Add grease using a grease gun until the boot just begins to swell. Do not overfill the boot.

---

✅ After Repair

• Start the engine and turn lock-to-lock while parked to confirm smooth steering and no popping.
• Road test at low speed first; verify the steering wheel is centered and it tracks straight.
• Get a front-end alignment as soon as possible to prevent tire wear.
• Recheck the nut/jam nut area for looseness after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor + alignment)

DIY Cost: $40-$120 (parts only)

You Save: $160-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
