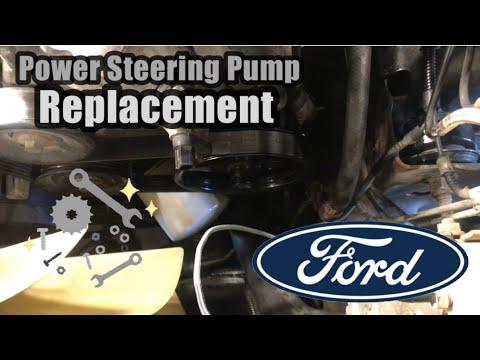

🔧 F-150 - Power Steering Pump Replacement

You’ll remove the belt-driven power steering pump, transfer (or replace) the pulley, reinstall the new pump, then refill and bleed the system. Most problems are leaks (wet pump/hoses) or whining from low fluid/air or a failing pump.

Difficulty Level: Advanced | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your A4WD truck safely: use jack stands, not just a jack.
• ⚠️ Keep hands clear of the belt path; the tensioner is spring-loaded.
• ⚠️ Power steering fluid can damage rubber and paint—wipe spills immediately.
• ⚠️ Do not hold the steering at full lock while bleeding; it can over-pressurize the system.
• 🔋 Battery disconnect is not required, but it’s OK to disconnect the negative cable if you want extra safety around the fan/belt area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Fluid suction pump
• Funnel
• Shop towels
• Serpentine belt tool or 15mm wrench
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• Socket set (8mm, 10mm, 13mm, 15mm)
• Torque wrench (10–100 ft-lbs range)
• Flare nut wrench set
• Power steering pump pulley puller/installer kit (specialty)
• Hose clamp pliers
• Trim clip removal tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 1
• Power steering pump pulley - Qty: 1 (only if damaged/worn)
• Power steering pressure line O-ring seal - Qty: 1
• Power steering return hose clamp - Qty: 1 (recommended)
• MERCON V automatic transmission fluid - Qty: 2 quarts

---

📋 Before You Begin

• Park your A4WD truck on level ground, set the parking brake, and chock the rear wheels.
• Lift the front end with a floor jack and support with jack stands so the front wheels can turn freely for bleeding.
• Use a fluid suction pump (hand pump) to remove as much old fluid as possible from the reservoir into a drain pan.
• Take a photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove any intake ducting/engine cover blocking access

• Remove the engine cover/air ducting as needed using a trim clip removal tool and 8mm socket or 10mm socket (varies by how it’s equipped).
• Set clamps/clips aside so nothing falls into the engine bay.

Step 2: Remove the serpentine belt from the pump

• Place a 15mm wrench or serpentine belt tool on the belt tensioner.
• Rotate the tensioner to relieve tension, then slip the belt off the power steering pump pulley.
• Slowly release the tensioner back to its rest position.

Step 3: Disconnect the return hose and drain fluid

• Position a drain pan under the pump area.
• Use hose clamp pliers to move the clamp back on the return hose.
• Twist and pull the return hose off the pump/reservoir connection (whichever is easiest to access) and let it drain.
• Plug/cap the hose end with a shop towel to reduce mess.

Step 4: Disconnect the high-pressure line at the pump

• Clean the fitting area with shop towels so dirt can’t enter the system.
• Use a flare nut wrench to loosen the pressure line fitting at the pump (a flare nut wrench grips more sides than an open-end wrench to reduce rounding).
• Remove the line and catch fluid in the drain pan.
• Remove and replace the pressure line O-ring seal (lightly wet the new O-ring with fresh MERCON V automatic transmission fluid before installing).

Step 5: Unbolt and remove the power steering pump

• Remove the pump mounting bolts using a 13mm socket with a 3/8" drive ratchet and extensions.
• Lift the pump out carefully and keep it upright to avoid spilling remaining fluid.

Step 6: Transfer the pulley to the new pump (if the new pump doesn’t include one)

• Use a power steering pump pulley puller/installer kit (specialty) to pull the pulley off the old pump.
• Use the installer from the same kit to press the pulley onto the new pump.
• The pulley must be pressed on straight and seated to the correct depth; align it so the belt runs true across all pulleys.
• If the pulley wobbles, stop and reseat it.

Step 7: Install the new pump

• Set the new pump into position and start the mounting bolts by hand.
• Tighten with a 13mm socket, then Torque to 25 Nm (18 ft-lbs) using a torque wrench.

Step 8: Reconnect the pressure line and return hose

• Thread the high-pressure fitting in by hand first to avoid cross-threading.
• Tighten using a flare nut wrench, then Torque to 27 Nm (20 ft-lbs) using a torque wrench (use a crowfoot if needed, keeping it aligned for accurate torque).
• Reinstall the return hose and position the clamp using hose clamp pliers.

Step 9: Reinstall the serpentine belt

• Route the belt according to the under-hood belt routing diagram.
• Use a 15mm wrench or serpentine belt tool to rotate the tensioner and slide the belt onto the pump pulley.
• Visually confirm the belt is fully seated in every pulley groove.

Step 10: Refill the reservoir

• Use a funnel to fill the reservoir with MERCON V automatic transmission fluid to the correct level.
• Leave the cap off for the initial bleed so you can watch for foaming.

Step 11: Bleed air from the system (critical)

• With the front wheels still off the ground and the engine OFF, turn the steering wheel slowly from lock-to-lock about 15–20 times.
• Check the reservoir level and top off using MERCON V automatic transmission fluid.
• Start the engine and let it idle. Do not rev the engine.
• Turn the steering wheel slowly left/right several times. Do not hold against the stops.
• If the fluid looks milky/foamy, shut the engine off and let it sit 10–15 minutes, then repeat.

Step 12: Reinstall removed covers/ducting

• Reinstall any intake ducting/engine cover using a trim clip removal tool and 8mm socket or 10mm socket.
• Double-check that no tools or rags are left in the engine bay.

---

✅ After Repair

• With the engine idling, inspect the pump, pressure fitting, and return hose for leaks using shop towels.
• Lower the truck off the jack stands and test-drive at low speed, making several gentle turns.
• Recheck fluid level after the test drive and top off as needed with MERCON V automatic transmission fluid.
• If you still hear whining, there’s likely air trapped—repeat the bleed steps.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$950 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
