🔧 Accord - Fuel Pump Replacement

On your Accord, the fuel pump sits inside the fuel tank as part of an in-tank module under the rear seat. Replacing it usually means removing the rear seat cushion, opening the service cover, disconnecting fuel lines/wiring, and swapping the pump/module with a new seal to prevent leaks.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🧯 Work outside or in a very well-ventilated area—fuel vapors are flammable.
• No smoking, no sparks, no shop lights with broken lenses; keep a fire extinguisher nearby.
• Disconnect the negative battery cable before opening the tank.
• Relieve fuel pressure before disconnecting any fuel line to avoid spraying fuel.
• Clean dirt around the pump opening—dirt in the tank can ruin the new pump.
• Use a brass punch (not steel) if tapping the lock ring to reduce spark risk.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" drive ratchet
• 6" socket extension
• Phillips screwdriver #2
• Small flathead screwdriver
• Plastic trim removal tool
• Needle-nose pliers
• Brass punch (specialty)
• Small hammer
• Fuel line disconnect pick set (specialty)
• Torque wrench (3/8" drive)
• Shop rags
• Catch pan (small)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal / O-ring - Qty: 1
• Fuel pump strainer (sock filter) - Qty: 1
• New pump lock ring (if damaged/corroded) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and keep the doors open for ventilation.
• Run the fuel level down if possible (around 1/4 tank makes it easier/cleaner).
• Open the trunk and remove anything that could spark (portable chargers, loose metal tools).
• Plan to replace the tank seal/O-ring no matter what—reusing it often causes fuel smell/leaks.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the hood.
• Use a 10mm socket and ratchet to disconnect the negative battery cable and isolate it so it can’t spring back.
• Find the under-hood fuse/relay box and remove the fuel pump fuse/relay (location can vary by box label).
• Reconnect the negative battery cable temporarily using the 10mm socket, start the engine, and let it run until it stalls.
• Turn the key off, then disconnect the negative battery cable again using the 10mm socket.
• Tip: This minimizes fuel spray at the lines.

Step 2: Remove the rear seat bottom cushion

• From the back seat area, locate the front edge of the rear seat cushion.
• Use a plastic trim removal tool to help pop the seat cushion clips upward (pull up firmly near the clip points).
• Lift the cushion out and set it aside.

Step 3: Access the fuel pump service cover

• Locate the metal service cover on the floor under the rear seat.
• Use a Phillips screwdriver #2 or 10mm socket (fastener type varies) to remove the cover fasteners.
• Lift the cover off. Use shop rags to wipe dust away from the area.

Step 4: Disconnect the electrical connector and fuel lines

• Unplug the pump electrical connector by releasing the lock tab with a small flathead screwdriver (gently).
• Place a catch pan (small) and shop rags around the line connections.
• Disconnect the fuel line quick-connect fitting:
  • Use needle-nose pliers or a fuel line disconnect pick set (specialty) to release the connector tabs (style varies).
  • Pull the line straight off—do not twist aggressively.
• Tip: Cover the joint with a rag as you pull.

Step 5: Remove the pump lock ring

• Mark the pump module orientation to the tank with a small flathead screwdriver (a small scratch mark) so the new one goes in the same way.
• If it uses a locking ring (common), use a brass punch (specialty) and small hammer to tap the ring counterclockwise until it unlocks.
• Lift the lock ring off and set it aside.
• Tip: Brass helps reduce spark risk.

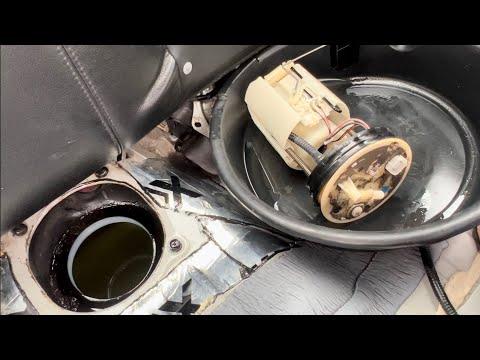

Step 6: Remove the fuel pump module

• Carefully lift the module straight up. Angle it as needed to clear the tank opening without forcing it.
• Let fuel drip into the catch pan (small).
• Remove the old tank seal/O-ring from the tank opening using a small flathead screwdriver carefully (don’t gouge the sealing surface).

Step 7: Install the new seal and new pump/module

• Install the new fuel pump module tank seal / O-ring into the tank groove evenly (no twists).
• Lower the new pump/module into the tank in the same orientation as your marks.
• Reinstall the lock ring and lock it fully using the brass punch (specialty) and small hammer (tap clockwise until fully seated/locked).
• If your setup uses small bolts instead of a lock ring, use a torque wrench and 10mm socket and Torque to factory specification.

Step 8: Reconnect the fuel lines and wiring

• Push the fuel line quick-connect on until it clicks/locks. Tug gently to confirm it’s secure.
• Reconnect the electrical connector until it clicks.
• Wipe everything dry with shop rags so leaks are easy to spot later.

Step 9: Reinstall the service cover and rear seat

• Reinstall the service cover and fasteners using a Phillips screwdriver #2 or 10mm socket.
• Reinstall the rear seat cushion: align it, then push down firmly to snap the clips in.

Step 10: Prime the system and check for leaks

• Reconnect the negative battery cable using a 10mm socket.
• Turn the key to ON (do not crank) for 5 seconds, then OFF. Repeat 3 times to prime the fuel system.
• Start the engine and let it idle.
• Check under the rear seat access area for any fuel smell or wetness.

---

✅ After Repair

• Road-test for 10-15 minutes, then recheck for fuel smell/leaks when you park.
• If the engine cranks but won’t start, recheck the fuel line quick-connect is fully seated and the electrical connector is clicked in.
• If you have a check engine light after the repair, scan for codes (often a loose connection or EVAP-related issue from a disturbed seal).

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹45,000 (parts + labor)

DIY Cost: ₹7,000-₹25,000 (parts only)

You Save: ₹11,000-₹20,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,500-₹3,000/hour. This repair takes a shop approximately 2-3 hours.

---
