🔧 Tucson - Automatic Transmission Fluid Drain & Refill

On your Tucson, the safest DIY “change” is typically a drain-and-refill (not a power flush). It replaces a portion of the old ATF and helps protect the transmission without shocking it with a high-pressure flush.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface; support with jack stands, not the jack.
• ⚠️ ATF can be hot—wear gloves and safety glasses.
• ⚠️ Keep the vehicle level while draining/filling, or your fluid level can be wrong.
• ⚠️ Do not crawl under the vehicle with the engine running unless it’s securely supported and wheels are chocked.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• Funnel with long flexible hose
• Fluid transfer pump (specialty)
• 3/8" drive ratchet
• 1/2" drive torque wrench (10–150 ft-lbs range)
• 24mm socket
• 10mm socket
• Trim clip tool
• OBD2 scan tool with live data ATF temperature (specialty)
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (Hyundai/Kia SP-IV spec) - Qty: 5 quarts
• Transmission drain plug crush washer - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks at the rear wheels.
• Warm the transmission with a 10–15 minute drive so ATF drains more completely.
• Plan how you’ll verify the fill method:
  • If your Tucson has an ATF dipstick, you’ll refill through the dipstick tube and verify level on the dipstick.
  • If there is no dipstick, you’ll need to set the level using the transmission’s level/check procedure (requires ATF temp reading).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and level the vehicle

• Use a floor jack (rated 3-ton minimum) to lift the front at the approved lift point.
• Set the vehicle on jack stands (rated 3-ton minimum) and confirm it’s stable.
• Keep the vehicle as level as possible (front-to-rear matters for correct ATF level).

Step 2: Remove the lower cover (if equipped)

• Use a trim clip tool to remove plastic clips.
• Use a 10mm socket to remove any bolts holding the splash shield.

Step 3: Locate the transmission drain plug and drain the ATF

• Position your drain pan (10-quart minimum) under the transmission drain plug.
• Use a 24mm socket to loosen and remove the drain plug.
• Let the ATF drain until it slows to a drip (usually 10–20 minutes).
• Tip: Measure what drains out.

Step 4: Reinstall the drain plug with a new washer

• Clean the drain plug area using shop rags and brake cleaner.
• Install a new transmission drain plug crush washer.
• Thread the plug in by hand, then tighten with a torque wrench.
• Torque to 39–49 Nm (29–36 ft-lbs)

Step 5A: Refill (IF your Tucson has an ATF dipstick)

• Open the hood and locate the ATF dipstick (usually a colored handle). Wipe around it with shop rags.
• Insert a funnel with long flexible hose into the dipstick tube.
• Pour in Hyundai/Kia SP-IV spec ATF equal to what you measured drained out (typically ~3–5 quarts).
• Start the engine. With your foot on the brake, slowly move the shifter through P-R-N-D and back to P, pausing 2–3 seconds in each position.
• With the engine idling and the vehicle level, check the dipstick and adjust in small amounts until it’s in the correct range.
• Tip: Add in 0.25-quart steps.

Step 5B: Refill & set level (IF your Tucson has NO dipstick)

• Connect your OBD2 scan tool with live data ATF temperature (specialty) and monitor ATF temperature.

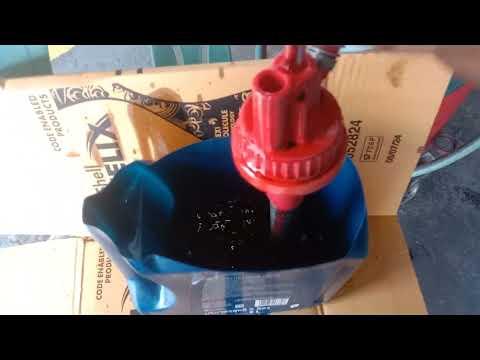

• Use a fluid transfer pump (specialty) and Hyundai/Kia SP-IV spec ATF to refill through the transmission fill port (access varies by layout).
• Start the engine and cycle the shifter slowly through P-R-N-D and back to P.
• With the engine idling and the vehicle level, set the final fluid level using the transmission’s level/check plug procedure while ATF is at operating check temperature.
• If you want, send a clear photo of the top/side of the transmission (fill/level plug area) and I’ll tell you exactly which plug to use and the correct temperature window for your setup.

Step 6: Reinstall the splash shield and lower the vehicle

• Reinstall the cover using a 10mm socket and any clips with the trim clip tool.
• Raise slightly with the floor jack, remove jack stands, and lower the vehicle.

---

✅ After Repair

• With the engine running, check for leaks around the drain plug.
• Test drive 10–15 minutes, then recheck the ATF level (dipstick method) and inspect again for leaks.
• If shifting feels worse (flare, slip, harsh shifts), stop driving and recheck level—being low even 0.5 quart can cause problems.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $45-$90 (parts only)

You Save: $175-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
