🔧 Crosstour - Front Turn Signal Bulb Replacement

You’ll be replacing the front driver-side turn signal bulb inside the headlight housing. When the bulb burns out, you’ll usually get a fast-blink turn signal or a warning on the dash.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Park on level ground and set the parking brake before working near the front wheel area.
• ⚠️ Let the headlight area cool if the lights were recently on.
• ⚠️ Don’t touch the new bulb’s glass with bare fingers; skin oils can shorten bulb life.
• ⚠️ No battery disconnect is required for this bulb replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Trim clip removal tool
• Phillips screwdriver #2
• 10mm socket
• 1/4" ratchet
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front turn signal bulb (amber) - Qty: 1
• Plastic push clips (fender liner/splash shield) - Qty: 2

---

📋 Before You Begin

• Park your Crosstour on a flat surface and set the parking brake.
• Turn the steering wheel fully to the right to open up space at the driver-side fender liner.
• Have a flashlight ready; the bulb access is tight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Create access through the driver-side fender liner

• Use safety glasses and nitrile gloves.
• Turn the wheel fully right (you already did this) to make room.
• Use a trim clip removal tool to pop out the plastic push clips along the front edge of the driver-side fender liner.
• If your liner uses screws/bolts, remove them with a Phillips screwdriver #2 or 10mm socket and 1/4" ratchet.
• Pull the fender liner back just enough to reach behind the headlight. Don’t force it—plastic cracks easily.

Step 2: Locate the front turn signal bulb socket

• Use a flashlight to look behind the driver-side headlight assembly.
• Find the turn signal socket (it’s the socket that twists out of the headlight housing; it will have two wires going into it).

Step 3: Remove the bulb socket

• Grip the socket firmly and rotate it about 1/4 turn counterclockwise by hand (use nitrile gloves for grip), then pull it straight out.
• If it’s stubborn, wiggle gently while pulling—don’t yank the wiring.

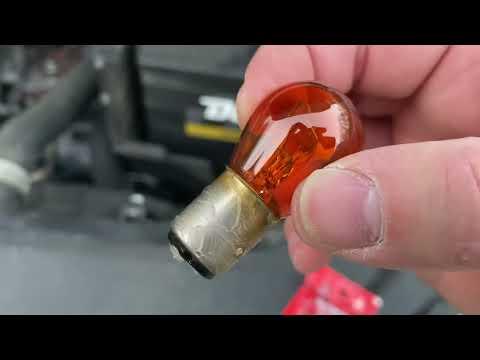

Step 4: Replace the bulb

• Pull the old bulb straight out of the socket by hand.
• Install the new front turn signal bulb (amber) into the socket by pushing it straight in until fully seated.
• Do not touch the bulb glass with bare fingers; keep nitrile gloves on. Clean with alcohol if touched.

Step 5: Reinstall the socket

• Insert the socket back into the headlight housing.
• Rotate clockwise about 1/4 turn until it locks in place (snug by hand; no tools).

Step 6: Reinstall the fender liner

• Push the fender liner back into position.
• Reinstall clips with the trim clip removal tool (push the clip body in, then press the center pin flush).
• Reinstall any screws/bolts using a Phillips screwdriver #2 or 10mm socket with a 1/4" ratchet.

---

✅ After Repair

• Turn the ignition to ON and test the left turn signal and hazards.
• Confirm the turn signal blink rate is normal (not fast).
• Walk around and verify the bulb is amber and bright.
• If it still fast-blinks, re-check bulb seating and socket lock-in.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$180 (parts + labor)

DIY Cost: $8-$25 (parts only)

You Save: $55-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
