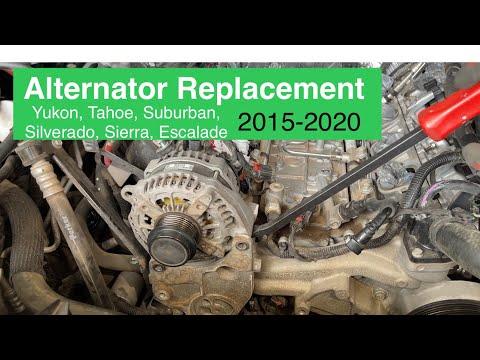

🔧 Escalade - Alternator Replacement

Your Escalade’s alternator (generator) charges the battery and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the serpentine belt from the alternator pulley, swapping the unit, and reinstalling everything in the correct order.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching alternator wiring.
• ⚠️ Keep hands/tools clear of the cooling fan and belt path.
• ⚠️ Don’t allow the alternator B+ cable to touch metal (it’s direct battery power).
• ⚠️ Work on a cool engine to avoid burns from hot components.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 3/8" drive ratchet
• 3/8" drive torque wrench
• 6" extension (3/8")
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• Flat trim tool
• Serpentine belt tool or 3/8" breaker bar (specialty)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if worn/cracked)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• Have a photo of the belt routing ready (use the under-hood belt routing label if equipped).
• A “serpentine belt tool” is a long handled lever that safely rotates the belt tensioner to loosen the belt.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Lift the negative cable off and tuck it aside so it can’t spring back.

Step 2: Remove the engine cover and air intake duct

• Remove the engine cover by pulling upward evenly (use a flat trim tool if it’s stubborn).
• Use an 8mm socket to loosen the air intake duct clamps.
• Carefully lift the duct/resonator out of the way to access the alternator.

Step 3: Relieve belt tension and move the belt off the alternator

• Place the serpentine belt tool or 3/8" breaker bar into the belt tensioner drive.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to rest. Don’t let it snap back.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator electrical connector (press the tab; use a flat trim tool gently if needed).
• Remove the protective cap over the main power stud.
• Use a 13mm socket to remove the B+ cable nut, then move the cable aside.
• When reinstalling: Torque to 15 Nm (11 ft-lbs) on the B+ terminal nut.

Step 5: Remove the alternator mounting bolts

• Support the alternator with one hand.
• Use a 15mm socket with a 6" extension (3/8") and 3/8" drive ratchet to remove the alternator mounting bolts.
• Lift the alternator out carefully without snagging hoses/wiring.

Step 6: Install the new alternator

• Set the new alternator into place and start the mounting bolts by hand to avoid cross-threading.
• Use a 15mm socket to snug the bolts evenly.
• Use a 3/8" drive torque wrench: Torque to 50 Nm (37 ft-lbs) for the alternator mounting bolts.

Step 7: Reconnect wiring and reinstall the belt

• Reconnect the B+ cable and tighten with a 13mm socket, then reinstall the protective cap. Torque to 15 Nm (11 ft-lbs)
• Plug in the alternator electrical connector until it clicks.
• Rotate the tensioner using the serpentine belt tool or 3/8" breaker bar and reinstall the belt on the alternator pulley.
• Double-check every rib is seated in every pulley groove. Misalignment causes squeal.

Step 8: Reinstall intake duct and engine cover

• Reinstall the air intake duct and tighten clamps using an 8mm socket.
• Press the engine cover back onto its mounting grommets until fully seated.

Step 9: Reconnect the battery

• Reconnect the negative battery terminal and tighten using a 10mm socket.

---

✅ After Repair

• Start your Escalade and listen for belt squeal or rubbing.
• With the engine idling, charging voltage should typically be about 13.5-14.8V (use a multimeter if you have one).
• Check that the battery warning light stays off.
• Recheck the belt routing and the B+ cap is fully installed.

---

💰 DIY vs Shop Cost

Shop Cost: $750-$1,250 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $500-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
