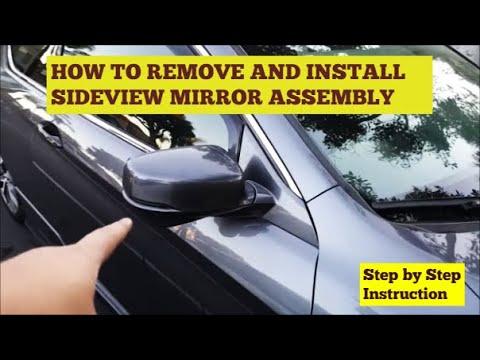

🔧 Accord - Side View Mirror Replacement

On your Accord, the side mirror assembly is bolted to the door from the inside and plugged into a wiring connector inside the door. The job is mostly trim removal so you can unplug the mirror, remove the mounting nuts, and install the new mirror without damaging clips or the paint.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🧤 Disconnect the negative battery cable before unplugging door wiring.
• 🪟 Lower the window fully so you don’t bump the glass while pulling trim.
• 🛑 Use plastic trim tools to avoid scratching painted surfaces.
• 🔥 If the car was in the sun, interior trim can be hot and brittle—work gently.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm wrench
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torque wrench (in-lb or low-range ft-lb)
• Phillips screwdriver #2
• Plastic trim removal tool set
• Pick tool
• Needle-nose pliers
• Painter's tape
• Magnetic parts tray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Door mirror assembly (Left/Driver or Right/Passenger, paint-to-match or primed) - Qty: 1
• Door trim panel clips - Qty: 1 set
• Butyl tape (door vapor barrier reseal) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Use painter's tape to protect the door paint around the mirror base.
• Lower the window all the way.
• Disconnect the battery: use a 10mm wrench to remove the negative (-) cable and keep it from springing back.
• A trim tool is a plastic pry tool for panels.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the inner mirror corner trim (sail panel)

• Use a plastic trim removal tool to pry off the small triangular cover at the front-top corner of the door (inside).
• If it has a small clip tether, release it with a pick tool.
• Set the panel aside in a safe spot.

Step 2: Remove the door panel screws

• Inside the door pull/armrest pocket, remove the screw using a Phillips screwdriver #2.
• Behind the interior door handle area, pop the small cover with a plastic trim removal tool, then remove the screw using a Phillips screwdriver #2.
• Place screws in a magnetic parts tray.

Step 3: Release the door panel clips and lift the panel off

• Starting at the bottom edge, slide a plastic trim removal tool under the panel and pop the clips free one-by-one.
• Once all clips are loose, lift the whole door panel straight up to unhook it from the window ledge.
• Pull near each clip to avoid cracking the panel.

Step 4: Disconnect door panel wiring and the handle cable

• Support the door panel with your knee or a box.
• Unplug the electrical connectors using your fingers or needle-nose pliers (press the lock tab, then pull).
• Disconnect the inside door handle cable: use a plastic trim removal tool to unclip the cable housing, then lift the cable end out of the lever.

Step 5: Peel back the vapor barrier enough to access the mirror connector

• Carefully peel the plastic water shield back near the mirror area by hand.
• If the sticky sealer won’t re-stick later, plan to reseal with butyl tape.

Step 6: Unplug the mirror connector

• Find the mirror wiring connector inside the door near the mirror mounting area.
• Press the lock tab and unplug it by hand; if tight, use a pick tool to gently help the tab.
• If your mirror has extra features (turn signal/heated glass), it may have additional connectors—unplug all mirror-related connectors you see in that corner.

Step 7: Remove the mirror mounting nuts

• Hold the mirror with one hand from the outside so it doesn’t fall.
• Use a 10mm socket, 1/4" drive ratchet, and 6" extension to remove the mirror mounting nuts (typically 3 nuts).
• Remove any foam gasket/washer pieces only if your replacement mirror does not include them.

Step 8: Remove the mirror assembly from the door

• From outside the door, lift the mirror away while feeding the wiring and rubber grommet through the hole.
• Keep the mirror base from rubbing the paint (your painter's tape helps here).

Step 9: Install the new mirror assembly

• Feed the new mirror wiring and grommet through the door hole by hand.
• Set the mirror onto the door and start all nuts by hand first (prevents cross-threading).
• Tighten the nuts evenly using a 10mm socket and ratchet.
• Final tighten using a torque wrench: Torque to 9 N·m (7 ft-lbs).

Step 10: Reconnect wiring and reseal the vapor barrier

• Plug the mirror connector(s) back in until you feel/hear them click.
• Press the vapor barrier back into place firmly by hand.
• If needed, apply butyl tape to reseal edges so water can’t get into the cabin.

Step 11: Reinstall the door panel

• Reconnect all door panel electrical connectors by hand.
• Reconnect the interior handle cable (hook the cable end in, then snap the housing back into its bracket).
• Hang the door panel on the top window ledge, then press down to seat it.
• Press around the edges to pop all clips back in.
• Reinstall the screws using a Phillips screwdriver #2, then snap the small covers back on using a plastic trim removal tool.

Step 12: Reinstall the sail panel

• Line it up and press it into place by hand.
• If it uses a tether/clip, reattach it first using a pick tool.

---

✅ After Repair

• Reconnect the battery negative cable using a 10mm wrench.
• Key ON and test mirror functions: power adjust in all directions.
• If equipped, test mirror turn signal and mirror heater/defogger function.
• Check the mirror sits flush and doesn’t wobble.
• Lightly spray water at the window/mirror area and confirm no water leak at the door panel.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor, per side)

DIY Cost: $90-$350 (parts only, per side)

You Save: $160-$300+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
