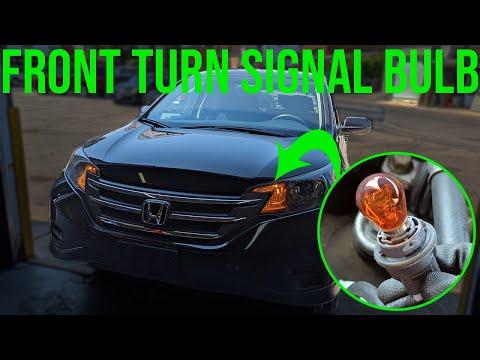

🔧 CR-V - Front Turn Signal Bulb Replacement

You’ll be changing the front turn signal bulbs in the headlight housings on your CR-V. The Touring trim still uses replaceable amber bulbs for the front turn signals, even though the headlights themselves are LED.

Difficulty Level: Beginner | Estimated Time: 20–40 minutes

---

⚠️ Safety & Precautions

• ⚠️ Park on a flat surface, shift to Park, and set the parking brake.
• ⚠️ Switch the ignition OFF and remove the key (or turn vehicle fully off) so lights cannot come on while your hands are near the bulbs.
• ⚠️ Let the engine bay cool if you’ve driven recently; parts near the headlights can be hot.
• ⚠️ Do not touch the glass part of any bulb with bare fingers; skin oil can shorten bulb life.
• ⚠️ Keep loose clothing, hair, and jewelry away from belts and fans if you open the hood on a warm engine.
• ⚠️ Battery disconnect is not required for this job, but avoid shorting any connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Work light or flashlight
• 🛠️ Flathead screwdriver (small)
• 🛠️ Trim clip removal tool (specialty)
• 🛠️ 10mm socket
• 🛠️ 1/4" drive ratchet
• 🛠️ Short 1/4" drive extension
• 🛠️ Mechanic’s gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Front turn signal bulb (amber 7444NA or equivalent) - Qty: 2 (replace both sides)
• 🔩 Plastic push clips for upper radiator cover - Qty: 2–4 (optional, in case any break)

---

📋 Before You Begin

• 📝 Park the CR-V on level ground, shift to Park, set the parking brake, and turn the ignition and all lights OFF.
• 📝 Open the hood using the interior hood release, then lift the hood and secure it with the prop rod.
• 📝 If you have preset radio stations or navigation settings, no special menu work is needed; this repair does not affect electronics.
• 📝 Put on safety glasses and gloves before reaching into the engine bay or behind the headlight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access behind the headlight (driver side)

• Use the work light or flashlight to look behind the driver-side headlight from inside the engine bay.
• You’ll see several bulb sockets in the back of the headlight; the front turn signal socket is usually the larger one toward the outer corner of the vehicle, with an amber bulb inside.
• If access is tight, gently move any soft rubber hoses or wiring looms aside with your hand, but do not pull hard on wires.

Step 2: Improve access by loosening the upper cover (if needed)

• If your hand doesn’t fit well behind the headlight, remove a few plastic clips from the upper radiator cover.
• Use the flathead screwdriver (small) to carefully lift the center pin of the plastic push clips on the black plastic cover above the grille, directly over the headlight.
• Then use the trim clip removal tool (specialty) to pry up and remove the clips completely.
• If there is a nearby 10mm bolt holding a plastic bracket that blocks access, use the 10mm socket with the 1/4" drive ratchet and short extension to remove it. Torque on reassembly to 9 Nm (80 in-lbs).
• Only remove what’s clearly in your way.

Step 3: Remove the turn signal bulb socket

• Reach behind the headlight and locate the turn signal bulb socket again (the one close to the outer side with an amber bulb).
• Grasp the socket firmly with one hand.
• Turn the socket about a quarter-turn counterclockwise by hand to unlock it. No tool is needed here.
• Gently pull the socket straight out from the headlight housing.

Step 4: Remove the old bulb

• Hold the socket so you can see the bulb clearly.
• Most 7444NA bulbs are “wedge” bulbs, which push straight into the socket.
• Grip the glass base of the bulb with your gloved fingers and pull it straight out from the socket.
• If it’s stuck, gently wiggle while pulling—do not twist the glass hard to avoid breaking it.

Step 5: Install the new bulb

• Take the new front turn signal bulb (amber 7444NA) from the package. Do not touch the glass with bare fingers; use gloves or hold the metal base.
• Align the base of the bulb with the socket opening.
• Push the bulb straight into the socket until it seats firmly. You should feel it click or stop moving.
• If it feels loose, remove and reinstall.

Step 6: Reinstall the bulb socket into the headlight

• Guide the bulb and socket back into the opening in the rear of the headlight housing.
• Line up the tabs on the socket with the notches in the headlight opening.
• Insert the socket fully, then turn it clockwise about a quarter-turn to lock it in place by hand. It should feel snug and stop firmly.
• No tools are needed here; do not over-tighten or force it.

Step 7: Test the new bulb (driver side)

• Close the driver door, then briefly turn the ignition to ON (engine can stay off) and activate the left turn signal.
• Walk to the front and check that the left front turn signal flashes normally and is bright and amber.
• If it doesn’t light, turn the ignition OFF, remove the socket again, and make sure the bulb is fully seated and the socket is properly locked in the housing.
• Once confirmed, turn ignition and signal OFF again before working on the other side.

Step 8: Repeat for the passenger side

• On the passenger side, repeat Steps 1–7 for the right front turn signal.
• Access is similar, though you may have windshield washer components nearby—just move hoses gently aside with your hand, do not disconnect anything.
• If a bracket or cover is in the way, remove any plastic clips using the flathead screwdriver (small) and trim clip removal tool (specialty), and any 10mm bolts with the 10mm socket and 1/4" drive ratchet. Torque bolts to 9 Nm (80 in-lbs) when reinstalling.

Step 9: Reinstall any covers and clips

• Reposition the upper radiator cover or any plastic panels you loosened.
• Insert plastic push clips back into their holes, then push the center pin down to lock them using your fingers.
• If you removed any 10mm bolts, reinstall them with the 10mm socket and 1/4" drive ratchet and tighten to 9 Nm (80 in-lbs).
• Replace any damaged clips with new ones.

---

✅ After Repair

• ✅ Turn ignition to ON and test left and right turn signals, plus the hazard lights, to confirm all front turn signals flash correctly and at normal speed.
• ✅ Check both front corners from a distance to ensure the brightness and color match on both sides.
• ✅ Make sure there are no warning lights related to exterior lighting on the dash.
• ✅ Close the hood securely and confirm it latches properly.

---

💰 DIY vs Shop Cost

Shop Cost: $80–$150 (parts + labor)

DIY Cost: $10–$25 (parts only, for two bulbs)

You Save: $70–$140 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 0.3–0.5 hours.

---
