🔧 F-150 - Front Windshield Wiper Blade Replacement

Replacing the front wiper blades keeps your windshield clear and helps prevent streaking and chattering in rain. On your F-150, the easiest way is to put the wipers into “service position” so you can lift the arms safely without them hitting the hood.

Difficulty Level: Beginner | Estimated Time: 10-20 minutes

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers clear of the wiper linkage while moving the wipers.
• ⚠️ Never let a bare wiper arm snap onto the glass (it can crack the windshield).
• ⚠️ If a wiper arm feels stuck, don’t force it—recheck service position first.
• Battery disconnect is not required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Small flathead screwdriver
• Clean shop towel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front wiper blades - Driver: 22", Passenger: 22" - Qty: 2

Assumption: Most 2016 F-150 front blades are 22" / 22"; match your old blade length if it differs.

---

📋 Before You Begin

• Park on level ground and turn the truck off.
• Make sure the wipers are not frozen to the windshield.
• Set the wipers to service position (this moves them up so you can lift the arms safely): turn ignition ON, then OFF, then within 3 seconds tap the wiper stalk to Mist (one quick wipe).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Move the wipers into service position

• Use the ignition switch to turn ignition ON, then OFF.
• Use the wiper stalk and tap to Mist within 3 seconds so the blades park up on the glass.
• If they don’t move up, repeat once (timing matters). Don’t force the wiper arms up.

Step 2: Lift one wiper arm and protect the glass

• Lift one wiper arm away from the windshield until it holds itself up.
• Place a clean shop towel on the glass under the arm (extra protection in case it slips).

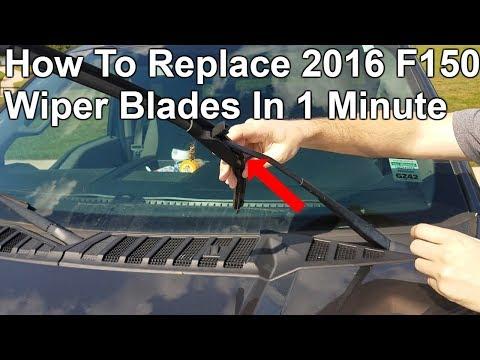

Step 3: Remove the old wiper blade

• Rotate the blade so you can see the connector where it clips to the arm.
• Press the small release tab on the blade connector using your thumb; if it’s tight, use a small flathead screwdriver to gently help press the tab.
• Slide the blade down/off the hook/connector and remove it from the arm.

Step 4: Install the new wiper blade

• Line up the new blade’s connector with the wiper arm.
• Slide/clip it into place until you hear/feel a solid click.
• Lightly tug on the blade to confirm it’s locked in. If it pulls off, it isn’t latched.

Step 5: Lower the wiper arm gently

• Carefully lower the arm back onto the windshield with your hand guiding it down.
• Remove the shop towel.

Step 6: Repeat for the other side

• Repeat Steps 2–5 for the other front wiper blade.

Step 7: Return wipers to normal and test

• Turn ignition ON.
• Use the wiper stalk to run the wipers on low speed for a few passes.
• Use the washer spray and confirm the blades wipe cleanly without streaks or skipping.

---

✅ After Repair

• Confirm both blades park normally at the bottom of the windshield.
• If you get streaks, clean the windshield edge-to-edge and wipe the new rubber with a damp towel.
• If one blade “chatters,” recheck that it fully clicked into the arm.

---

💰 DIY vs Shop Cost

Shop Cost: $40-$90 (parts + labor)

DIY Cost: $20-$60 (parts only)

You Save: $20-$30 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.4 hours.

---
