🔧 Outback - Front Door Lock Actuator Replacement

On your Outback, the “door lock actuator” is typically part of the door latch assembly inside the door. Replacing it requires removing the interior door panel, peeling back the moisture barrier, and swapping the latch/actuator unit, then reconnecting the rods and electrical connector.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (one door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to reduce the risk of shorts and to avoid setting warning lights.
• ⚠️ Keep the window glass fully up; avoid pushing on the glass while working inside the door.
• ⚠️ The door’s metal edges are sharp—wear gloves and work slowly.
• ⚠️ Don’t tear the moisture barrier; it prevents water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Trim clip removal tool
• Plastic pry tool set
• JIS #2 screwdriver
• Phillips #2 screwdriver
• Torx T30 bit
• 1/4" drive ratchet
• 3" extension (1/4")
• 10mm socket (1/4")
• Needle-nose pliers
• Pick tool
• Magnetic parts tray
• Painter’s tape
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel trim clips - Qty: 6-12
• Butyl tape (moisture barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and turn the ignition off.
• Lower the window about 1 inch, then raise it fully (this helps seat the glass before you start).
• Use a 10mm socket to disconnect the negative battery terminal and isolate it so it can’t spring back.
• Apply painter’s tape along the door edge and around the interior handle area to help prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: This procedure fits either front door; driver/passenger are the same idea, but rod routing and connector positions may differ slightly.

Step 1: Remove the switch panel and visible screws

• Use a plastic pry tool set to gently pry up the window/lock switch panel.
• Unplug the electrical connectors by pressing the tab and pulling straight out (don’t yank wires).
• Use a JIS #2 screwdriver (best fit for Subaru screws) or Phillips #2 screwdriver to remove the screw(s) behind the switch panel and at the interior pull handle area (locations vary by door panel style).

Step 2: Remove the interior door handle bezel

• Use a plastic pry tool set to pop off the small bezel/trim around the interior door handle.
• Remove any hidden screw with a JIS #2 screwdriver.

Step 3: Pop the door panel clips and lift the panel off

• Slide a trim clip removal tool under the bottom edge of the door panel and pop the clips one-by-one.
• Once clips are free, lift the door panel straight up to unhook it from the window ledge.
• Support the panel and unplug any remaining connectors using a pick tool if you need help pressing a stubborn tab.

Step 4: Disconnect the interior handle and lock cable/rod

• Behind the panel, you’ll see the interior handle linkage (often a cable with a colored retaining clip).
• Use needle-nose pliers to rotate the retaining clip open, then lift the cable end/rod out of its seat.
• Take a photo before removal.

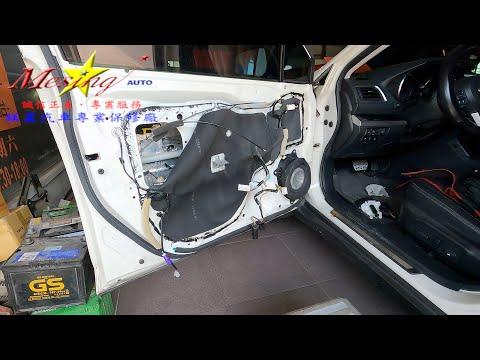

Step 5: Peel back the moisture barrier

• The moisture barrier is the plastic sheet glued to the door with sticky butyl.
• Use a plastic pry tool set to slowly peel it back only as far as needed to access the latch area.
• If the butyl gets messy, use nitrile gloves and plan to reseal with butyl tape.

Step 6: Unplug the latch/actuator electrical connector

• Locate the latch/actuator connector near the rear of the door (latch side).
• Press the tab and disconnect it; use a pick tool gently if the tab is tight.

Step 7: Remove the latch/actuator mounting screws at the door edge

• Open the door and find the latch fasteners on the trailing edge of the door (near the striker).
• Use a Torx T30 bit with a 1/4" drive ratchet and 3" extension to remove the latch screws.
• Torque on install: Per Subaru service manual specification

Step 8: Detach the exterior handle rod and lock rod (as equipped)

• Inside the door, locate the metal rod(s) going to the latch.
• Use needle-nose pliers to flip each plastic retainer clip open, then lift the rod out.
• Keep track of which rod goes where (photo helps).

Step 9: Remove the latch/actuator assembly from the door

• Work the latch out through the access opening in the door.
• Use a flashlight to guide it past the window track and wiring.

Step 10: Install the new latch/actuator assembly

• Place the new assembly into the door in the same orientation as the old one.
• Reconnect the rods/cable: insert the rod end first, then rotate the retaining clip fully closed using needle-nose pliers.
• Plug in the electrical connector until it clicks.
• Reinstall the door-edge latch screws using a Torx T30 bit.
• Torque: Per Subaru service manual specification

Step 11: Function-test before reassembly

• Reconnect the battery negative terminal using a 10mm socket.
• With the door open, test lock/unlock using the switch and key fob.
• Test the interior handle and exterior handle for smooth opening.
• If anything binds, disconnect the battery again with a 10mm socket and recheck rod routing and clip seating.

Step 12: Reseal the moisture barrier and reinstall the door panel

• Press the moisture barrier back into the butyl; add butyl tape anywhere it won’t stick.
• Reconnect all door panel electrical connectors (switch panel, courtesy light, etc.).
• Hook the top of the door panel onto the window ledge, then press clips in around the edges by hand.
• Reinstall screws using a JIS #2 screwdriver or Phillips #2 screwdriver.
• Snap the handle bezel and switch panel back in using a plastic pry tool set (gentle pressure).
• Torque: Hand-snug for interior trim fasteners per Subaru service manual

---

✅ After Repair

• Test: key fob lock/unlock, door switch lock/unlock, inside lock knob (if equipped), and both handles.
• Confirm the window works and the switch panel sits flush.
• Check for wind noise or water leak risk: make sure the moisture barrier is fully sealed all the way around.
• Drive once and recheck: listen for door panel rattles; re-seat any loose clips if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $230-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
