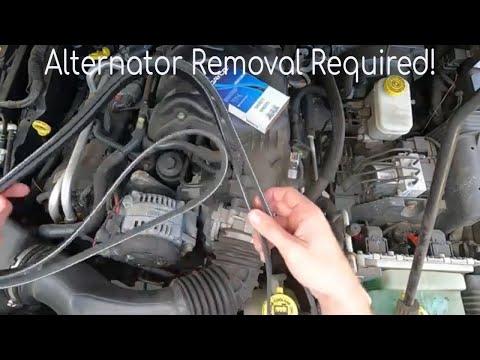

🔧 Wrangler - Serpentine Belt Replacement

The serpentine belt drives key accessories like the alternator, power steering pump, and A/C. Replacing a cracked, noisy, or glazed belt helps prevent a sudden loss of charging, steering assist, or overheating.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot pulleys can burn you.
• ⚠️ Keep fingers, hair, and clothing away from the belt path.
• ⚠️ Do not start the engine while hands/tools are near pulleys.
• ⚠️ If you remove any engine covers, secure them before starting.
• 🔋 Battery disconnect is not required, but remove the key and keep it in your pocket.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 15mm serpentine belt tool (specialty)
• 15mm combination wrench
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, transmission in neutral, and set the parking brake.
• Open the hood and make sure the hood is securely propped.
• Find the belt routing diagram (usually a sticker in the engine bay). If it’s missing, take a clear photo of the current routing before removing the belt.
• A “tensioner” is a spring-loaded arm that keeps the belt tight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Inspect the belt routing and pulleys

• Use a flashlight to locate the belt routing diagram and visually trace the belt around each pulley.
• Check the belt for cracks across the ribs, missing chunks, or shiny/glazed areas.
• Look at each pulley for wobble or damaged ribs.

Step 2: Relieve belt tension

• Place a 15mm serpentine belt tool (specialty) or 15mm combination wrench on the belt tensioner’s hex fitting.
• Rotate the tensioner smoothly to release tension. Hold it steadily—spring force is strong.
• Move slowly; don’t let the tensioner snap back.

Step 3: Remove the old belt

• While holding the tensioner with the 15mm serpentine belt tool (specialty) or 15mm combination wrench, slide the belt off one easy-to-reach pulley (often an upper smooth idler pulley).
• Carefully let the tensioner return to its resting position (don’t release it suddenly).
• Remove the belt completely from all pulleys by hand.

Step 4: Install the new belt (route first, tension last)

• Route the new belt around all pulleys following the under-hood diagram, leaving one easiest pulley for last.
• Make sure the ribbed side of the belt sits in ribbed pulleys, and the smooth side rides on smooth pulleys.
• Use the flashlight to confirm the belt ribs are fully seated in every grooved pulley.

Step 5: Apply tension and finish installation

• Rotate the tensioner again using the 15mm serpentine belt tool (specialty) or 15mm combination wrench.
• Slip the belt over the last pulley.
• Slowly release the tensioner so it applies tension to the belt.
• Re-check every pulley groove with the flashlight; a belt that’s one rib off can shred quickly.

---

✅ After Repair

• Start the engine and watch the belt for 20–30 seconds. It should run centered with no hopping or wandering.
• Listen for squealing or slapping sounds. If you hear noise, shut off the engine and re-check belt seating on every pulley.
• Take a short test drive, then re-check belt alignment again with the flashlight.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$220 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $60-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
