🔧 Tucson - Transmission Fluid Change (Drain/Fill or Exchange)

Your Tucson may have a “sealed” automatic transmission (no dipstick), which changes the correct fill/level-check procedure. To avoid overfilling or underfilling (both can damage the transmission), we need to confirm which fill method your Tucson uses before you start.

Quick questions (pick one): 1) Does your Tucson have an ATF dipstick under the hood? 2) Are you doing a simple drain-and-fill, or a complete fluid exchange?

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Support your Tucson on jack stands on level ground; never rely on a jack alone.
• 🔥 Transmission fluid can be hot; let it cool and wear gloves and safety glasses.
• ⚙️ For sealed transmissions, the fluid level is checked at a specific temperature; guessing the level can cause harsh shifting or damage.
• 🔌 Battery disconnect is not required for a basic fluid service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• Socket set (8mm-24mm)
• 3/8" drive ratchet
• Torque wrench (10-100 ft-lbs)
• Trim clip tool
• Funnel with long hose
• Fluid transfer pump (hand pump) (specialty)
• Scan tool with live data ATF temperature (specialty)
• Shop rags
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (Hyundai SP-IV spec) - Qty: 4-8 quarts
• Drain plug crush washer - Qty: 1
• Fill plug crush washer - Qty: 1

---

📋 Before You Begin

• Park your Tucson on a level surface, set the parking brake, and chock the rear wheels.
• Plan your method:
  • Drain-and-fill: replaces part of the fluid (most common DIY).
  • Complete exchange: replaces most/all fluid, usually through cooler lines with a machine or careful pump method.
• If your Tucson has no dipstick, you’ll need a scan tool to read ATF temperature (the temperature of the transmission fluid) for an accurate level check.
• If you can, upload a clear photo from under the front of the vehicle showing the transmission pan area and any plugs—then I’ll match the exact plug locations and procedure for your Tucson.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which fill method your Tucson uses

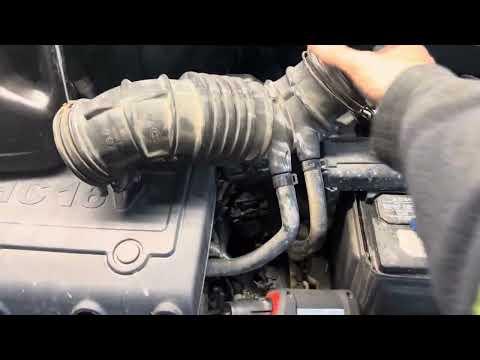

• Open the hood and look for an ATF dipstick (a pull handle labeled ATF). Use a flashlight if needed.
• If there is no dipstick, your Tucson uses a plug-and-level-check procedure that depends on fluid temperature.

Step 2: Raise and level the vehicle

• Use a floor jack to lift the front, then set it down on jack stands.
• Keep the vehicle as level as possible front-to-rear; level matters for accurate fluid level.

Step 3: Remove the lower cover (if equipped)

• Use a socket set (10mm-12mm) and a trim clip tool to remove any splash shield/undertray fasteners.
• Set clips/bolts aside in a small tray so you don’t lose them. Take a photo before removal.

Step 4: Identify the correct plugs before draining

• Locate the transmission case/pan and find the fill plug and drain plug.
• Important: Use a ratchet and the correct socket to confirm you can loosen the fill plug first. If you drain it and can’t refill it, you’re stuck.

Step 5: Stop here for torque specs + exact level procedure

• Torque specs and level-check steps depend on whether your Tucson has a dipstick or a sealed level plug setup.
• Reply with:
  • Whether you have an ATF dipstick (Yes/No), and
  • Whether you want drain-and-fill or complete exchange, and
  • If possible, upload a photo of the transmission pan area and plugs.
• Once you confirm, I’ll give you the exact step-by-step for your Tucson, including Torque to XX Nm (YY ft-lbs) values and the correct temperature-based level check if sealed.

---

✅ After Repair

• Verify there are no leaks under the transmission after the first short drive.
• Make sure shifts feel normal (no flare, no harsh engagement, no slipping).
• If your Tucson uses a sealed level check, the final verification must be done at the specified ATF temperature range (I’ll provide that once we confirm your setup).

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (drain-and-fill) or $350-$700 (exchange)

DIY Cost: $50-$140 (fluid + washers)

You Save: $170-$560 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.5 hours.

---
