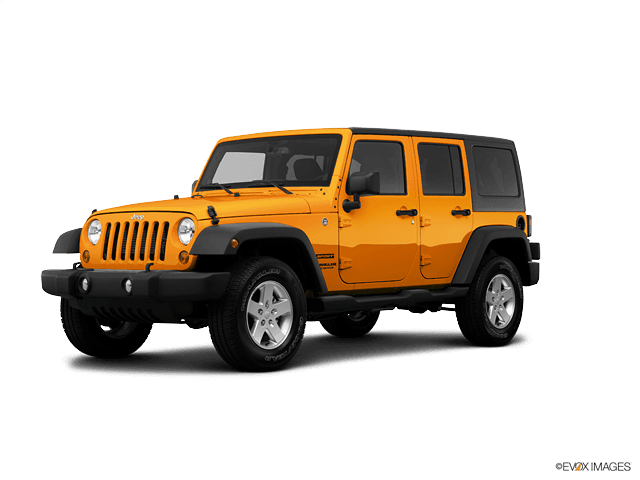

🔧 Wrangler - Front Door Lock Actuator Replacement

On your Wrangler, the “lock actuator” is part of the door latch assembly inside the door. Replacing it means removing the interior door panel, disconnecting the lock/handle cables and electrical connector, then swapping the latch/actuator assembly at the door edge.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep the window fully UP before starting to avoid glass damage.
• ⚠️ Disconnect the negative battery terminal before unplugging door wiring.
• ⚠️ Support the door panel as you lift it off—wires can still be attached.
• ⚠️ Use eye protection when popping trim clips (they can release suddenly).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension for 1/4" ratchet
• Torx T20 screwdriver
• Torx T30 screwdriver
• Trim clip removal tool
• Small flat-blade screwdriver
• Needle-nose pliers
• Pick tool
• Flashlight
• Painter’s tape
• Magnetic parts tray
• Torque wrench (inch-pound)
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel trim clips - Qty: 1 set
• Butyl rope or door vapor barrier adhesive - Qty: 1

---

📋 Before You Begin

• Park on level ground, key out, and keep the window fully up.
• Open the front door you’re working on and use painter’s tape along painted edges near the panel to prevent scratches.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which front door and lock type

• Are we talking about the driver front or passenger front door?
• Do you have power locks (lock/unlock switch), or manual locks (no switch)?

Step 2: Remove the interior door handle bezel

• Use a small flat-blade screwdriver to gently pry off the small trim/bezel around the interior door handle.
• Work slowly to avoid snapping the plastic tabs. Pry from the seam, not the face.

Step 3: Remove door panel screws

• Remove visible screws with a Torx T20 screwdriver (common locations: pull handle/armrest area and near the door handle bezel).
• If your panel has a larger Torx at the pull handle, remove it using a Torx T30 screwdriver.
• Place all fasteners in a magnetic parts tray so nothing is lost.

Step 4: Pop the door panel clips and lift the panel off

• Slide a trim clip removal tool between the panel and the metal door and pop the clips free around the perimeter.
• Trim clip removal tool = a fork-shaped pry tool that releases push-clips without tearing the panel.
• Once all clips are free, lift the panel straight UP to unhook it from the top edge near the window channel.
• Support the panel—don’t let it hang by wiring.

Step 5: Disconnect wiring and handle/lock connections

• If equipped with power locks/windows: unplug connectors by pressing the release tab using a pick tool (don’t yank the wires).
• Disconnect the interior handle cable(s): use a small flat-blade screwdriver to flip the cable retainer open, then lift the cable end out of the lever.
• Use a flashlight to clearly see how the cable housing locks into its bracket before removing it.

Step 6: Peel back the vapor barrier

• Carefully peel the plastic vapor barrier back enough to access the latch area, using a trim clip removal tool if needed.
• Try not to tear it—this keeps water from getting into the cabin.
• If the adhesive won’t stick later, you’ll use butyl rope or door vapor barrier adhesive during reassembly.

Step 7: Remove the door latch/actuator from the door edge

• At the rear edge of the door (by the striker), remove the latch mounting screws using a Torx T30 screwdriver.
• Inside the door, disconnect the latch electrical connector (power lock models) using a pick tool to help release the tab if tight.
• Disconnect the lock/handle rods or cables from the latch as applicable, using needle-nose pliers if needed (don’t bend rods).

Step 8: Remove the latch/actuator assembly

• Guide the latch/actuator assembly out through the access opening, using a flashlight to avoid snagging wiring.
• Compare the old and new latch/actuator assembly side-by-side to confirm the same connector and lever positions.

Step 9: Install the new latch/actuator assembly

• Slide the new latch/actuator into place and loosely start the door-edge screws by hand.
• Reconnect all rods/cables exactly as they were, using needle-nose pliers as needed.
• Reconnect the electrical connector (power lock models) and make sure it clicks fully into place.
• Tighten the latch mounting screws using a Torx T30 screwdriver, then use a torque wrench (inch-pound): Torque to 9 N·m (80 in-lb).

Step 10: Function-check before reassembly

• Reconnect the battery negative terminal using a 10mm socket.
• With the door still open, test lock/unlock (switch or key) and test the interior and exterior handles.
• Make sure the latch “catches” and releases properly by using a small flat-blade screwdriver to carefully rotate the latch claw (simulate the striker), then pull the handle to release.
• Don’t slam the door with the panel off.

Step 11: Reinstall the vapor barrier and door panel

• Re-stick the vapor barrier. If needed, apply butyl rope or door vapor barrier adhesive by hand.
• Reconnect all electrical connectors and reattach handle cable retainers.
• Hang the door panel on the top edge first, then press clips in around the perimeter with firm hand pressure.
• Reinstall screws using a Torx T20 screwdriver and Torx T30 screwdriver as removed.

Step 12: Final check

• Test: lock/unlock, inside handle, outside handle, and confirm the door locks/unlocks smoothly without hesitation.
• Verify the door panel is tight (no rattles) and all trim pieces sit flush.

---

✅ After Repair

• Cycle the locks 10+ times (lock/unlock) and confirm consistent operation.
• Close the door normally and confirm it latches on the first try.
• If you replaced clips, listen on a short drive for rattles and re-seat any loose clip areas by pressing the panel.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
