🔧 Outback - A/C Compressor Replacement

Replacing the A/C compressor means safely recovering the refrigerant, removing the drive belt and refrigerant lines, swapping the compressor (and seals), then pulling a deep vacuum and recharging to the exact factory amount. This job matters because opening the A/C system without proper recovery/recharge equipment can damage parts and is unsafe/illegal.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: R-134a system; final charge is per under-hood label.

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant can cause frostbite and eye injury; wear gloves and safety glasses.
• ⚠️ Do not vent refrigerant; recover it with approved equipment.
• ⚠️ Keep hands clear of the belt and pulleys; remove the key and keep it away.
• ⚠️ If you see metal glitter in oil/lines, stop; the system may need full flush and more parts.
• ⚠️ Battery disconnect is recommended before unplugging the compressor connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs)
• Extensions (3" and 6")
• Phillips screwdriver
• Trim clip removal tool
• Serpentine belt tool
• Line/flare-nut wrench set
• A/C manifold gauge set (R-134a)
• Refrigerant recovery machine (specialty)
• Vacuum pump (specialty)
• Electronic refrigerant scale (specialty)
• UV leak light (optional)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• PAG A/C compressor oil (vehicle-correct type) - Qty: 1
• R-134a refrigerant - Qty: 2-3 cans
• Serpentine drive belt - Qty: 1
• A/C receiver-drier or condenser with integrated drier - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully; you’ll be working near hot parts.
• Recover the refrigerant using a refrigerant recovery machine (specialty) before opening any A/C line.
• Disconnect the negative battery cable using a 10mm socket.
• Confirm the factory refrigerant charge amount on the under-hood A/C label; you must recharge by weight with a refrigerant scale (specialty).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect your A/C manifold gauge set (R-134a) to the high and low service ports.
• Use the refrigerant recovery machine (specialty) to recover the refrigerant until the machine indicates recovery is complete.
• Never loosen A/C lines before recovery.

Step 2: Raise the front and remove the lower covers

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the engine under cover/splash shield using a trim clip removal tool, Phillips screwdriver, and 10mm socket.

Step 3: Remove the drive belt

• Use a serpentine belt tool to rotate the belt tensioner and relieve tension.
• Slip the belt off the A/C compressor pulley and then remove it from the remaining pulleys.
• Snap a photo of belt routing first.

Step 4: Disconnect the compressor electrical connector

• Locate the compressor clutch/control connector at the compressor body.
• Press the tab and unplug it by hand; use a trim clip removal tool gently if stuck.

Step 5: Remove the A/C line manifold from the compressor

• Place rags under the connection.
• Use a 10mm socket or 12mm socket (varies by fitting) to remove the manifold retaining bolt(s).
• Carefully wiggle and pull the line manifold straight off the compressor.
• Immediately cap/cover the open lines to keep moisture out.

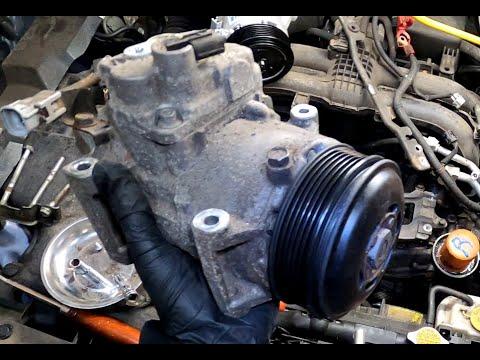

Step 6: Unbolt and remove the compressor

• Support the compressor with one hand.
• Use a 12mm socket and extensions (3" and 6") to remove the compressor mounting bolts.
• Remove the compressor from below the vehicle.
• Torque to 25 Nm (18 ft-lbs) when reinstalling compressor mounting bolts.

Step 7: Prepare the new compressor (oil and seals)

• Drain the shipping oil from the new compressor into a measuring container (rotate the hub by hand to help it drain).
• Add the same amount of fresh PAG A/C compressor oil (vehicle-correct type) back into the new compressor, unless the new unit is explicitly pre-filled to spec.
• Replace the line manifold O-rings with the new A/C compressor manifold O-ring set.
• Lightly lubricate O-rings with clean PAG oil (this helps sealing and prevents tearing).

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand to prevent cross-threading.
• Use a 12mm socket to snug them evenly.
• Final tighten using a torque wrench: Torque to 25 Nm (18 ft-lbs).

Step 9: Reinstall the A/C line manifold

• Carefully align the manifold and push it straight into the compressor until fully seated.
• Install the retaining bolt(s) using a 10mm socket or 12mm socket.
• Final tighten using a torque wrench: Torque to 9 Nm (80 in-lbs).
• Misaligned O-rings cause slow leaks.

Step 10: Reconnect the electrical connector

• Plug the connector back in until it clicks.

Step 11: Reinstall the drive belt

• Route the belt correctly over all pulleys.
• Use the serpentine belt tool to rotate the tensioner and slip the belt on.
• Visually confirm the belt ribs sit fully in every pulley groove.

Step 12: Reinstall splash shield and lower the vehicle

• Reinstall the under cover using a 10mm socket, Phillips screwdriver, and trim clip removal tool.
• Lower the vehicle off the jack stands using the floor jack.

Step 13: Evacuate the system (vacuum) and leak-check

• Connect the A/C manifold gauge set (R-134a) and a vacuum pump (specialty).
• Pull vacuum for 30–45 minutes.
• Close valves and confirm it holds vacuum for 10–15 minutes; if it rises, you still have a leak.

Step 14: Recharge by weight (not by pressure)

• Connect refrigerant to the manifold and place the can/tank on an electronic refrigerant scale (specialty).
• Add the exact amount listed on the under-hood A/C label (R-134a charge is vehicle-specific).
• Start the engine, set A/C to MAX, blower high, and continue charging as needed to reach the exact weight.
• Charging “until cold” can overcharge the system.

Step 15: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Verify the compressor engages and the center vents blow cold at idle.
• Inspect the compressor manifold area for oily residue (a common sign of a small leak).
• Listen for belt squeal or grinding; recheck belt alignment if you hear noise.
• If you replaced the receiver-drier, run A/C for 10–15 minutes and recheck vent temps.
• If A/C performance is weak, recover and recharge again by weight; charge accuracy matters most.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $850-$1,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
