🔧 Q50 - Starter Motor Replacement

The starter motor spins the engine so it can start. If it’s failing, you may get a single click, slow cranking, or no crank at all. This job is mostly about safe access, removing a few electrical connections, and swapping the starter on the transmission bellhousing.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: stock 2.0T layout; typical fasteners used on this setup.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative cable first to prevent a short on the starter’s main power wire.
• ⚠️ Support the car with jack stands; never work under a car held only by a jack.
• ⚠️ Let the engine/exhaust cool; the starter sits near hot components.
• ⚠️ Keep keys/fob away from the car while working so modules stay asleep.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 13mm socket
• External Torx E12 socket
• 3/8" ratchet
• 6" socket extension
• 12" socket extension
• Swivel joint adapter
• Torque wrench (10–100 ft-lbs range)
• Trim clip removal tool
• Flathead screwdriver
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut assortment - Qty: 1
• Undertray fastener/clip set - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks at the rear wheels.
• Open the trunk and access the battery area. Wait 2–3 minutes with the car off so modules go to sleep.
• Disconnect the battery negative terminal using a 10mm socket and tuck the cable aside so it can’t spring back.
• Tip: Take a quick photo of each connector first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the car

• Use a floor jack (rated 3-ton minimum) to lift the front of the car at the front center jacking point.
• Set the car onto jack stands (rated 3-ton minimum) placed at the proper front support points.
• Give the car a gentle push to confirm it’s stable before going underneath.

Step 2: Remove the engine undertray (splash shield)

• Use a trim clip removal tool and flathead screwdriver to remove the plastic clips.
• Use a 10mm socket to remove any undertray bolts.
• Lower the undertray and set it aside.

Step 3: Locate the starter motor

• Use a work light and look where the engine meets the transmission (bellhousing area).
• The starter is a small motor with a thicker power cable and a smaller trigger wire going to it.

Step 4: Disconnect the starter electrical connections

• Remove the small starter trigger wire connector by hand; if it’s tight, gently help it with a flathead screwdriver.
• Remove the rubber boot covering the main power stud.
• Use a 13mm socket to remove the nut holding the main battery cable to the starter.
• Move the cable aside so it cannot touch metal.
• Tip: Keep the nut with the cable, not on the ground.

Step 5: Remove the starter mounting bolts

• Use an External Torx E12 socket, 3/8" ratchet, and a 6" or 12" extension to remove the starter mounting bolts.
• If the angle is awkward, use a swivel joint adapter to help line up the tool.
• Support the starter with one hand while removing the last bolt so it doesn’t drop.

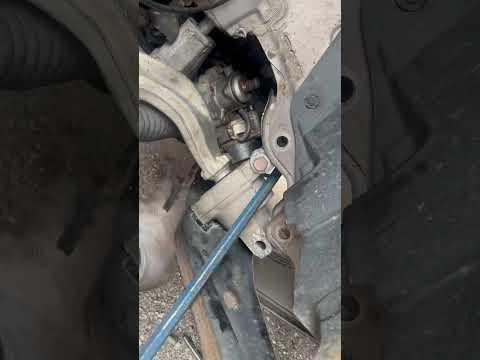

Step 6: Remove the starter from the bellhousing

• Wiggle the starter free and lower it out carefully.
• Compare the old and new starters (mounting ears, electrical studs, and connector style) before installing.

Step 7: Install the new starter

• Position the new starter into place by hand.
• Start both mounting bolts by hand first (this prevents cross-threading).
• Tighten the mounting bolts with an External Torx E12 socket.
• Torque to 45 Nm (33 ft-lbs) on the starter mounting bolts.

Step 8: Reconnect the starter wiring

• Apply a very small amount of dielectric grease to the trigger-wire connector seal.
• Install the main battery cable onto the starter power stud.
• Install the nut using a 13mm socket and torque wrench.
• Torque to 12 Nm (9 ft-lbs) on the main power terminal nut.
• Reinstall the rubber boot over the power stud.
• Push the trigger-wire connector on until it clicks/fully seats.

Step 9: Reinstall the undertray and lower the car

• Reinstall the undertray using a 10mm socket and the clips with a trim clip removal tool as needed.
• Use the floor jack (rated 3-ton minimum) to lift slightly, remove the jack stands (rated 3-ton minimum), then lower the car.

Step 10: Reconnect the battery

• Reconnect the negative terminal at the battery using a 10mm socket.
• Torque to 6 Nm (53 in-lbs) on the battery terminal clamp.

---

✅ After Repair

• Start the engine and confirm it cranks strongly and starts normally.
• Listen for abnormal grinding; if heard, shut off and recheck starter seating and bolt tightness.
• With the engine running, check that no warning lights appear related to low voltage.
• Recheck underneath for any loose wiring near the starter and make sure the rubber boot covers the power stud.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $470-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
