F-150 - Front & Rear Shock Absorber Replacement 🚚

Got it—you want to replace the shocks on your F-150. I’ll walk you through a safe, beginner-friendly way.

Quick check first: Are you planning to replace all 4 shocks (front and rear), or just the rear? This guide will cover both, but tell me if you want to do rear only to simplify.

Safety & Prep ⚠️

• 🧯 Work on level ground and set the parking brake. Chock (block) the wheels that stay on the ground.
• 🦺 Never rely on a jack alone. Always support the truck with jack stands. A jack stand is a metal support that holds the vehicle safely after lifting.
• 🧤 Wear eye protection and gloves. Rust and dirt will fall when you remove bolts.

Parts You Need 📦

• 🔧 Front shocks (2) – for 2016 F-150 4WD, non-CCD (no fancy adaptive suspension). These are strut-style front shocks (coil spring over shock).
• 🔧 Rear shocks (2).
• 🔩 New mounting nuts/bolts if your shock brand includes them (recommended if old hardware is rusty).

Tip: Always replace shocks in pairs on the same axle (both fronts together, both rears together).

Tools Required 🛠️

• 🛞 Floor jack (2–3 ton) – hydraulic jack to lift the truck.
• 🪜 Jack stands (at least 2, rated for trucks).
• 🔧 Socket set (metric):
  • Common sizes for this truck: 15mm, 18mm, 21mm sockets.
  • 1/2" drive ratchet and/or breaker bar (long handle for stuck bolts).
• 🔩 Combination wrenches (15mm–21mm).
• 🔨 Pry bar – metal bar to help move suspension slightly if needed.
• 🧴 Penetrating oil (like WD-40) – helps loosen rusty bolts.
• 📏 Torque wrench – tool that tightens bolts to a specific torque (force).

Torque Specs (Approx. OEM) 📏

• 🧷 Front shock (strut) upper nuts: ~ 30 lb-ft (40 Nm)
• 🧷 Front shock lower bolt: ~ 350 lb-ft (475 Nm) (very tight – use big breaker bar)
• 🧷 Rear shock upper bolt: ~ 66 lb-ft (90 Nm)
• 🧷 Rear shock lower bolt: ~ 66 lb-ft (90 Nm)

Note: Values vary slightly by build; these are typical for your F-150 4WD. Tighten to spec with a torque wrench whenever possible.

Rear Shock Replacement Steps (Easier – Start Here) 🔁

1. Lift and Support Rear

• 🧱 Loosen rear wheel lug nuts ¼ turn while the truck is on the ground.
• 🛞 Place the floor jack under the rear axle tube (near the shock you’re working on) and lift until the wheel is just off the ground.
• 🪜 Place jack stands under the frame rails in front of the rear wheels. Lower the truck onto the stands.
• 🛠️ Remove the rear wheel for better access (optional but recommended).

2. Remove Old Rear Shock

• 🧴 Spray penetrating oil on the upper and lower shock bolts. Let it soak a few minutes.
• 🔧 Support the shock body with one hand or a small jack (so it doesn’t drop suddenly).
• 🔧 Use a socket and wrench to remove the lower bolt/nut at the axle.
• 🔧 Remove the upper bolt/nut at the frame mount.
• 🗑️ Pull the shock out. You may need to push or pull slightly to free it.

3. Install New Rear Shock

• 📐 Make sure the new shock is oriented correctly (check “top”/“bottom” markings if present).
• 🔧 Position the upper eye of the shock in the frame bracket. Install the bolt and nut finger tight only.
• 🔧 Compress the shock slightly by hand if needed and slide the lower eye into the axle bracket. Install the lower bolt and nut finger tight.
• 🛞 Use the floor jack under the axle to raise it slightly until the truck’s weight is partially on the suspension. This sets the shock at normal ride height.
• 📏 Torque:
  • Rear upper bolt: ~66 lb-ft (90 Nm)
  • Rear lower bolt: ~66 lb-ft (90 Nm)
• 🔁 Repeat on the other rear side.

4. Reinstall Wheels & Lower

• 🛞 Reinstall wheels and snug lug nuts.
• 🪜 Raise truck slightly, remove jack stands, and lower to ground.
• 📏 Torque lug nuts in a star pattern to about 150 lb-ft (typical for F-150 aluminum wheels).

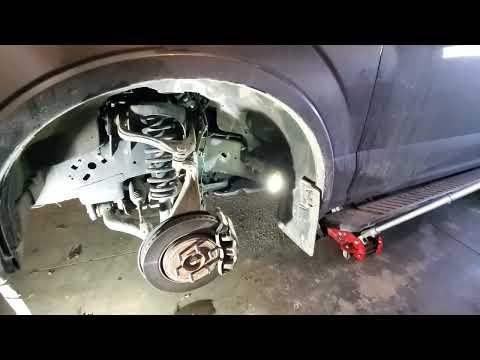

Front Shock (Strut) Replacement Steps 🧱

The front of your 4WD uses a coil-over strut. We are replacing the whole assembly (recommended for beginners) if your new parts are complete units. If your new shocks are bare and require spring transfer, that needs a spring compressor and is more advanced.

Tell me if your new front shocks are complete assemblies or just bare shocks, and I can adjust steps. Below assumes complete assemblies.

1. Lift and Support Front

• 🧱 Loosen front lug nuts ¼ turn on both sides.
• 🛞 Jack under the front crossmember and lift until both front wheels are off the ground.
• 🪜 Place jack stands under the frame rails behind the front wheels. Lower truck onto stands.
• 🛠️ Remove both front wheels.

2. Access Front Strut

• 🧴 Spray penetrating oil on:
  • Lower strut bolt/nut at the lower control arm.
  • Upper strut nuts at the top of the strut tower (under hood).
• 🧷 Under the hood, locate the three small nuts at the top of the strut tower (do not loosen the big center nut).

3. Disconnect Lower Strut Mount

• 🔧 At the lower control arm, remove the large lower strut bolt/nut (21mm typically). You may need a breaker bar.
• 🪛 You might need to gently pry the lower control arm down a bit to free the strut bottom from its seat.

4. Remove Upper Mount Nuts

• 🔧 Under the hood, remove the three upper strut nuts (usually 15mm). Leave one nut threaded a few turns until you’re ready to support the strut.
• 🧤 Support the strut from below with one hand, then remove the last nut and lower the strut out of the wheel well.

5. Install New Front Strut

• 📐 Position the new strut in the wheel well and line up the studs with the holes in the strut tower.
• 🔧 From under the hood, install the three upper nuts finger tight to hold it in place.
• 🔧 Align the lower strut mount with the lower control arm seat. You may need to:
  • Use a jack under the lower control arm to raise it slightly.
  • Use a pry bar gently to line up the holes.
• 🔩 Install the lower bolt and nut finger tight.

6. Torque Front Fasteners

• 📏 With the lower control arm supported by a jack (simulating normal ride height):
  • Upper strut nuts: ~30 lb-ft (40 Nm)
  • Lower strut bolt: ~350 lb-ft (475 Nm) – this is very tight; use a long breaker bar and torque wrench rated high enough.
• 🛞 Reinstall front wheels and torque lug nuts to about 150 lb-ft.

After You’re Done 🚗

• 🧪 Take a short, gentle test drive. Listen for clunks or rattles (sign of loose bolts).
• 📐 After front shock/strut replacement, it’s strongly recommended to get a wheel alignment so your tires wear evenly and the truck tracks straight.

Infotainment / Settings (Nothing Special Here) 📺

No special infotainment or scan-tool steps are required for shock replacement on your F-150. Just clear any suspension-related reminders you may have set manually.

Wrap-Up & Parts Help 🧰

If you tell me:

• 🧩 Whether your front replacements are complete strut assemblies or bare shocks, and
• 🛞 Whether you want to do rear only or front + rear,

I can tighten this guide even more and call out exact part styles (heavy-duty, towing, comfort, etc.).
