🔧 Wrangler - Shock Absorber Replacement

Replacing the shocks restores ride control (less bouncing, better steering feel, improved braking stability). On your Wrangler, each corner has one shock that bolts between the axle and the frame.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Stock suspension/ride height; torque values listed are commonly published for JK—verify with a service manual if you want exact OEM confirmation.

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and chock the wheels before lifting.
• 🛑 Support the Wrangler on jack stands under the frame; do not rely on the floor jack.
• 🛑 Support the axle with a floor jack so it doesn’t drop when shocks are removed.
• 🛑 Wear eye protection—rust and debris fall from the shock mounts.
• 🛑 Let the exhaust cool before working near the rear shocks.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• 13mm socket
• 15mm socket
• 16mm socket
• 18mm socket
• Ratchet (3/8" drive)
• Breaker bar (1/2" drive)
• Torque wrench (20-250 ft-lbs range)
• Combination wrench set (13mm-18mm)
• Pry bar
• Penetrating oil
• Wire brush
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front shock absorbers - Replace in pairs - Qty: 2
• Rear shock absorbers - Replace in pairs - Qty: 2
• Shock mounting hardware kit - Optional but recommended if rusty - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Chock the wheels that will stay on the ground.
• Use a wire brush (cleans rust) and penetrating oil on all shock fasteners 10–15 minutes before removal.
• Plan to do one axle at a time (front pair, then rear pair) so the Jeep stays stable.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts

• Use a 19mm socket and breaker bar to crack the lug nuts loose 1/2 turn (do not remove yet).

Step 2: Lift and support the front

• Lift the front with a floor jack (rated 3-ton minimum) under the front axle center section.
• Set jack stands (rated 3-ton minimum) under the frame rails and lower the Jeep onto them.
• Keep the floor jack (rated 3-ton minimum) lightly supporting the front axle.

Step 3: Remove the front wheels

• Use a 19mm socket and ratchet (3/8" drive) to remove the lug nuts, then remove both front wheels.

Step 4: Remove the front shocks

• At the bottom of the shock, use an 18mm socket and ratchet (3/8" drive) (and a combination wrench set (13mm-18mm) if the bolt spins) to remove the lower mounting bolt.
• At the top mount inside the coil spring area, remove the upper fastener(s) using the appropriate 15mm socket or 16mm socket (hardware varies by shock design).
• If the shock is stuck in the mount, use a pry bar gently to pop it free. Don’t pry on brake lines.

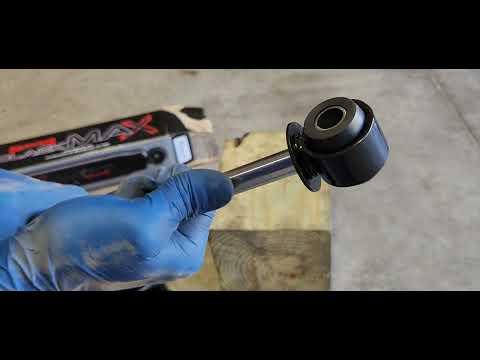

Step 5: Install the new front shocks

• Position the new shock in place by hand.
• Start the upper fastener(s) by hand first, then the lower bolt.
• Tighten fasteners with a ratchet (3/8" drive), then final-tighten with a torque wrench (20-250 ft-lbs range):
• Front lower shock bolt: Torque to 102 Nm (75 ft-lbs)
• Front upper shock fastener: Torque to 27 Nm (20 ft-lbs)
• Hand-starting bolts prevents cross-threading.

Step 6: Reinstall the front wheels and lower the front

• Reinstall wheels and hand-thread lug nuts.
• Lower the Jeep off the stands using the floor jack (rated 3-ton minimum).
• Torque lug nuts in a star pattern using a torque wrench (20-250 ft-lbs range): Torque to 129 Nm (95 ft-lbs)

Step 7: Lift and support the rear

• Chock the front wheels with wheel chocks.
• Lift the rear with a floor jack (rated 3-ton minimum) under the rear axle center section.
• Place jack stands (rated 3-ton minimum) under the frame rails and lower the Jeep onto them.
• Keep the floor jack (rated 3-ton minimum) lightly supporting the rear axle.

Step 8: Remove the rear wheels

• Use a 19mm socket and ratchet (3/8" drive) to remove lug nuts, then remove both rear wheels.

Step 9: Remove the rear shocks

• At the bottom mount, use an 18mm socket and breaker bar (1/2" drive) to remove the lower mounting bolt (use a combination wrench set (13mm-18mm) if needed to hold the nut).
• At the upper mount (frame), remove the two upper bolts using a 13mm socket and ratchet (3/8" drive).
• Pull the shock out. If it’s tight, use a pry bar carefully.

Step 10: Install the new rear shocks

• Position the new shock and start the upper bolts by hand first.
• Install the lower bolt and snug everything with a ratchet (3/8" drive).
• Final-tighten with a torque wrench (20-250 ft-lbs range):
• Rear upper shock bolts: Torque to 31 Nm (23 ft-lbs)
• Rear lower shock bolt: Torque to 76 Nm (56 ft-lbs)

Step 11: Reinstall the rear wheels and lower the rear

• Reinstall wheels and hand-thread lug nuts.
• Lower the Jeep off the stands using the floor jack (rated 3-ton minimum).
• Torque lug nuts in a star pattern using a torque wrench (20-250 ft-lbs range): Torque to 129 Nm (95 ft-lbs)

---

✅ After Repair

• ✅ Do a short, slow test drive. Listen for clunks over bumps.
• ✅ Re-check that all shock bolts are tight after the test drive.
• ✅ If the steering wheel feels off-center or the Jeep wanders, schedule an alignment check (especially if ride height changed).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $180-$600 (parts only)

You Save: $270-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
